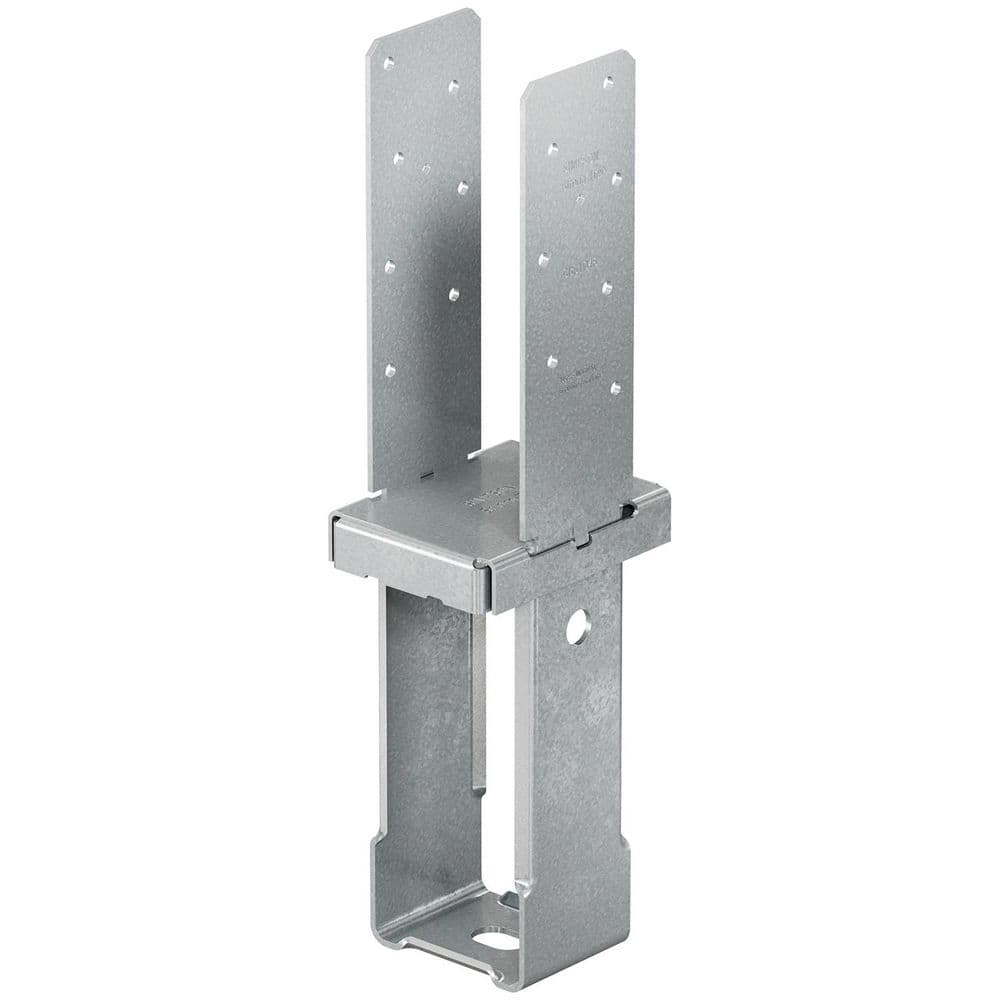

Simpson 4X6 Column Base Standoff HDG With Screws CBSTQ46-SDS2HDG

Mfr.: Simpson Strong-Tie
Item #: I090983
Mfr. #: CBSTQ46-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $94.02
i h h

Description

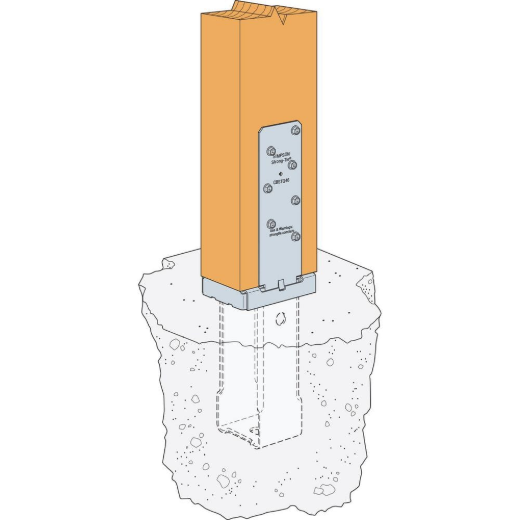

The Simpson Strong-Tie CBSTQ46-SDS2HDG is a heavy-duty, cast-in-place column base designed to provide a secure and stable connection for 4x6 wood posts to concrete foundations. Engineered for both residential and light commercial applications, it features S-shaped bearing tabs that significantly increase load capacity and download strength compared to previous models. This base includes a code-required 1-inch standoff to protect the wood post from moisture-related decay, ensuring long-term structural integrity in exterior environments.
  • Hot-Dip Galvanized (HDG)
  • 1-inch Standoff Height

Features

  • S-shaped bearing tabs provide increased strength for higher download capacity.
  • High-quality hot-dip galvanized finish offers superior corrosion resistance.

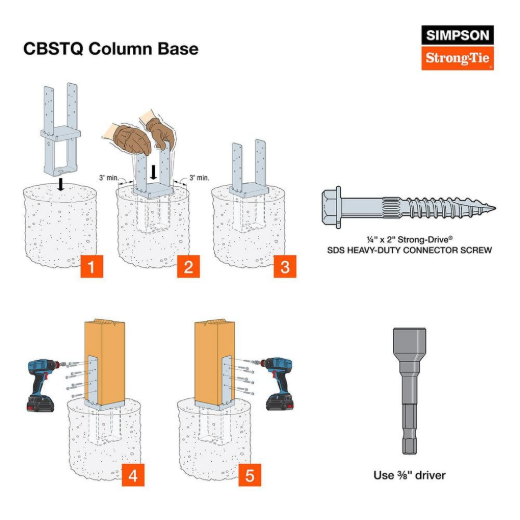

  • Includes Strong-Drive SDS Heavy-Duty Connector screws for faster installation.
  • Specifically designed to replace the earlier CBSQ series with improved load stats.

Includes

  • 1 x CBSTQ46-SDS2HDG Column Base
  • 14 x 1/4 inch x 2 inch Strong-Drive SDS Connector Screws
Products specifications
Model Number CBSTQ46-SDS2HDG
Nominal Post Size 4x6
Material Finish Hot-Dip Galvanized
Material Type Carbon Steel
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Height 8-11/16 inch
Depth 7-13/16 inch
Width (W1) 3-9/16 inch
Width (W2) 5-5/16 inch
Fasteners Required (14) 1/4 inch x 2 inch SDS Screws
Standoff Height 1 inch
*
*
*
