Simpson 4x6 Column Base Standoff Hdg W/Screws

Mfr.: Simpson Strong-Tie
Item #: I090968
Mfr. #: CBSQ46-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $83.95
i h h

Description

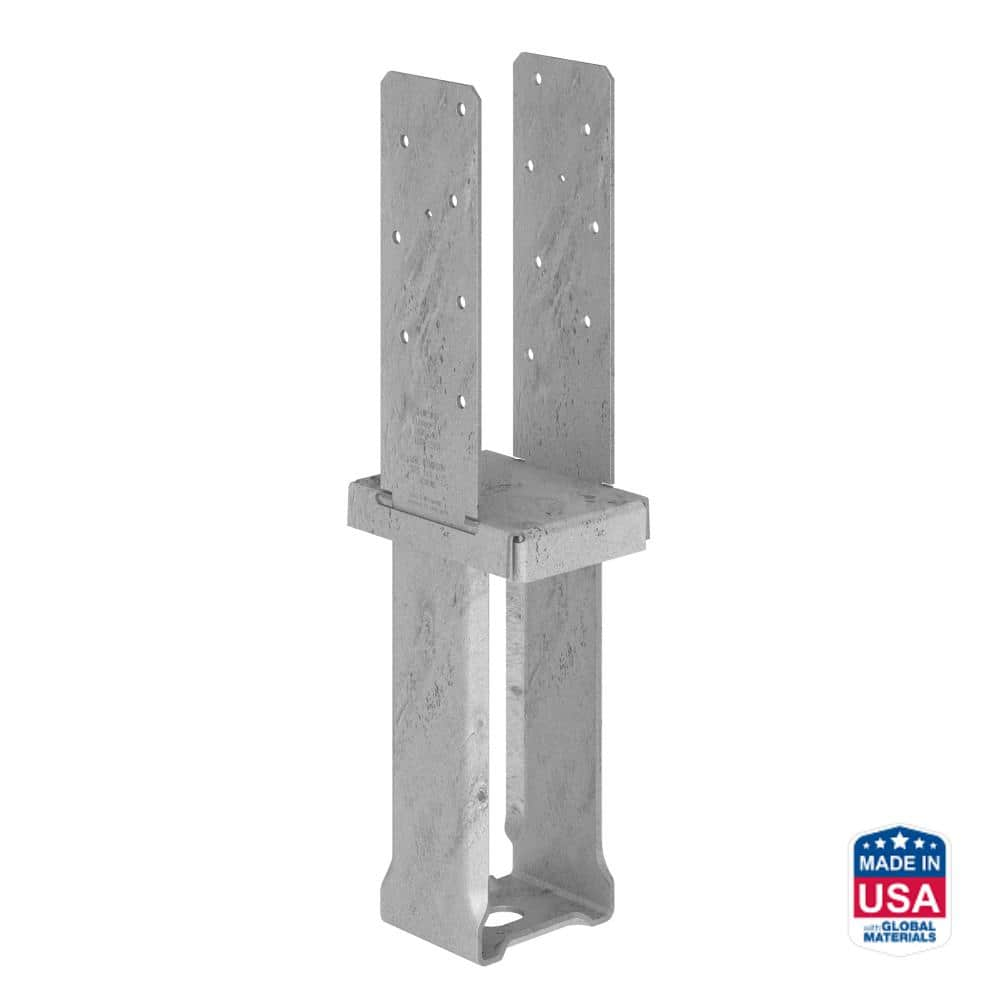

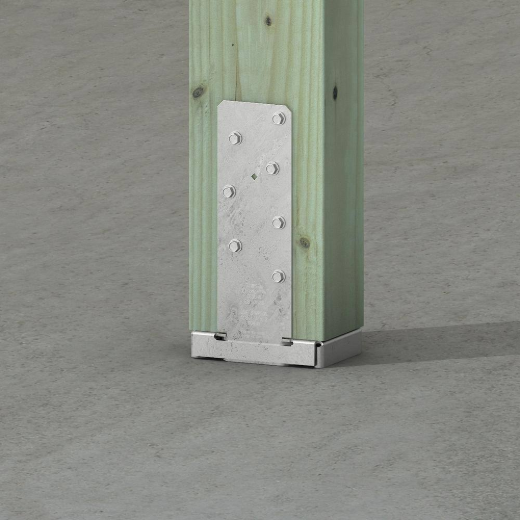

The Simpson Strong-Tie CBSQ46-SDS2HDG is a heavy-duty column base designed to connect 4x6 wood posts to concrete foundations while providing a critical 1-inch standoff to prevent post-end decay. This high-capacity connector uses Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a greater wood net section area than traditional bolting. The hot-dip galvanized finish ensures maximum corrosion resistance for exterior applications or pressure-treated lumber. Note: This model has been discontinued and replaced by the CBSTQ46-SDS2HDG series.
  • 1 inch Standoff Height
  • Hot-Dip Galvanized Coating

Features

  • Meets building code requirements for structural posts exposed to weather or water splash.

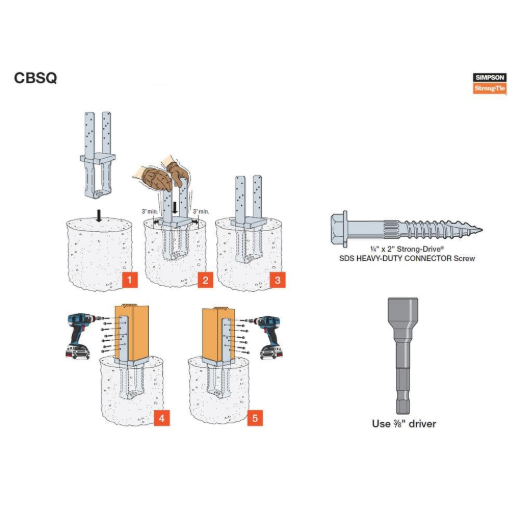

  • Includes high-strength SDS screws that allow for reduced reveal and faster install times.
  • Constructed from heavy 12-gauge steel for long-lasting structural integrity.
  • Designed for top-supported structures such as decks and patio covers.

Includes

  • (1) CBSQ46-SDS2HDG Column Base
  • (14) SDS 1/4 inch x 2 inch HDG Screws
Products specifications
Model Number CBSQ46-SDS2HDG
Nominal Post Size 4x6
Material 12-Gauge Steel
Finish Hot-Dip Galvanized
Standoff Height 1 inch
Base Width 3.56 inches
Overall Height 8.69 inches
Strap Gauge 10 Gauge
Fasteners Required (14) 1/4 inch x 2 inch SDS Screws
Successor Model CBSTQ46-SDS2HDG
*
*
*
