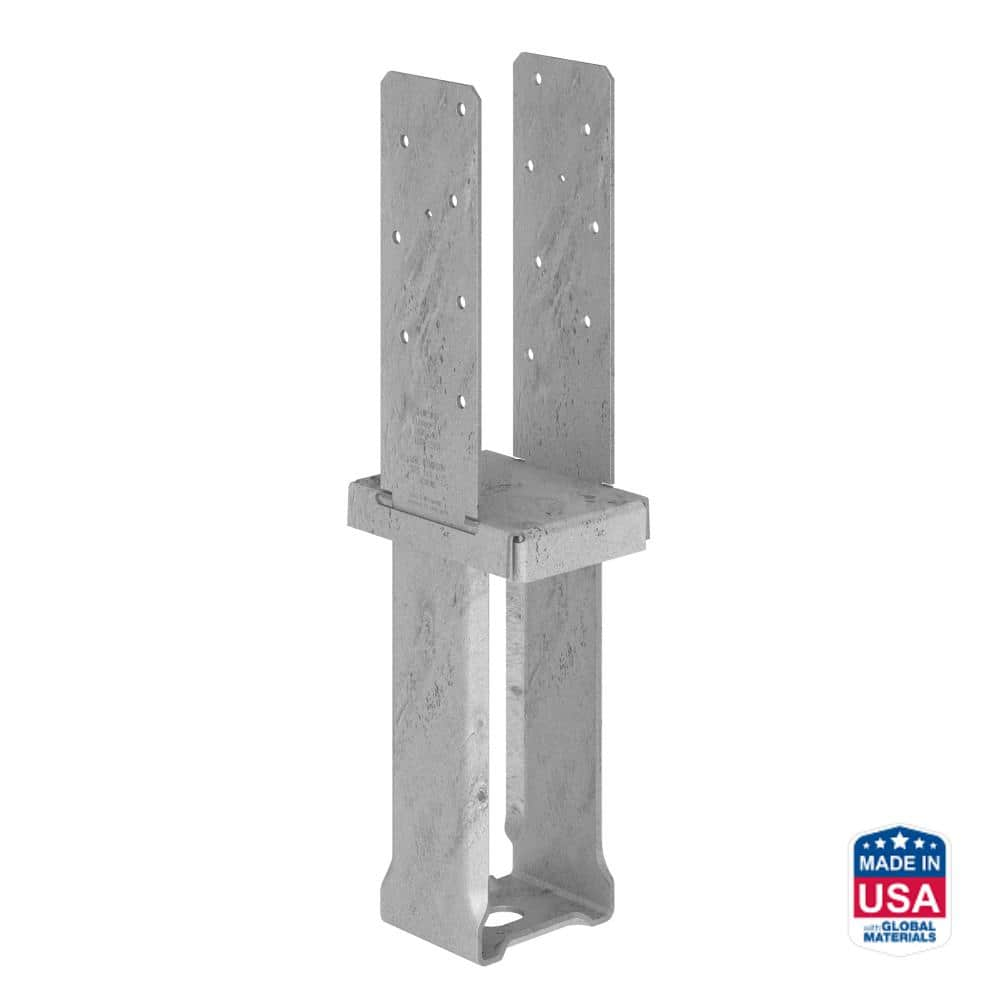

Simpson CBSQ - 4" x 6" Column Base Standoff with Screws

Mfr.: Simpson Strong-Tie
Item #: I090967
Mfr. #: CBSQ46-SDS2
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $56.99
i h h

Description

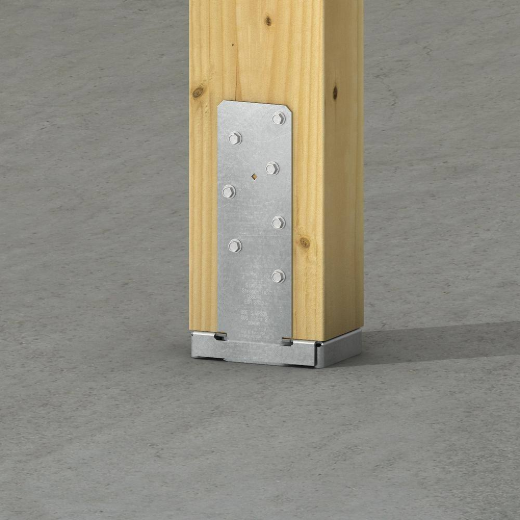

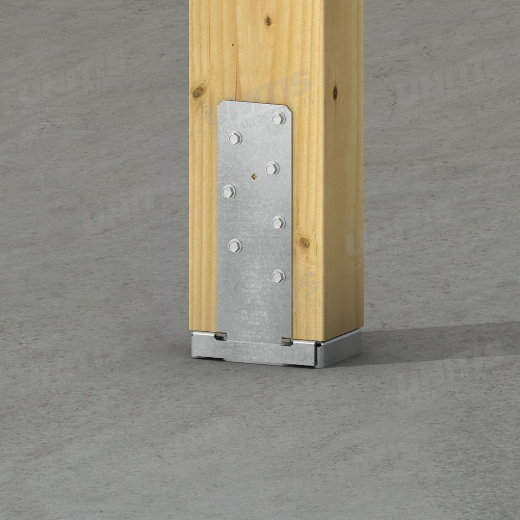

The Simpson Strong-Tie CBSQ46-SDS2 is a heavy-duty column base designed to connect 4x6 wood posts to concrete foundations while providing a critical 1-inch standoff. This standoff prevents moisture from wicking into the wood, significantly reducing the potential for decay and ensuring compliance with modern building codes. By utilizing Strong-Drive SDS screws instead of traditional bolts, this connector offers a faster installation process and a larger net section area for the column. Note: This model has been discontinued by the manufacturer and replaced by the CBSTQ series, though it remains a standard for existing high-capacity structural connections.
  • G90 Galvanized Coating
  • 1-Inch Standoff Base

Features

  • Uses Strong-Drive SDS screws for high-capacity strength and reduced reveal compared to bolts.

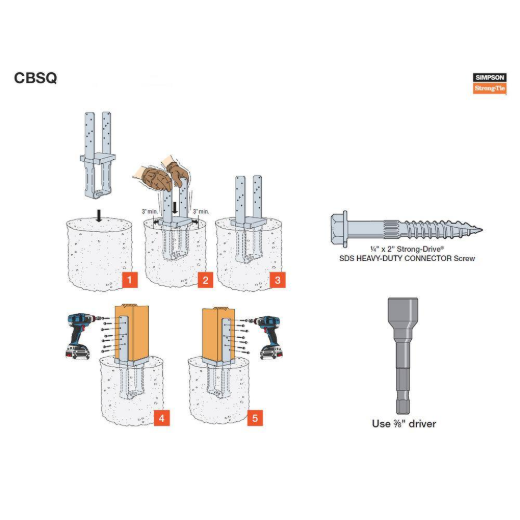

  • Designed for embedment in wet concrete at the time of pour to create a permanent structural link.
  • Constructed from heavy-gauge steel with a 12-gauge base and 10-gauge straps for maximum durability.
  • Shipped with the base plate pre-assembled to streamline jobsite productivity.

Includes

  • (1) CBSQ46-SDS2 Column Base
  • (1) Set of 1/4 inch x 2 inch Strong-Drive SDS Screws
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-3050
Connector Type Column Base
Country of Origin Varies (subject to change)
Finish / Coating Galvanized (G90)
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x6
Series CBSQ
*
*
*
