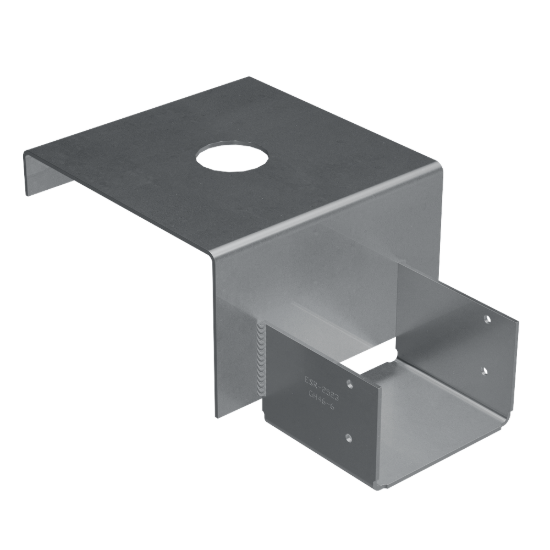

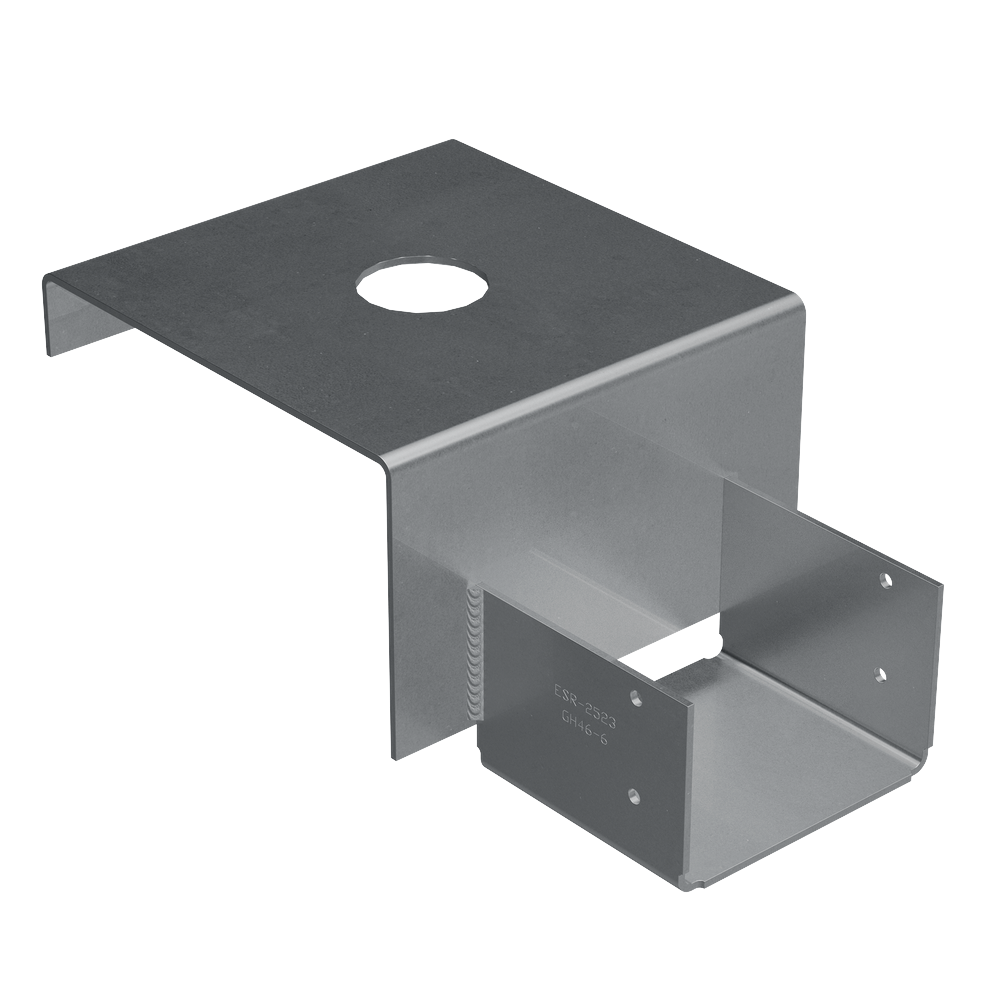

Simpson GH Top-Flange Hanger for 4x6 Girder, 6-" Foundation Wall

Mfr.: Simpson Strong-Tie
Item #: I091169
Mfr. #: GH46-6
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $90.08
i h h

Description

Masonry and concrete connectors create strong wood-to-masonry and wood-to-concrete connections. The Simpson Strong-Tie selection of masonry hangers come in a variety of sizes and strengths to meet most design needs. Many solutions employ Simpson Strong-Tie fasteners to make the connection complete. The GH hanger series provides a girder-to-foundation wall connection.
  • Connects nominal 4x6 girder to 6-in. wide foundation wall with 2x sill plate
  • A 2x mudsill on top of the hanger is required to achieve published table loads
  • Girder-seat width: 3-9/16 in.
  • Saddle width: 6-1/16 in.
  • 1-1/2 in. clearance hole accommodates rebar or anchor
  • Made from 12-gauge steel

Features

  • Connects nominal 4x6 girder to 6-in. wide foundation wall with 2x sill plate
  • A 2x mudsill on top of the hanger is required to achieve published table loads
  • Girder-seat width: 3-9/16 in.
  • Saddle width: 6-1/16 in.
  • 1-1/2 in. clearance hole accommodates rebar or anchor
  • Made from 12-gauge steel

Specifications


Girder-seat width3-9/16 inchSaddle width6-1/16 inch
Clearance hole diameter1-1/2 inchMaterial12-gauge steel
*
*
*
