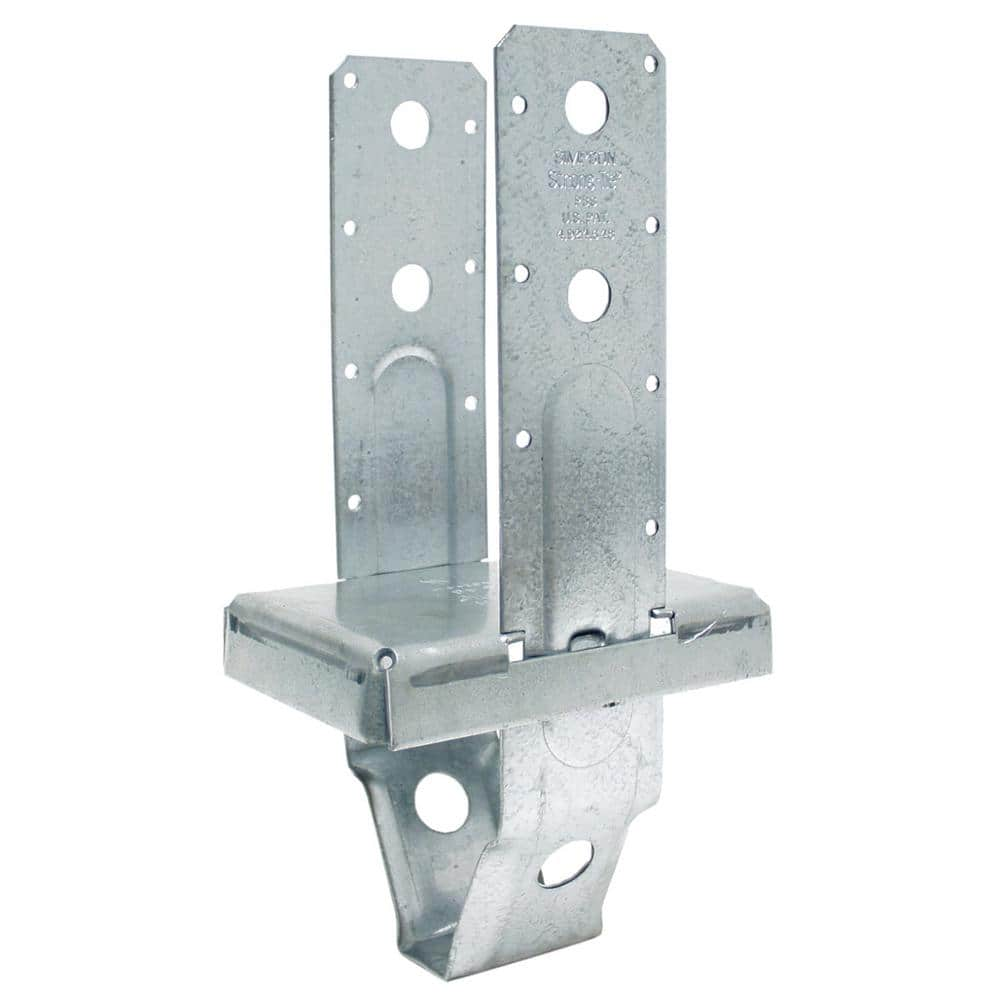

Simpson PBS - 4" x 6" Post Base Standoff HDG

Mfr.: Simpson Strong-Tie
Item #: I091032
Mfr. #: PBS46HDG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $36.34
i h h

Description

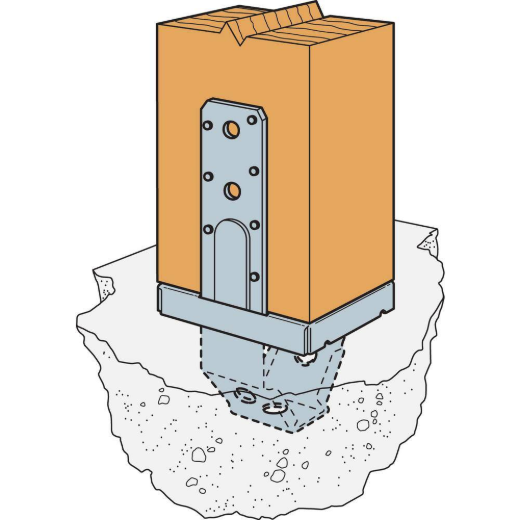

The Simpson Strong-Tie PBS46HDG is a high-performance post base designed to provide a structural connection between 4x6 wood posts and concrete foundations. Featuring a 1-inch standoff, it effectively elevates the post above the concrete surface to meet building codes and prevent moisture-induced decay. Note: This specific model has been largely succeeded by the PBST46Z series, which offers similar benefits with a ZMAX finish.
  • Hot-Dip Galvanized (HDG) finish for superior corrosion protection.
  • Built-in 1 inch standoff to prevent post-end rot and decay.

Features

  • Cast-in-place design specifically for installation in wet concrete.
  • Constructed from durable 12-gauge steel for high-strength load capacity.

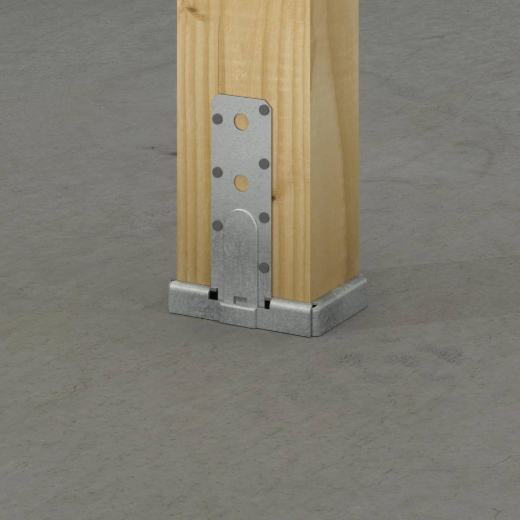

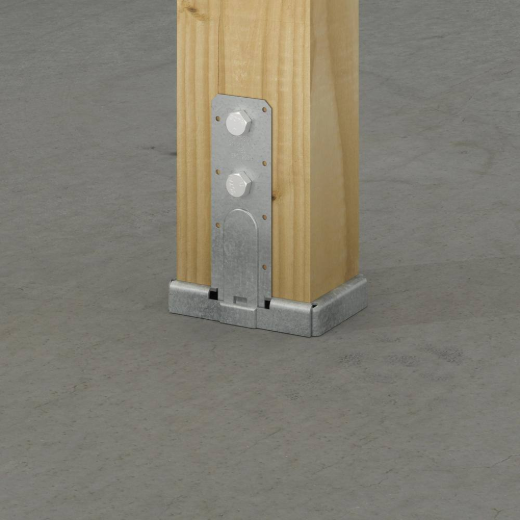

  • Versatile fastening options using either 16d common nails or 1/2-inch bolts.

Includes

  • One (1) PBS46HDG Post Base
Products specifications
Adjustability Fixed
Code Listing ICC-ES ESR-1622
Connector Type Post Base
Country of Origin Varies (subject to change)
Finish / Coating Hot-Dip Galvanized
Manufacturer's Warranty Limited Lifetime
Material Carbon Steel
Post / Member Size 4x6
Series PBS
*
*
*
