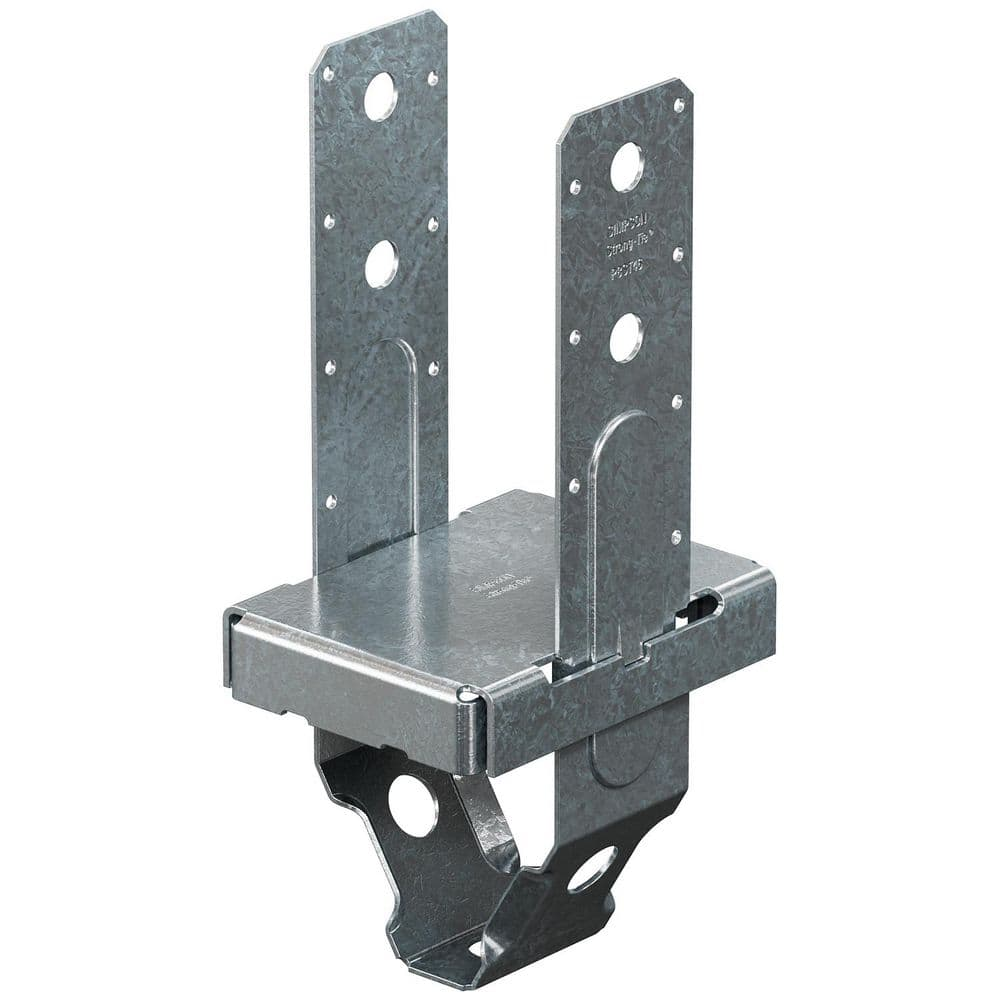

Simpson 4X6 Post Base Standoff

Mfr.: Simpson Strong-Tie
Item #: I091036
Mfr. #: PBST46Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $32.40
i h h

Description

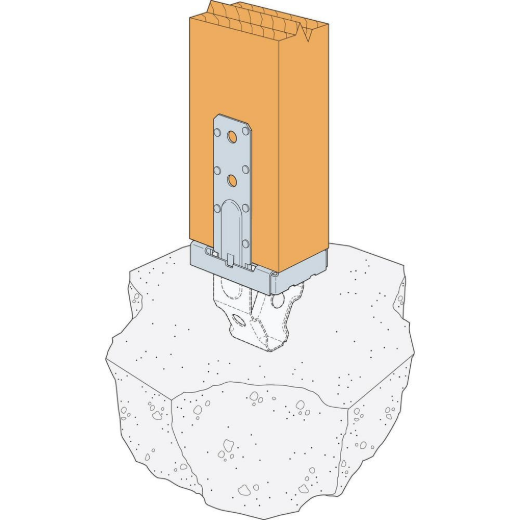

The Simpson PBST46Z is a cast-in-place post base designed to provide a strong, reliable connection between 4x6 wood posts and concrete foundations. It is an ideal solution for outdoor structures such as decks, patio covers, and porches, delivering high allowable loads and exceptional durability. This model belongs to the PBST series and serves as a replacement for the older PBS series, offering improved functionality while meeting structural building code requirements. The base features a 1-inch standoff to protect the post from moisture-induced rot and ensure long-term structural integrity.
  • ZMAX galvanized coating for superior corrosion resistance in outdoor and treated-wood applications.
  • S-shaped stiffening tabs to enhance load-bearing performance and increase download capacity.

Features

  • Maintains a 1-inch standoff between the post and concrete to prevent decay and meet code.
  • Designed for flush installation in wet concrete with a shallow embedment depth.
  • Compatible with nails, bolts, or Strong-Drive SD Connector screws for installation flexibility.
  • Embossed vertical straps provide increased overall strength and stability for the connection.

Includes

  • PBST46Z Post Base
Products specifications
Model No. PBST46Z
Nominal Post Size 4x6
Base Gauge 12-Gauge Steel
Strap Gauge 14-Gauge Steel
Finish ZMAX Galvanized
Standoff Height 1 inch
Width (W1) 3-9/16 inch
Width (W2) 5-7/16 inch
Height (H) 6-9/16 inch
Depth (D) 3-3/8 inch
Nail Fasteners (14) 0.162 inch x 3-1/2 inch
Bolt Fasteners (2) 1/2 inch diameter
*
*
*
