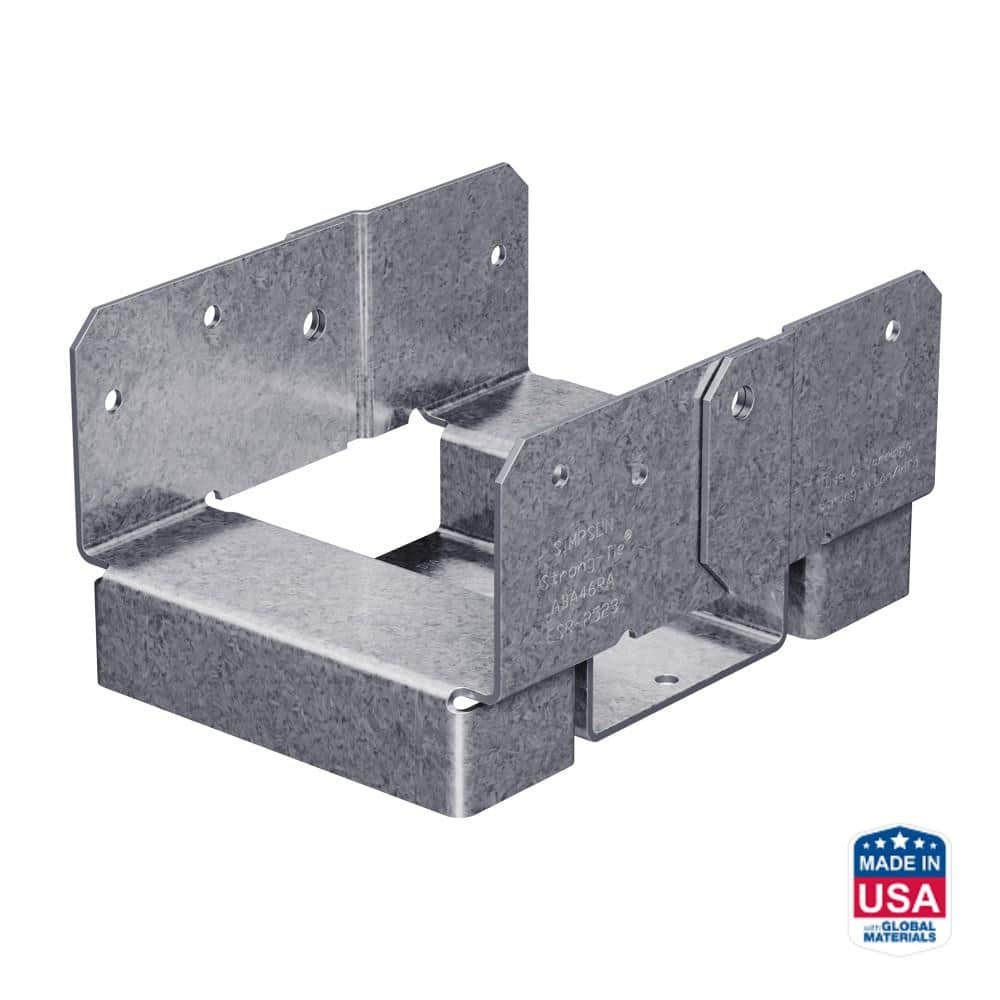

Simpson 4X6 Rough Adjustable Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090883
Mfr. #: ABA46RZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $27.98
i h h

Description

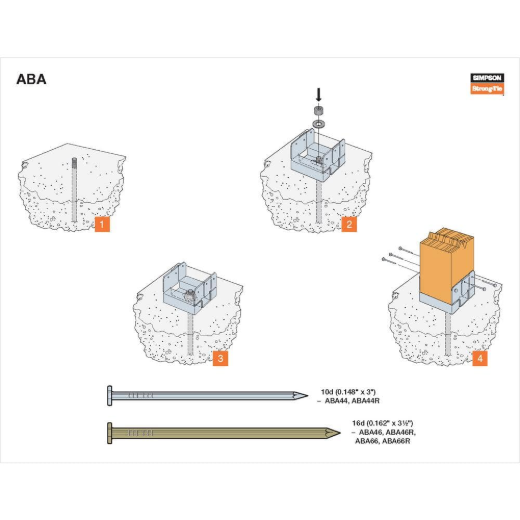

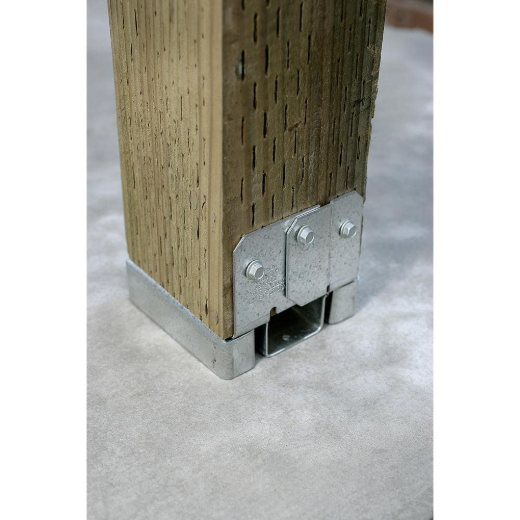

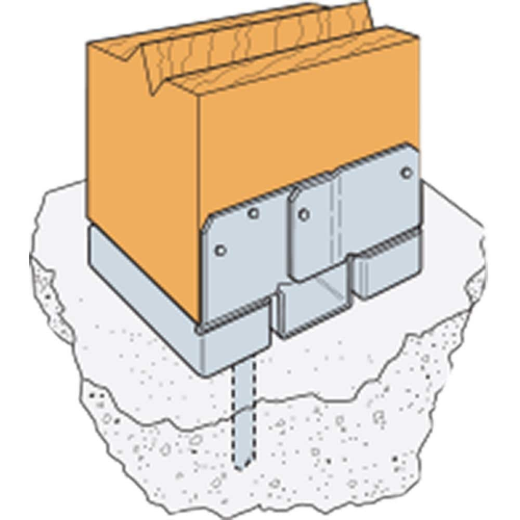

The Simpson Strong-Tie ABA46RZ is an adjustable standoff post base specifically designed to secure rough-cut 4x6 wooden posts to existing concrete foundations. It features an engineered 1-inch standoff that keeps the post elevated, meeting building codes and preventing rot caused by moisture at the post end. The slotted anchor hole allows for flexible placement and easy alignment even after the anchor bolt has been set in concrete. This versatile connector is ideal for decks, patio covers, and other outdoor structures requiring reliable uplift resistance.

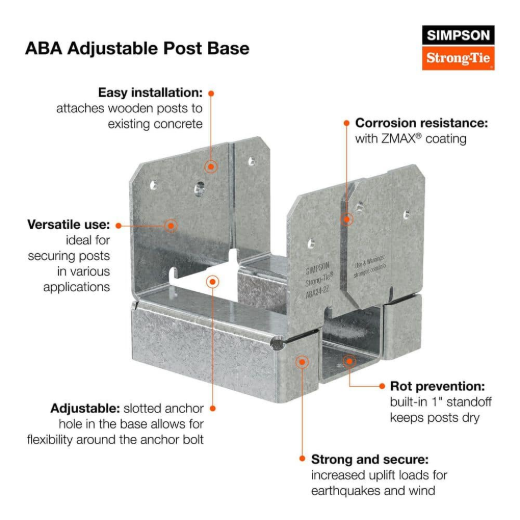

  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design
  • Slotted Base for Adjustability

Features

  • Specifically sized for 4x6 rough-sawn lumber (actual dimensions)
  • Made from heavy-duty 14-gauge steel for structural stability
  • Provides significant uplift resistance for wind and seismic loading

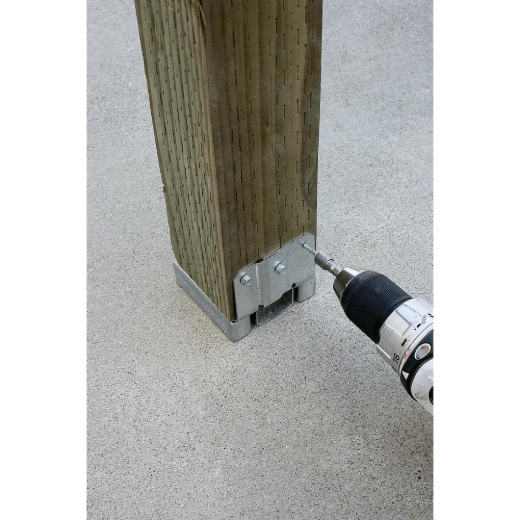

  • Compatible with nails or Strong-Drive SD Connector screws

Includes

  • 1 Adjustable Standoff Post Base
Products specifications
Model No. ABA46RZ
Material 14-Gauge Steel
Finish ZMAX Galvanized
Post Size 4x6 Rough
Width 4-1/16 inch
Length 5-3/16 inch
Height 2-7/8 inch
Fasteners Required (8) 0.162 inch x 3-1/2 inch Nails
Anchor Diameter 5/8 inch
*
*
*
