Simpson 4X8 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091345
Mfr. #: HHUS48
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $15.47
i h h

Description

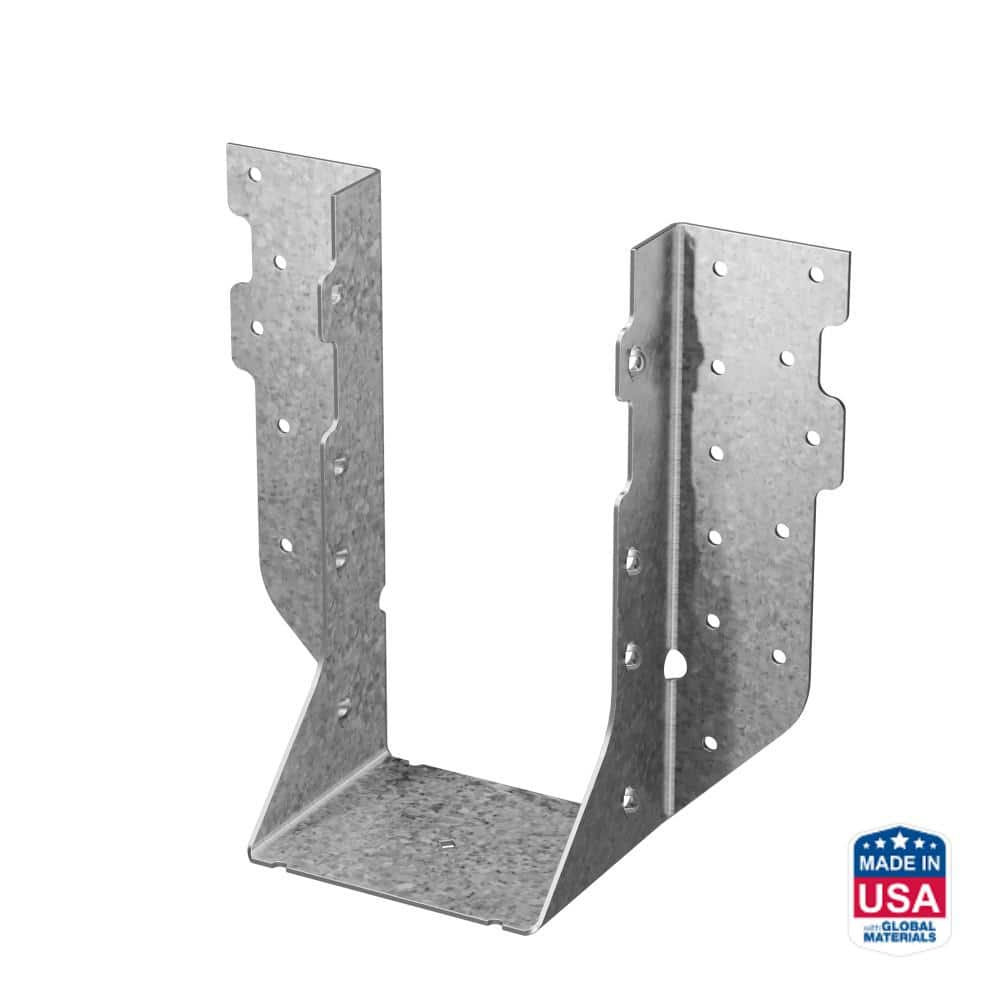

The Simpson HHUS48 is a heavy-duty face-mount joist hanger specifically engineered for 4x8 nominal lumber applications requiring high load-carrying capacities. As part of the HHUS series, this connector features an innovative double-shear nailing design that distributes the load through two points on each joist nail, providing superior strength and reducing the total number of fasteners needed. Crafted from durable 14-gauge steel with a G90 galvanized finish, it offers excellent corrosion resistance for both interior and exterior projects. Its versatile design allows for easy installation even after the beam is in place, making it a preferred choice for professional framing and deck construction.
  • Double-Shear Nailing
  • 14-Gauge Galvanized Steel
  • High Load Capacity
  • G90 Corrosion Resistance

Features

  • Double-shear nailing distributes the load through two points on each joist nail for greater strength.
  • Can be installed after the beam is secured in place for added convenience.
  • Value-engineered design allows for the use of standard nails for all connections.
  • Code-compliant and load-rated for demanding structural applications.

Includes

  • (1) HHUS48 4x8 Face Mount Hanger
Products specifications
Model Number HHUS48
Series HHUS Series
Material 14-Gauge Steel
Finish G90 Galvanized
Joist Size 4x8 Nominal
Actual Width 3-5/8 inch
Actual Height 7-1/8 inch
Fasteners Required 16d common nails
*
*
*
