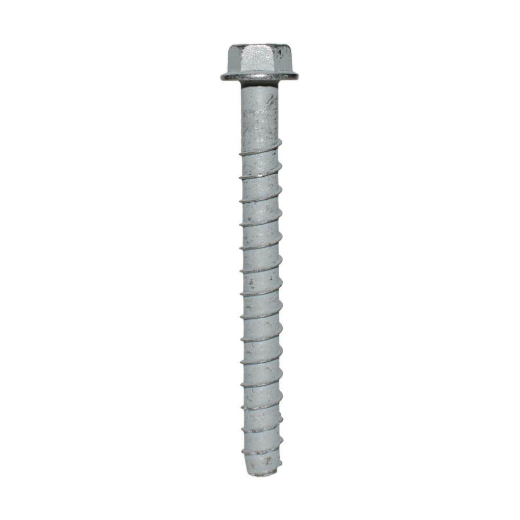

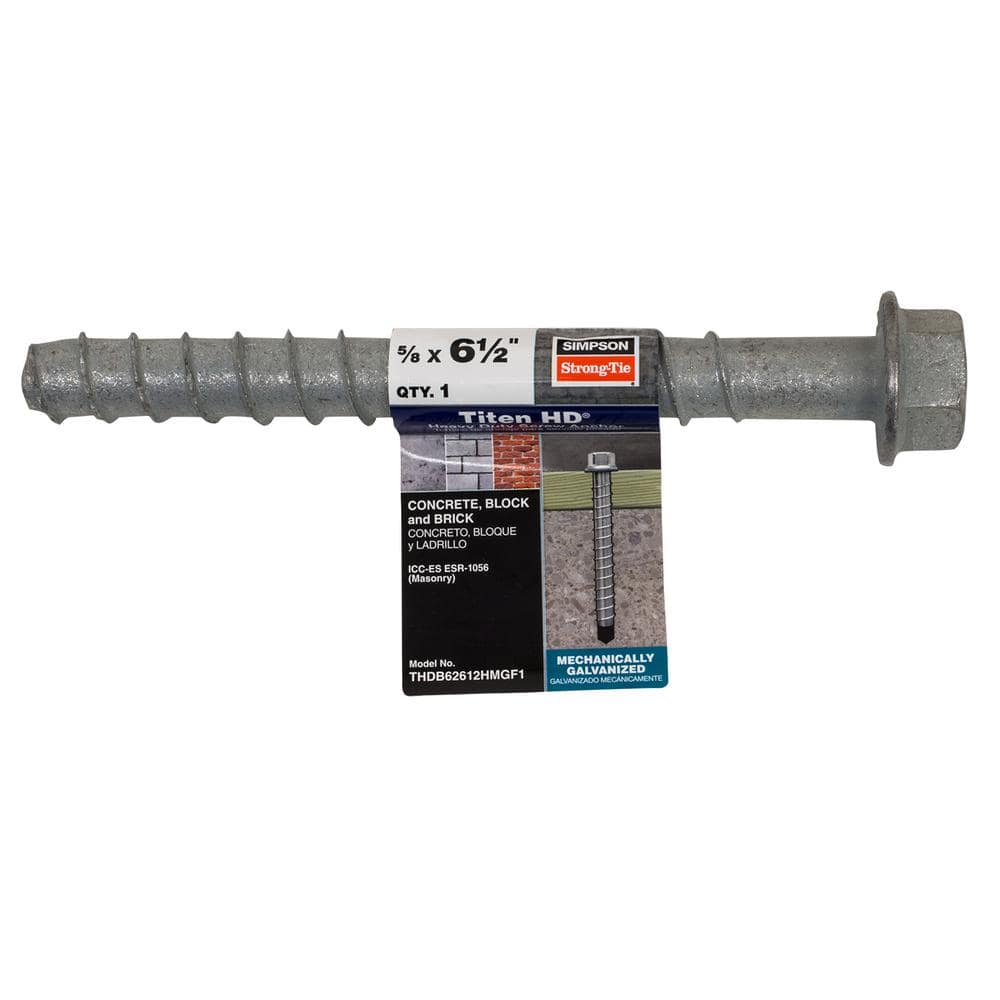

Simpson THD - 5/8" x 6-1/2" Titen HD Screw Anchor Mech Galv

Mfr.: Simpson Strong-Tie
Item #: I094075
Mfr. #: THDB62612HMG
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $139.11
i h h

Description

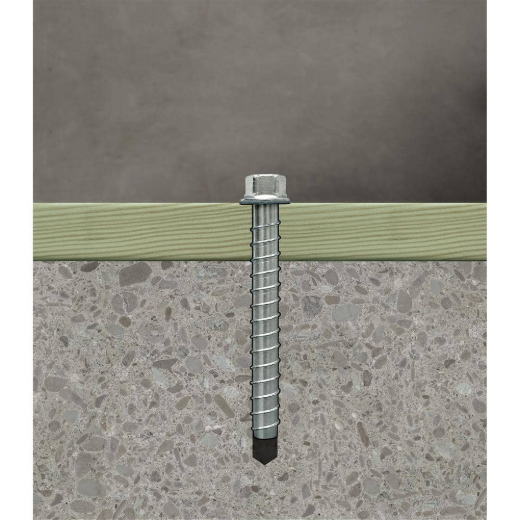

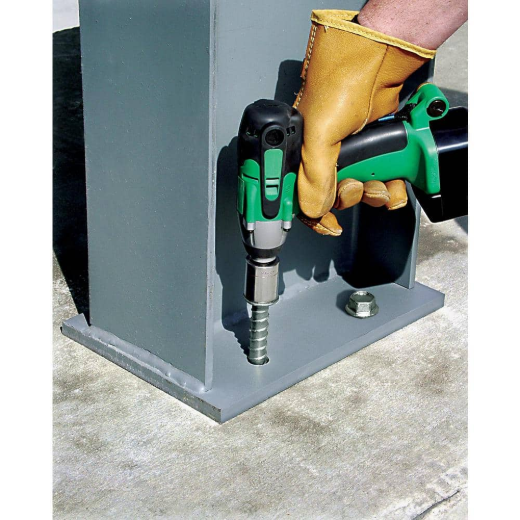

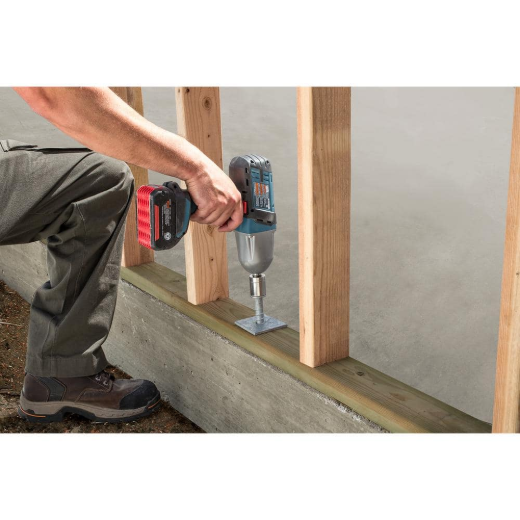

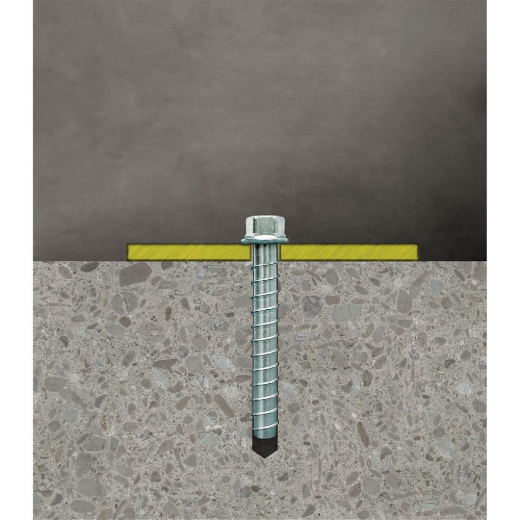

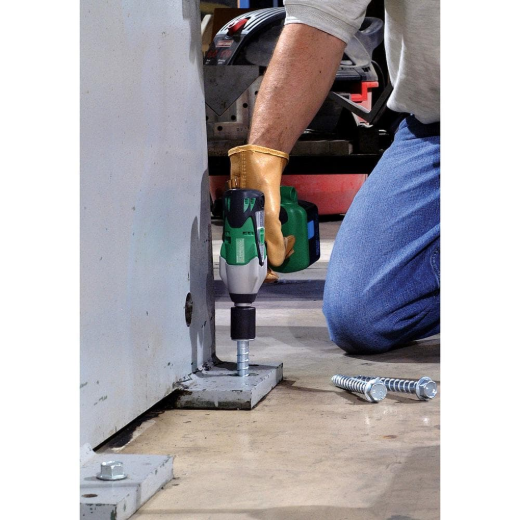

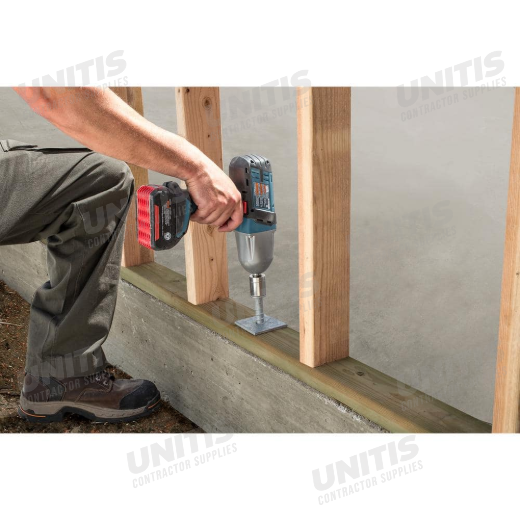

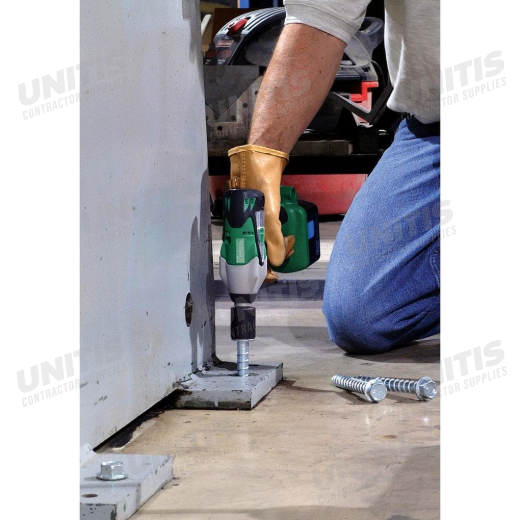

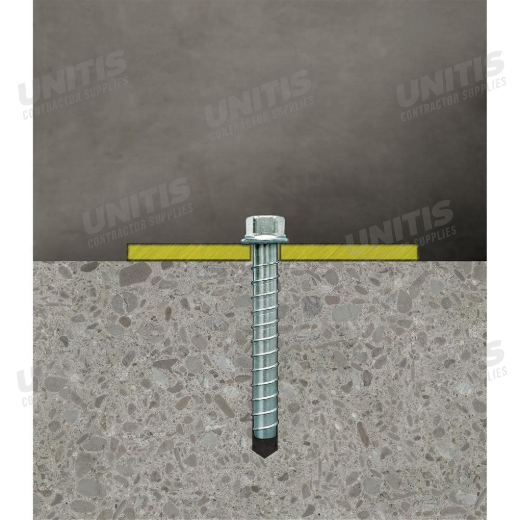

The Simpson Strong-Tie Titen HD screw anchor is a high-strength, mechanically galvanized anchor designed for use in cracked and uncracked concrete, as well as uncracked masonry. It offers outstanding performance with low installation torque and no secondary setting. This anchor is ideal for a wide variety of applications including sill plates, ledgers, post bases, seating, and other holdown applications. It is also removable, making it suitable for temporary applications like bracing and formwork, or when fixtures need to be relocated.

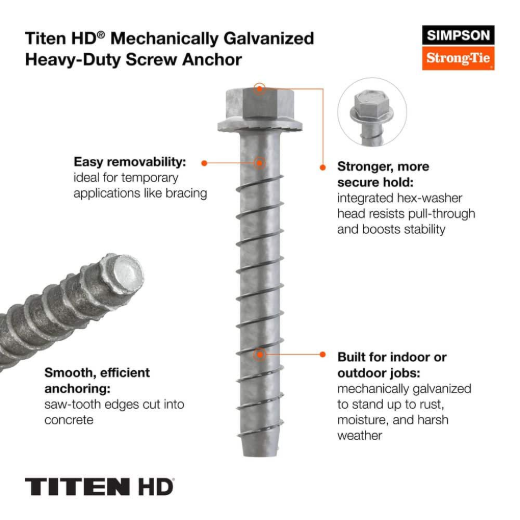

  • High-strength screw anchor
  • Mechanically galvanized finish for corrosion resistance
  • Suitable for cracked and uncracked concrete and masonry

Features

  • Thread design undercuts for efficient load transfer to the base material.

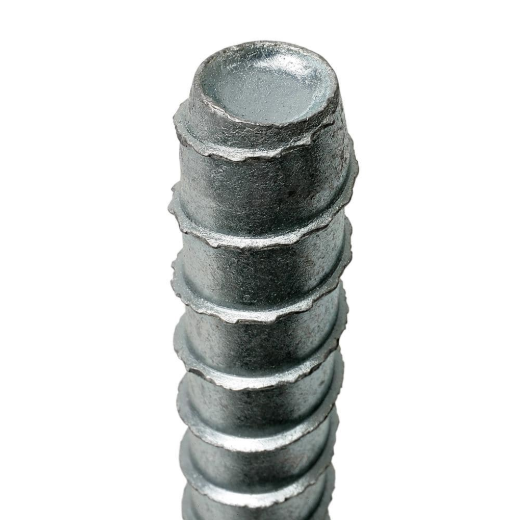

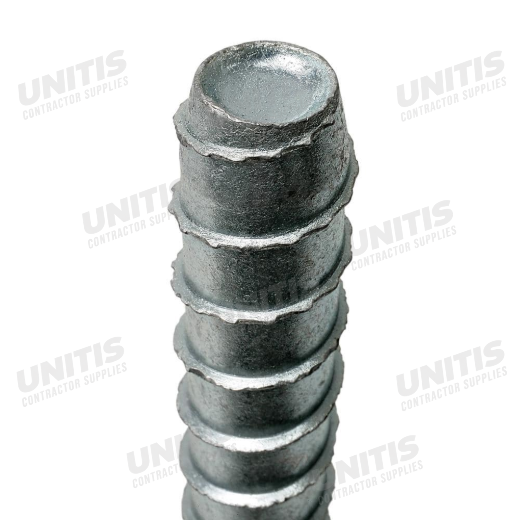

  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility.

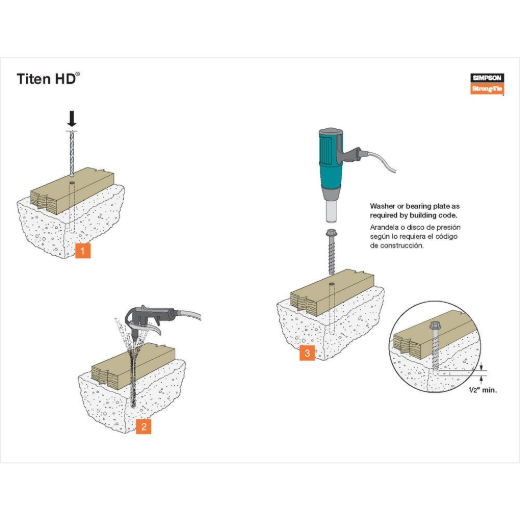

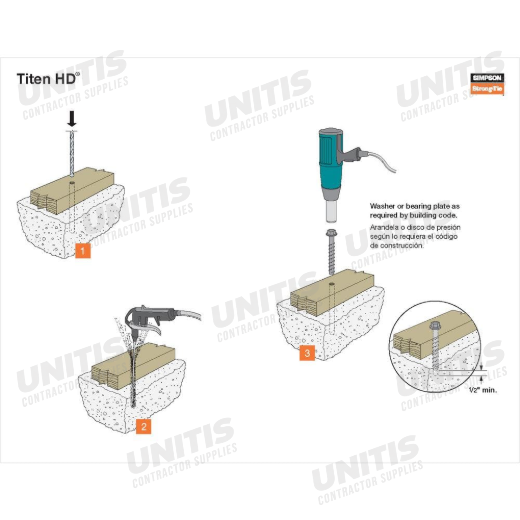

  • Installs with standard-sized ANSI tolerance drill bits; no special tools required.

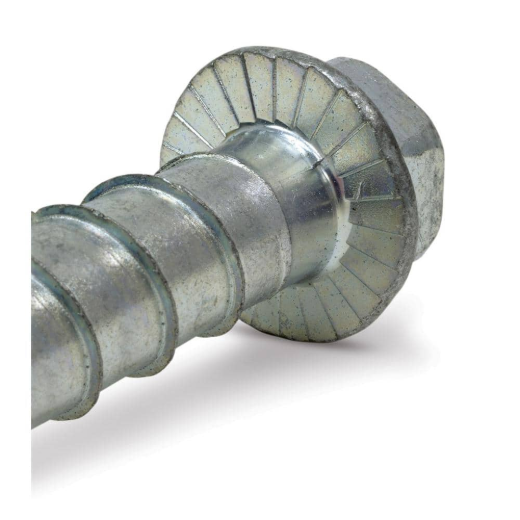

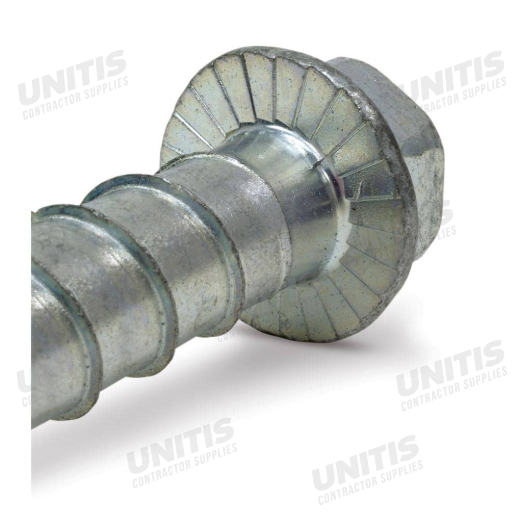

  • Hex washer head does not require a separate washer unless required by code.
  • Qualified for static and seismic loading conditions.

Includes

  • Anchor (quantity may vary by package, e.g., 10 or 40)
Products specifications
Anchor Diameter 5/8 in
Anchor Type Screw Anchor
Code Listing ICC-ES ESR-2713; Coating per ASTM B695 Class 55
Country of Origin Varies (subject to change)
Finish / Coating Mechanically Galvanized
Head Style Hex Head
Material Carbon Steel
Overall Length 6-1/2 in
Pack Quantity 1 per pack
*
*
*
