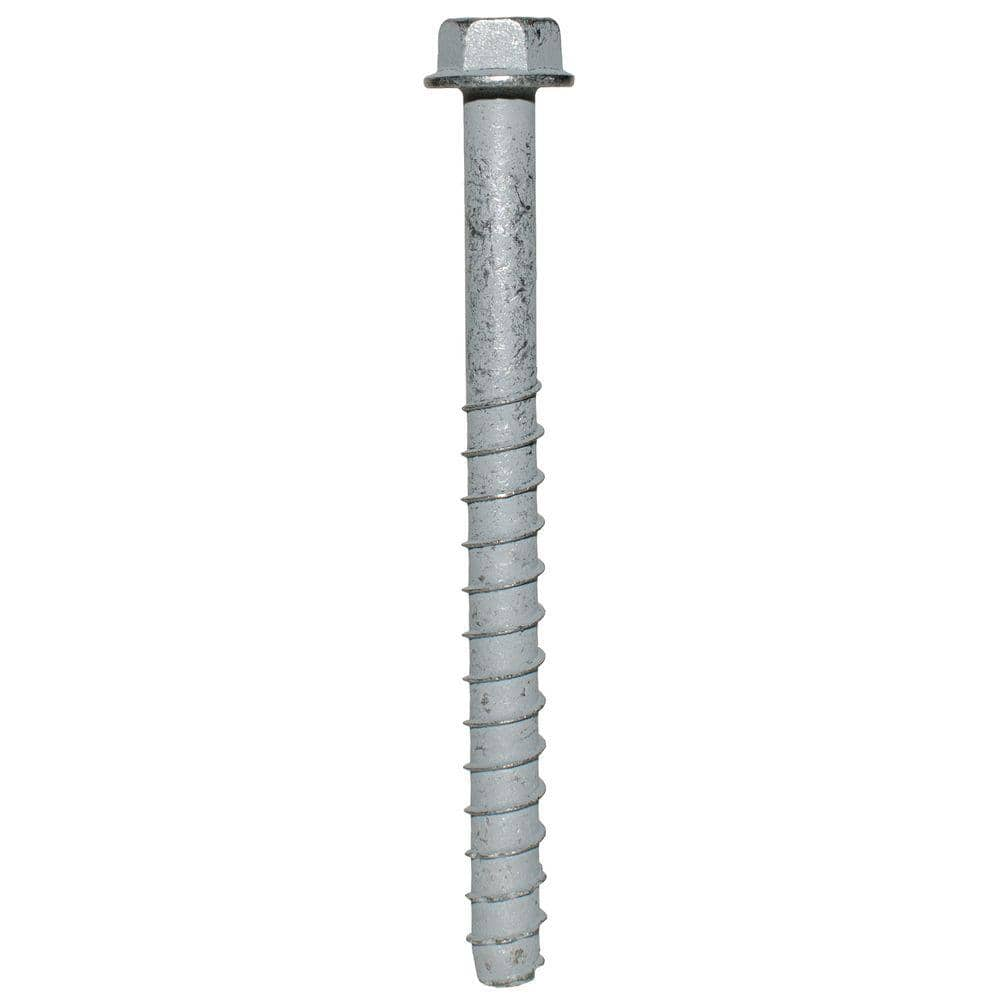

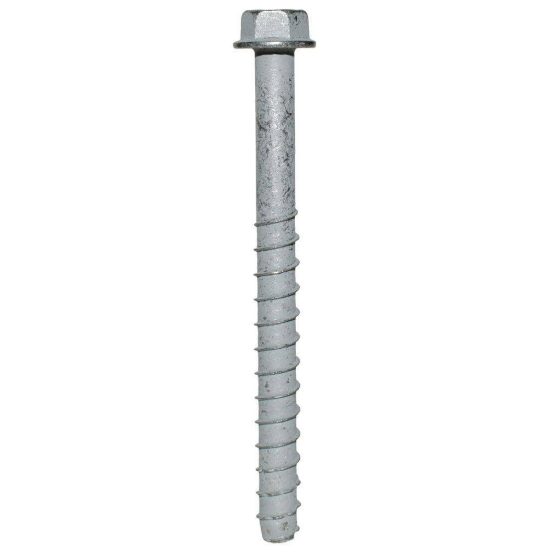

Simpson 5/8 X 8 Titen HD Mech Galv Screw Anchor

Mfr.: Simpson Strong-Tie
Item #: I094078
Mfr. #: THDB62800HMG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $158.29
i h h

Description

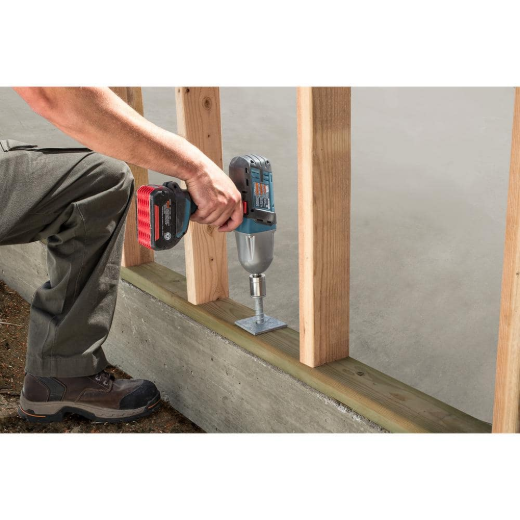

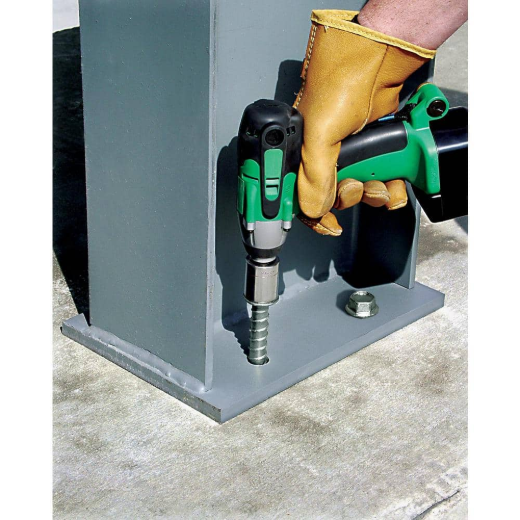

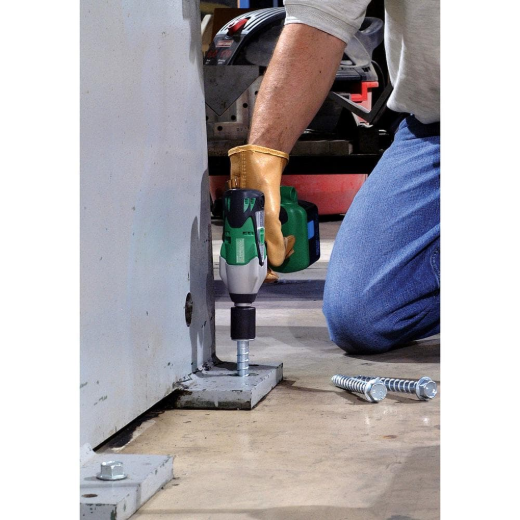

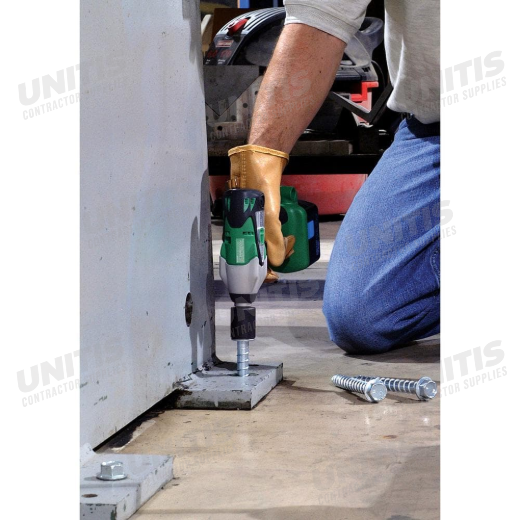

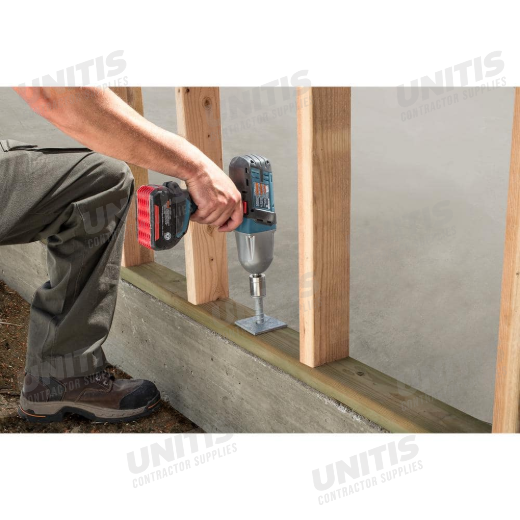

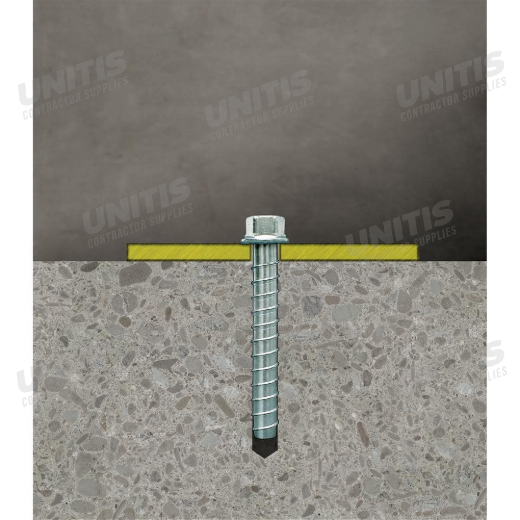

The Simpson Strong-Tie Titen HD screw anchor is a high-strength, mechanically galvanized anchor designed for quick and reliable installation in cracked and uncracked concrete, as well as uncracked masonry. It offers outstanding performance with low installation torque, making it suitable for a wide variety of applications including seating, post bases, ledgers, and sill plates. Its proprietary heat treatment and robust thread design ensure efficient load transfer and durability, while its removable nature makes it ideal for temporary anchoring or applications requiring fixture relocation.
  • Mechanically Galvanized Coating (ASTM B695 Class 65)
  • Code listed for exterior applications

Features

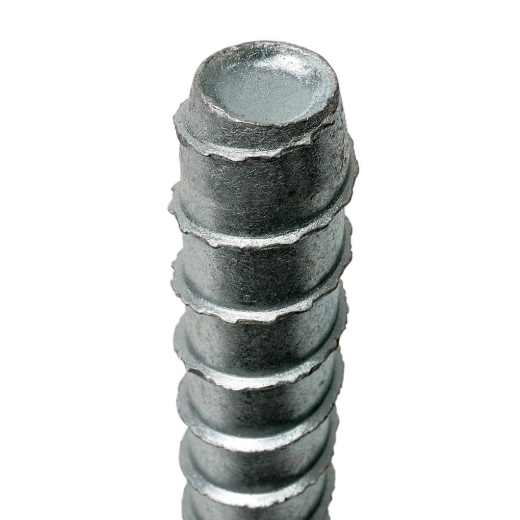

  • Serrated teeth on the tip facilitate cutting and reduce installation torque.

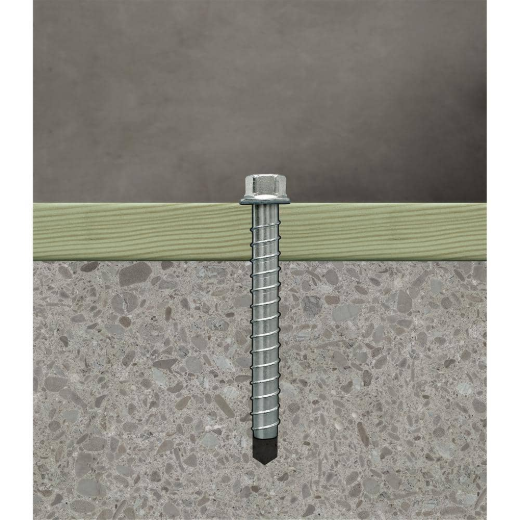

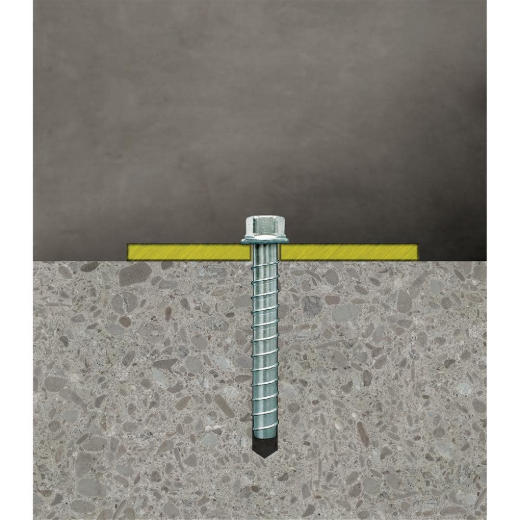

  • Thread design undercuts for efficient load transfer to the base material.
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility.

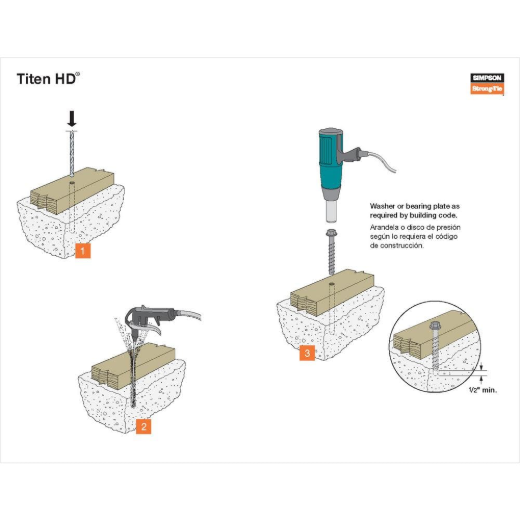

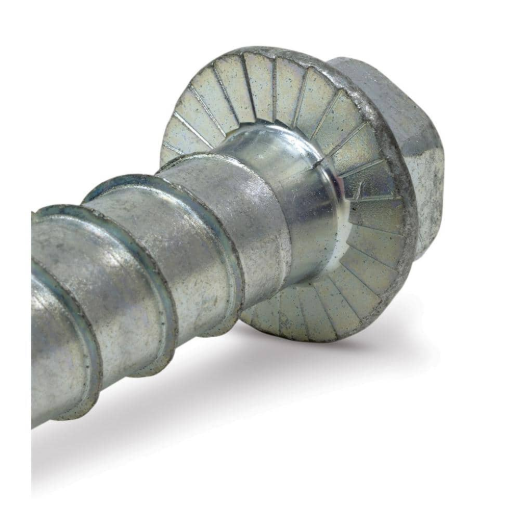

  • Hex washer head requires no separate washer, unless required by code.
  • Qualified for static, wind, and seismic loading conditions.

Includes

  • 10 Titen HD Screw Anchors
Products specifications
Diameter 5/8 inch
Length 8 inch
Finish Mechanically Galvanized
Material Carbon Steel
Quantity 10 per carton
Head Type Hex Washer Head
Drive Type 15/16 inch Hex
*
*
*
