Simpson 6 X 10 Face Mount Hanger HUC

Mfr.: Simpson Strong-Tie
Item #: I091663
Mfr. #: HUC610
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $29.31
i h h

Description

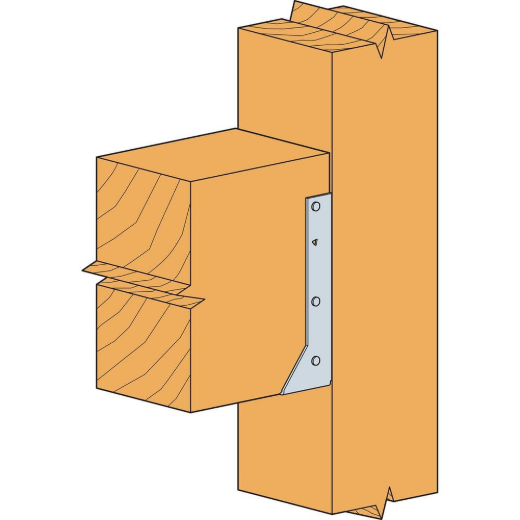

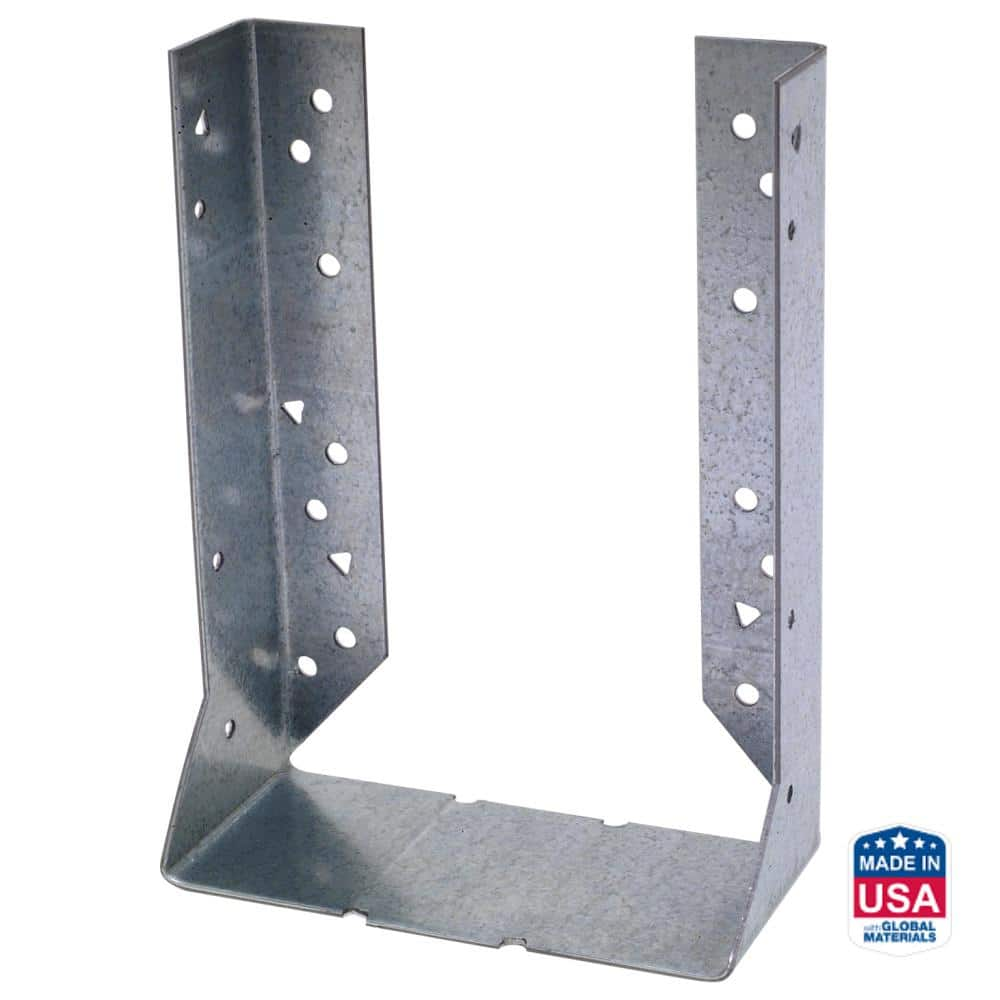

The Simpson Strong-Tie HUC series offers heavy-duty, concealed-flange face-mount joist hangers designed to provide robust support for various construction applications. These hangers feature a concealed header flange, which provides cleaner visible lines in exposed conditions while ensuring high load capacity. Crafted from 14-gauge steel with a G90 galvanized finish, they offer reliable corrosion resistance for interior and exterior framing projects.
  • Concealed Flange Design for clean aesthetic lines
  • G90 Galvanized Finish for corrosion resistance

Features

  • Heavy-duty design engineered for increased strength and safety factors
  • Compatible with wood joists to wood, masonry, or concrete
Products specifications
Material 14 Gauge Steel
Finish G90 Galvanized
Joist Size 6 inch x 10 inch
Width 5-1/2 inch
Height 7-5/8 inch
Mounting Type Face Mount
Series HUC
*
*
*
