Simpson 6 X 16 Face Mount Hanger

Mfr.: Simpson Strong-Tie
Item #: I091558
Mfr. #: HU616
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $57.62
i h h

Description

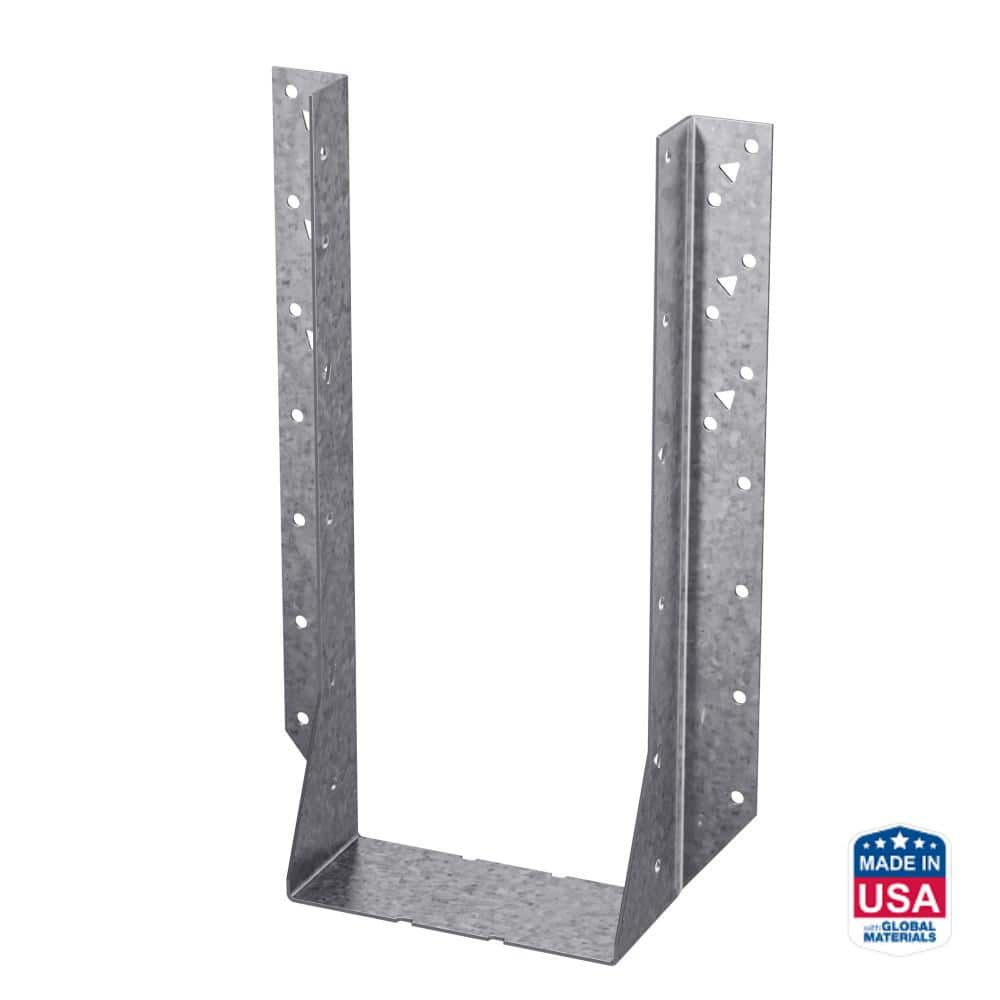

The Simpson Strong-Tie HU616 is a heavy-duty, face-mount joist hanger designed to provide robust support for structural wood-to-wood, wood-to-masonry, and wood-to-steel connections. Engineered from 14-gauge steel, this hanger ensures exceptional durability and is ideal for demanding applications such as deck framing, flooring systems, and roof rafters. Its unique U-design allows for flexible placement on the header while maintaining consistent, code-compliant load distribution.
  • Heavy-duty 14-gauge steel construction
  • G90 galvanized finish for corrosion resistance

Features

  • Tested, load-rated, and building code compliant for reliability
  • Versatile design suitable for solid sawn lumber, engineered wood, and cold-formed steel
  • Flexible installation options: can be installed by filling round holes only, or both round and triangular holes for maximum load capacity

Includes

  • 1 x HU616 Heavy Face-Mount Joist Hanger
Products specifications
Material Carbon Steel
Finish G90 Galvanized
Gauge 14 Gauge
Joist Size 6 inch x 16 inch
Height 12.69 inch
Width 5.5 inch
Fasteners (Face) 26 - 0.162 inch x 3-1/2 inch Nails
Fasteners (Joist) 12 - 0.162 inch x 3-1/2 inch Nails
*
*
*
