Simpson 6 X Rough Post Base

Mfr.: Simpson Strong-Tie
Item #: I090910
Mfr. #: BC60R
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $55.41
i h h

Description

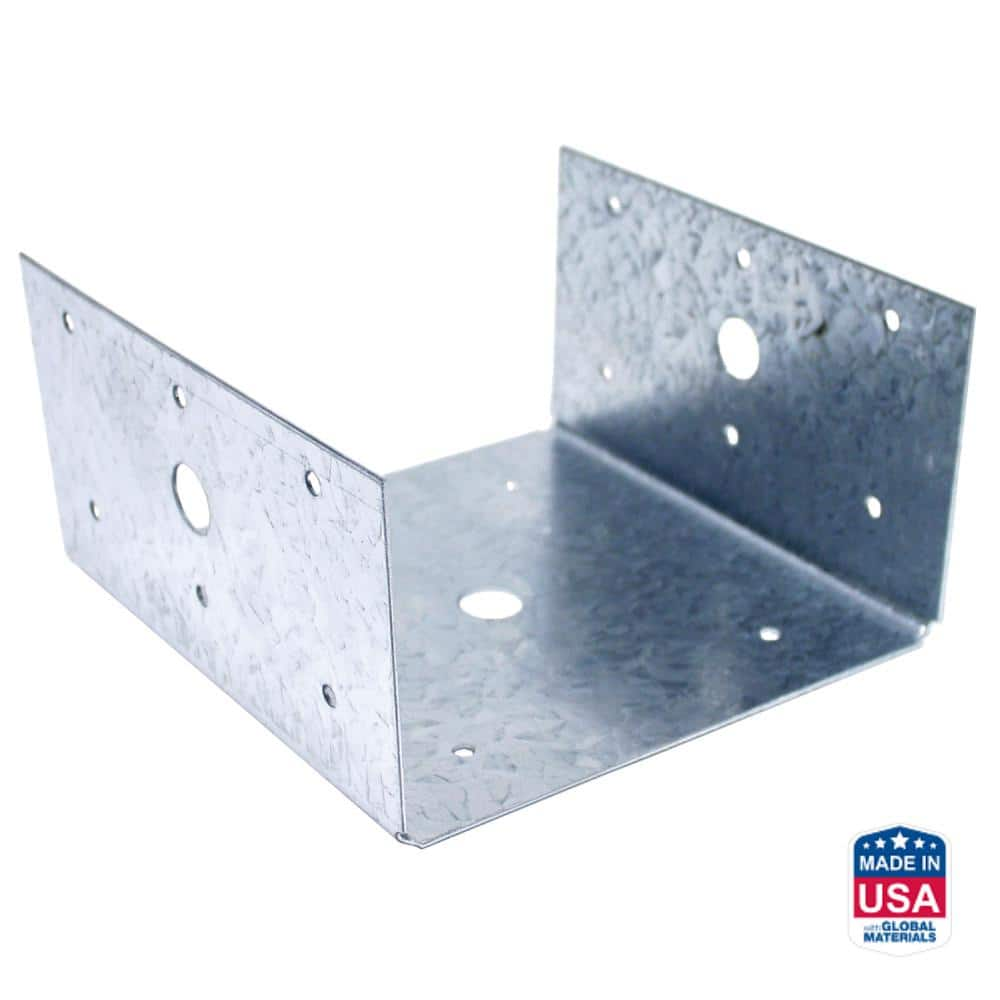

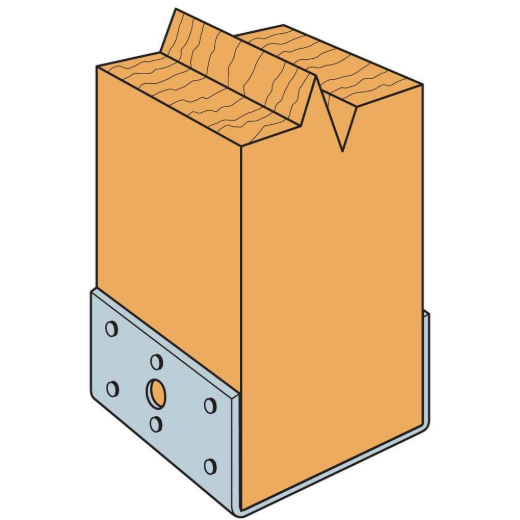

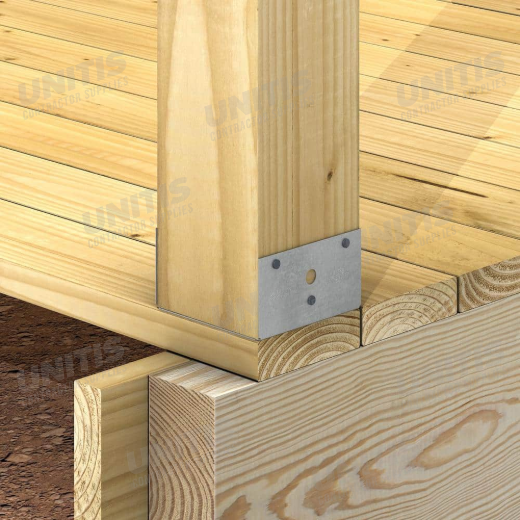

The Simpson Strong-Tie BC60R is a high-quality post base designed to provide a secure connection between a post and a wood supporting member. Specifically engineered for 6x rough-cut lumber, this connector is ideal for light-duty applications requiring reliable uplift and lateral resistance. Its durable 18-gauge steel construction and G90 galvanized finish ensure long-lasting performance in various construction environments.
  • G90 Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Specifically designed for rough-cut lumber (6x6) rather than nominal sizes.
  • Provides dual-purpose utility for both post cap and post base connections.
  • Features an opposing nail pattern to significantly reduce the risk of wood splitting.
  • Attains full allowable load capacity using either common or pneumatic nails.

Includes

  • (1) BC60R Rough Cut Post Base
Products specifications
Model Number BC60R
Material 18-Gauge Steel
Finish G90 Galvanized
Post Size 6x Rough
Width 6 inch
Length 6 inch
Height 3 inch
Fasteners (Post) (6) 0.162 x 3-1/2 inch Nails
Fasteners (Base) (4) 0.162 x 3-1/2 inch Nails
Uplift Load 450 lb
Lateral Load 735 lb
*
*
*
