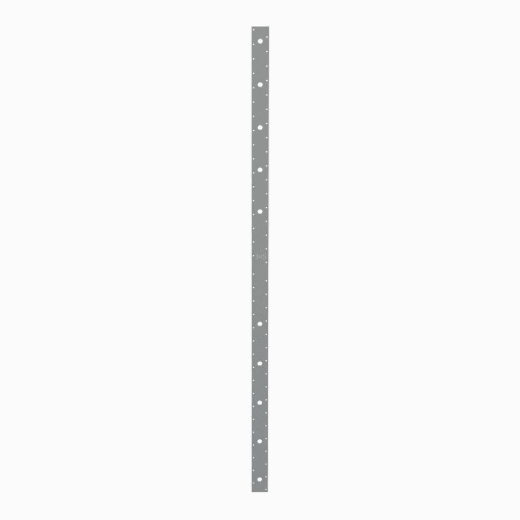

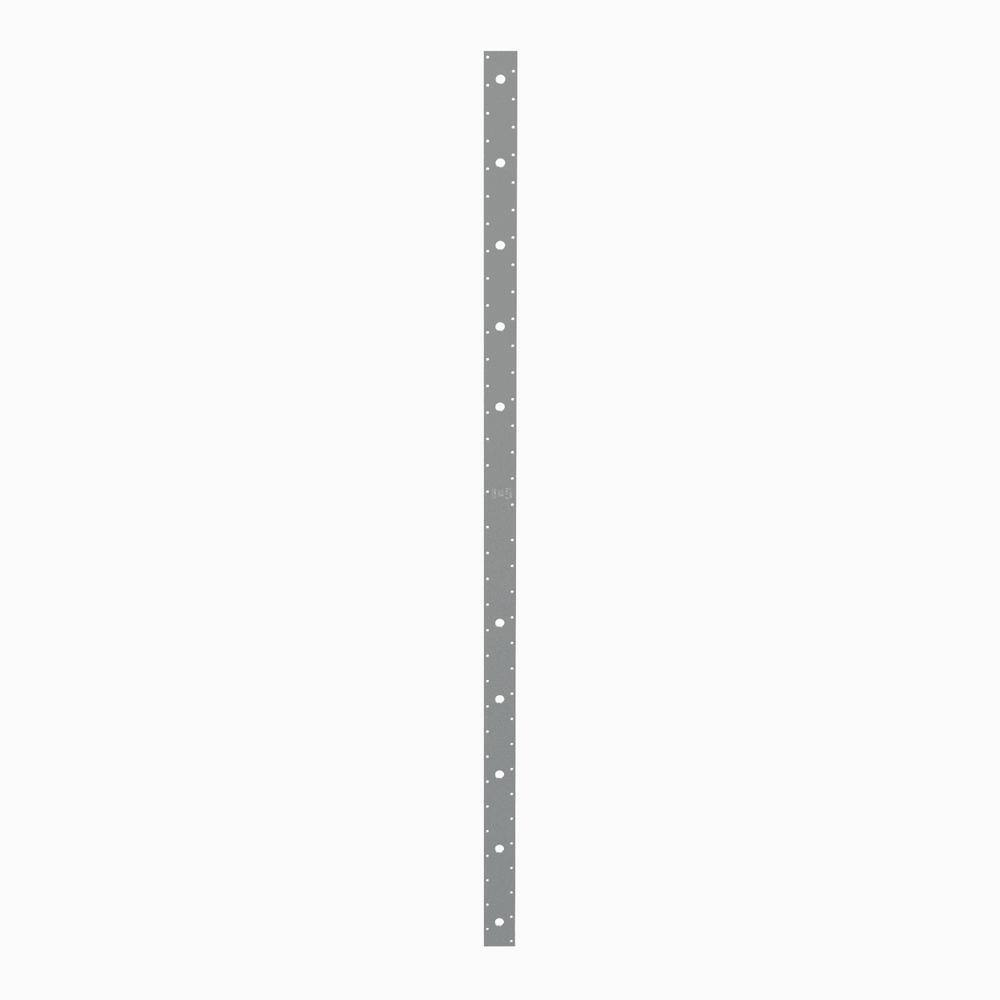

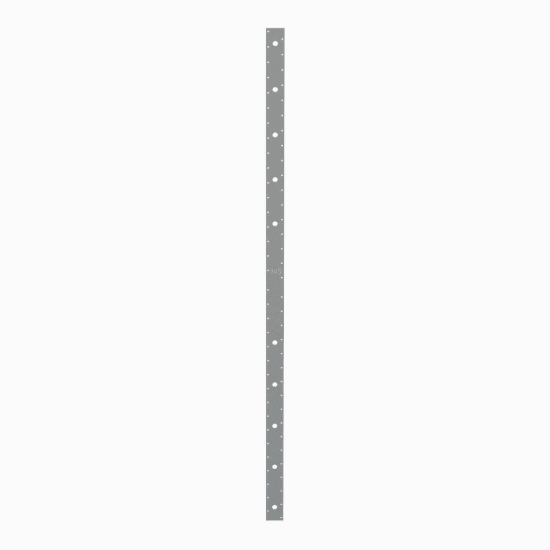

Simpson 60-In. 10-Gauge Medium Strap Tie Hdg

Mfr.: Simpson Strong-Tie
Item #: I090794
Mfr. #: MST60HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $82.22
i h h

Description

The Simpson Strong-Tie MST60HDG is a high-capacity, 60-inch medium strap tie engineered to resist tension loads in floor-to-floor connections and heavy framing applications. Manufactured from 10-gauge steel with a hot-dip galvanized finish, this strap provides exceptional durability and superior corrosion resistance for exterior environments and treated lumber. The precut design and dense nailing pattern allow for quick, reliable installation to safeguard structures against wind and seismic forces.
  • Hot-Dip Galvanized Finish
  • 10-Gauge Heavy-Duty Steel

Features

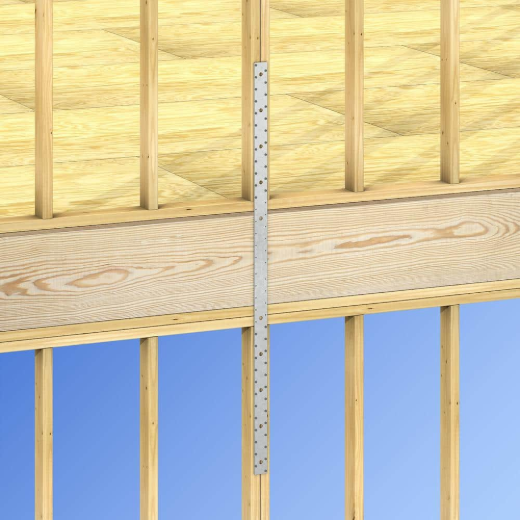

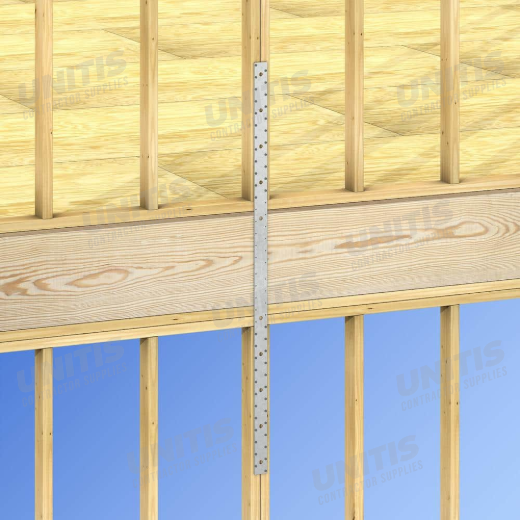

  • Designed to resist tension loads in floor-to-floor and other applications.

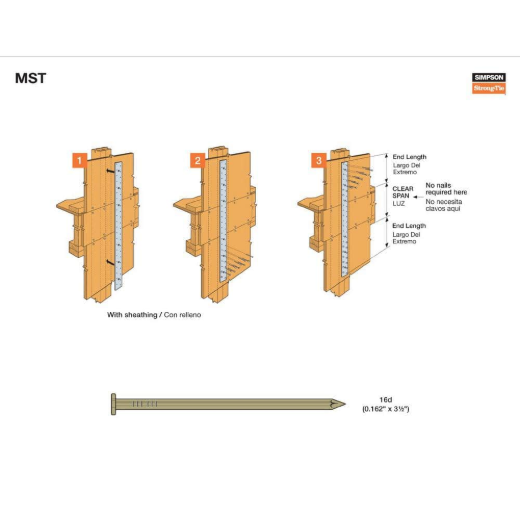

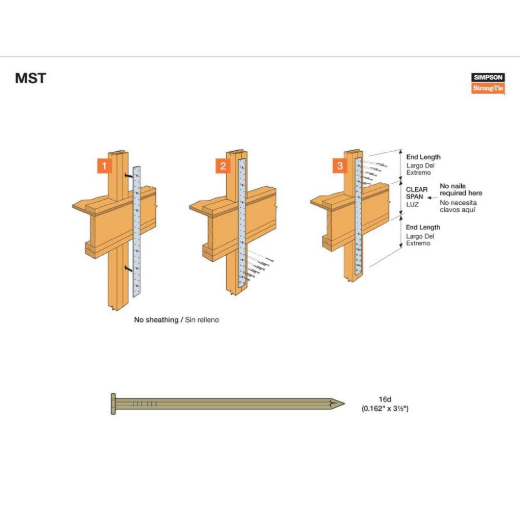

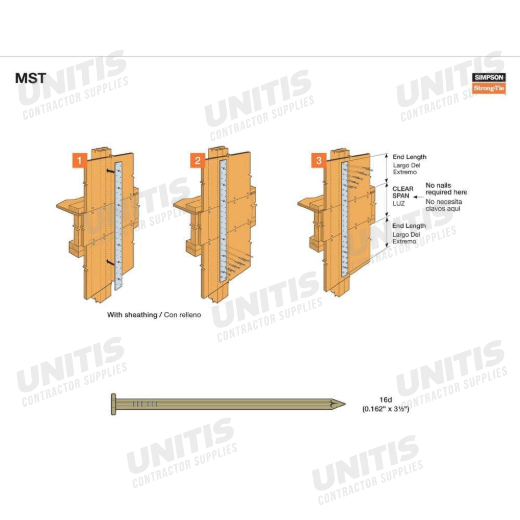

  • Features a dense nailing pattern that can be installed with nails or bolts.
  • Load-rated for reliable performance against wind and seismic forces.

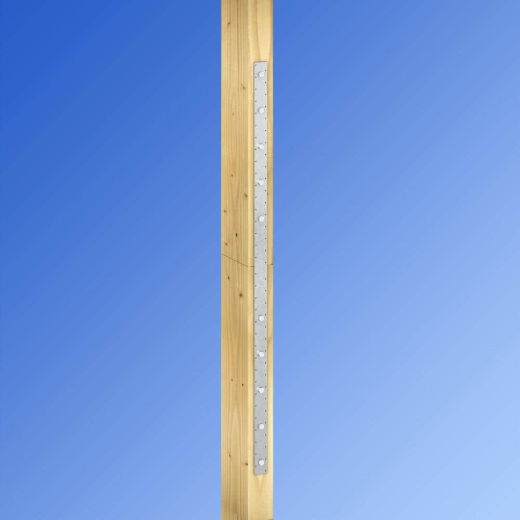

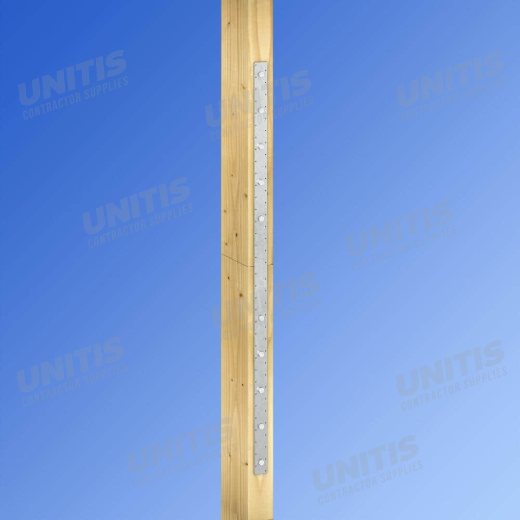

  • Suitable for connecting double 2x members or greater.

Includes

  • (1) MST60HDG Strap Tie
Products specifications
Model No. MST60HDG
Length 60 inch
Width 2-1/16 inch
Thickness 10 Gauge (0.118 inch)
Material Carbon Steel
Finish Hot-Dip Galvanized

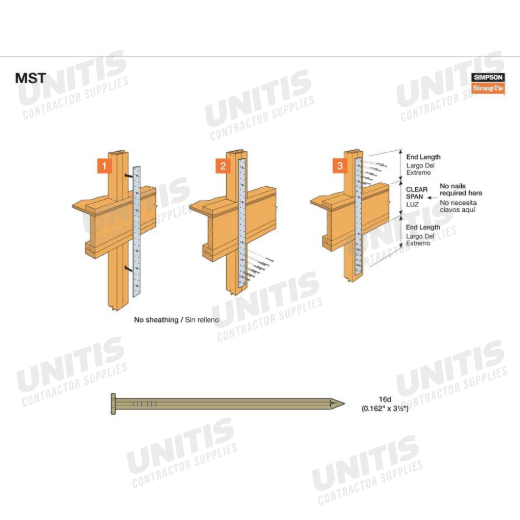

Fasteners Required (68) 0.162 inch x 3-1/2 inch Nails
Fastener Type Nails or Bolts
*
*
*
