  • Simpson 6X Beam, 6X Post Hdg Column Cap

Simpson 6X Beam, 6X Post Hdg Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092246
Mfr. #: CC66HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $245.62
i h h

Description

Elevate your wood construction projects with the Simpson CC66HDG CC Hot-Dip Galvanized Column Cap. Specifically designed for 6x beams and 6x posts, this column cap is the ultimate solution for creating robust column-beam connections. Its extended bearing surface effectively disperses the load from the beam, ensuring superior stability and strength. Crafted with hot-dip galvanized steel, it offers excellent corrosion resistance for lasting durability in various environments.
  • Hot-Dip Galvanized Steel
  • Enhanced Load Distribution

Features

  • Durable construction suitable for various environmental conditions.

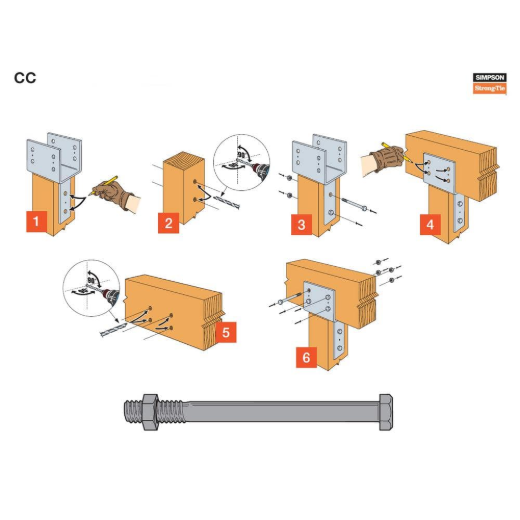

  • Designed for efficient and straightforward installation.
  • Certified welds for confidence in strength and loading.
  • Uplift loads increased for earthquake or wind loading.
  • Diamond holes provide temporary fastening.

Includes

  • 1x Hot-Dip Galvanized Column Cap for 6x Beam and 6x Post
Products specifications
Beam size 6x
Post size 6x
Finish Hot Dip Galvanized
Material Heavy Gauge Steel
Thickness 7 Gauge
Fasteners required (Beam) (4) 5/8 inch Machine Bolts
Fasteners required (Post) (2) 5/8 inch Machine Bolts
For Treated Lumber Yes
*
*
*
