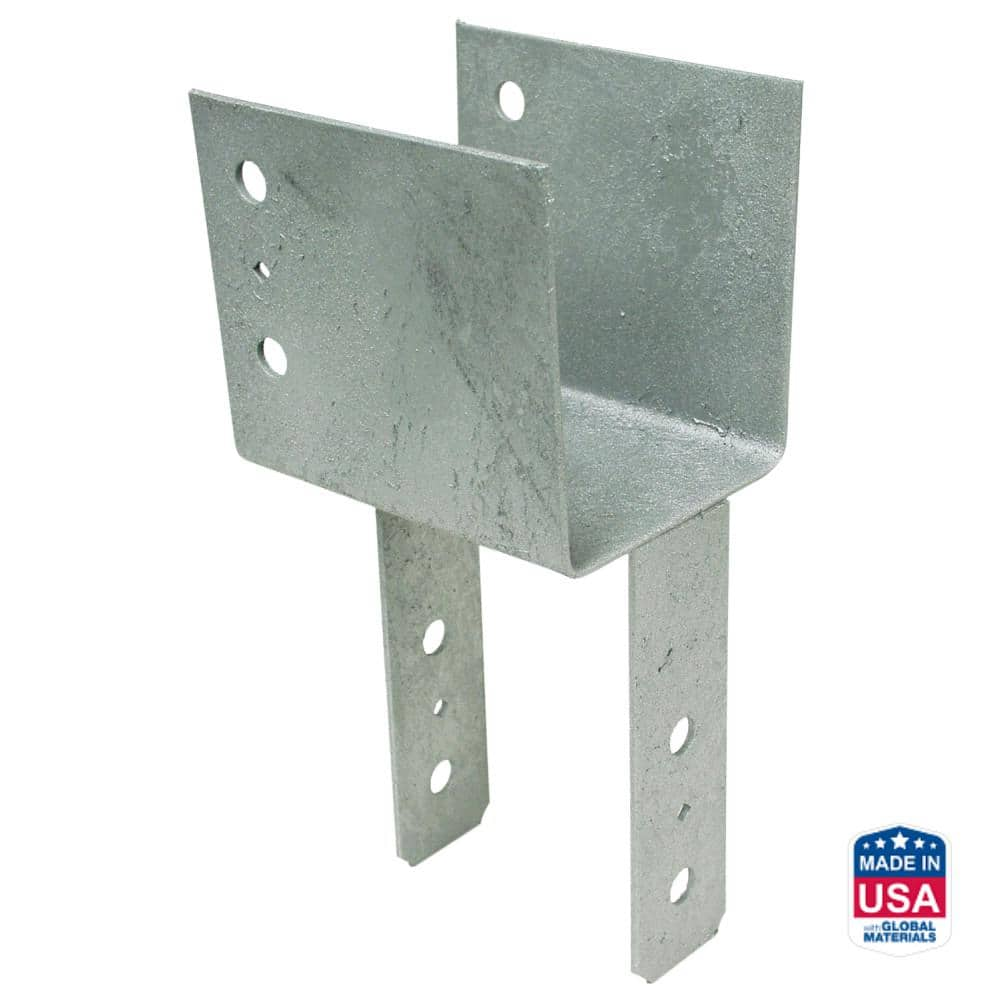

Simpson 6x Beam 6x Post HDG End Column Cap

Mfr.: Simpson Strong-Tie
Item #: I092728
Mfr. #: ECC66HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $245.62
i h h

Description

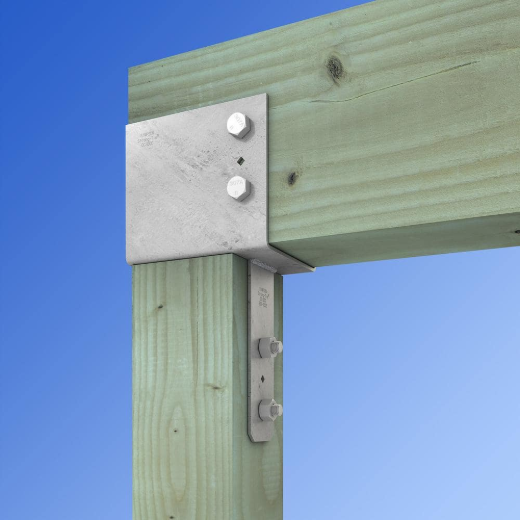

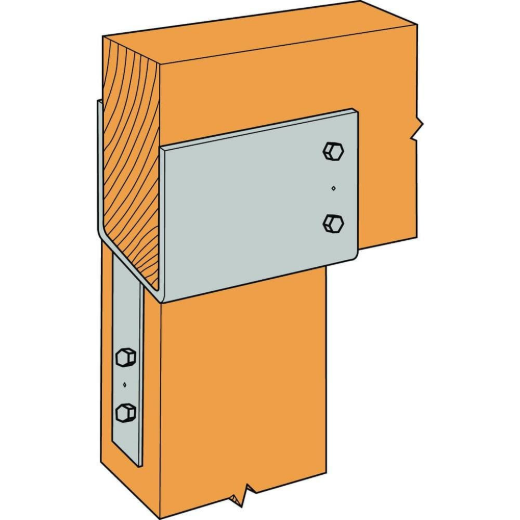

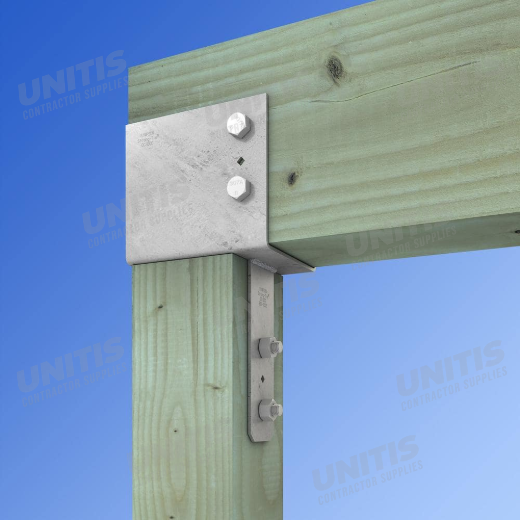

The Simpson Strong-Tie ECC66HDG End Column Cap is engineered to provide robust and reliable connections between 6x beams and 6x posts in wood construction projects. Its design ensures strong end-of-beam connections, with an extended seat that increases bearing surface area for optimal load distribution. Crafted from durable, heavy-gauge steel with a hot-dip galvanized finish, this column cap offers exceptional strength and resistance to corrosion, making it ideal for demanding applications.
  • End Column Cap for 6x Beam and 6x Post
  • Hot-Dip Galvanized Finish

Features

  • Provides strong end-of-beam connection for column-to-beams.
  • Extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Made from Steel for durability.
  • Finished with Hot Dip Galvanized coating.
  • Certified welds for strength and loading.
  • Increased uplift loads for earthquake or wind loading.
  • Features diamond holes for temporary fastening during installation.
  • Bolt spacing meets NDS code requirements.

Includes

  • 1 End Column Cap for 6x Beam and 6x Post
Products specifications
material Galvanized Steel
finish Hot Dip Galvanized
beam_size 6x
post_size 6x
thickness 7 Gauge
fasteners_required Beam: (2) 5/8 inch Mach Bolts, Post: (2) 5/8 inch
for_treated_lumber Yes
*
*
*
