Simpson 6X10 Column Base CB610

Mfr.: Simpson Strong-Tie
Item #: I090930
Mfr. #: CB610
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $69.64
i h h

Description

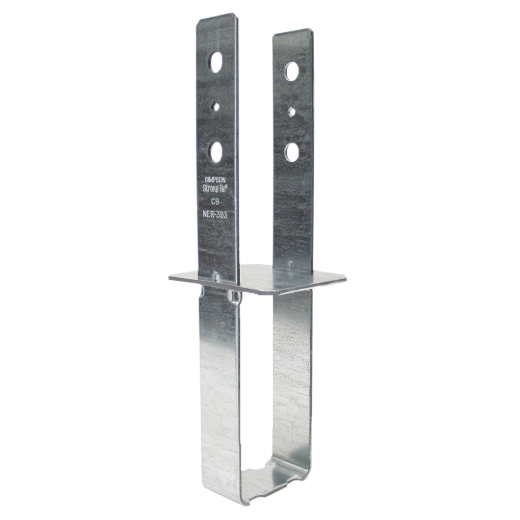

The Simpson Strong-Tie CB610 is a heavy-duty column base designed to provide a secure connection between 6x10 timber posts and concrete foundations. This cast-in-place connector is engineered for wet-set installation, ensuring the base plate sits flush with the concrete surface for maximum post bearing. Its rugged construction provides high structural values, making it ideal for projects requiring significant uplift resistance against wind or seismic forces.
  • Heavy-Gauge Steel Construction
  • G90 Galvanized Finish

Features

  • Designed for 6x10 nominal lumber with actual dimensions of 5-1/2 in. x 9-1/2 in.
  • Constructed from durable 7-gauge steel for both the strap and the base.
  • Features bolt hole locations that meet code-required spacing for optimal load capacity.
  • Provides increased resistance to uplift and lateral loads in wind and seismic events.

Includes

  • (1) CB610 Column Base
Products specifications
Model Number CB610
Post Size 6x10
Material 7-Gauge Steel
Finish G90 Galvanized
Base Width (W1) 5-1/2 inch
Base Length (W2) 9-1/2 inch
Required Fasteners (2) 5/8 inch Machine Bolts
Installation Type Cast-in-Place / Wet-Set
Uplift Load 6,465 lbs
Download Load 18,400 lbs
*
*
*
