Simpson 6X6 Adjustable Post Base Zmax

Mfr.: Simpson Strong-Tie
Item #: I090886
Mfr. #: ABA66Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $30.30
i h h

Description

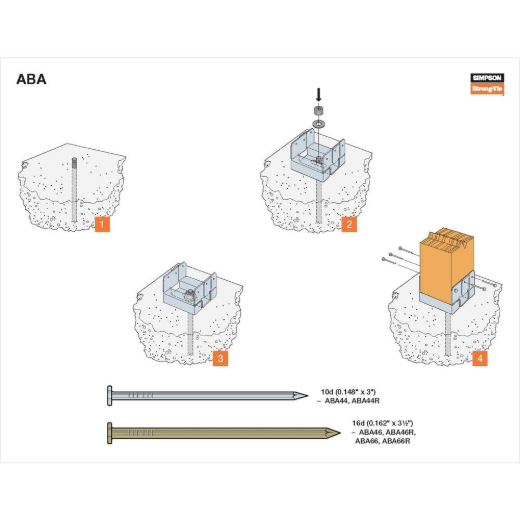

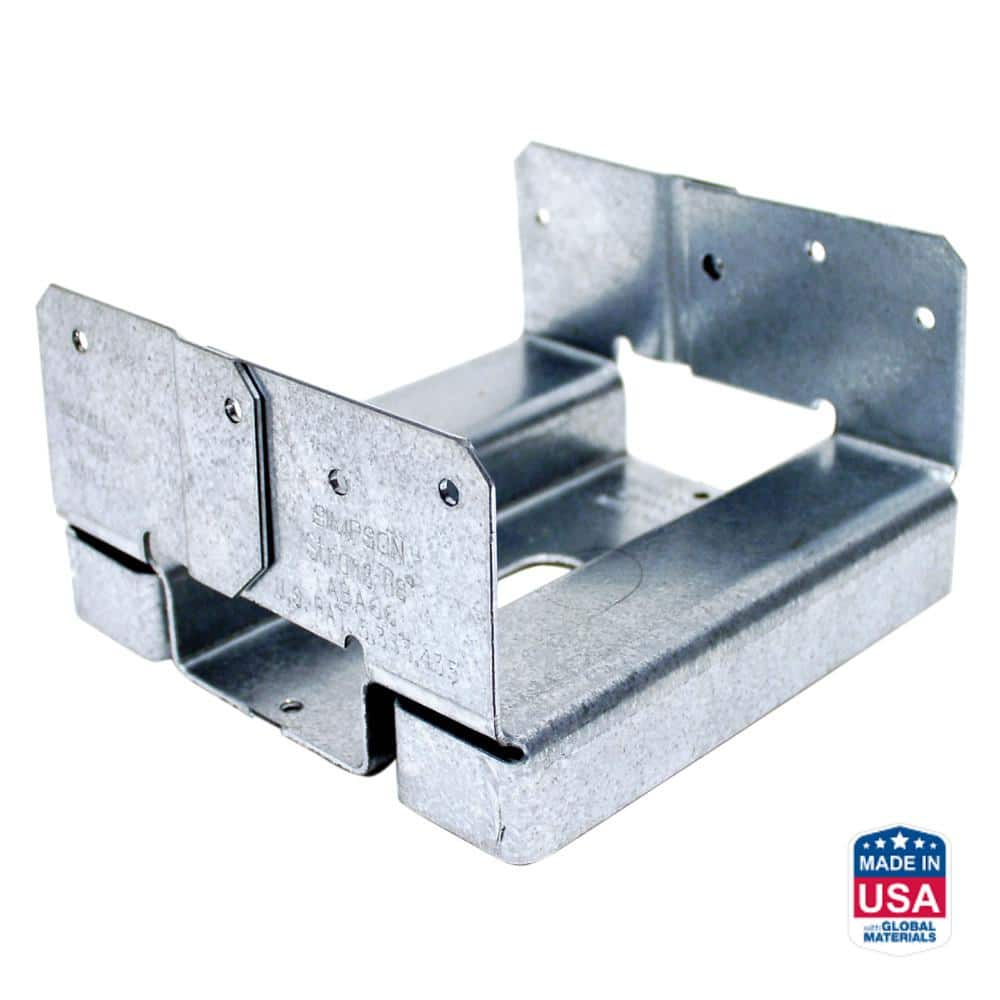

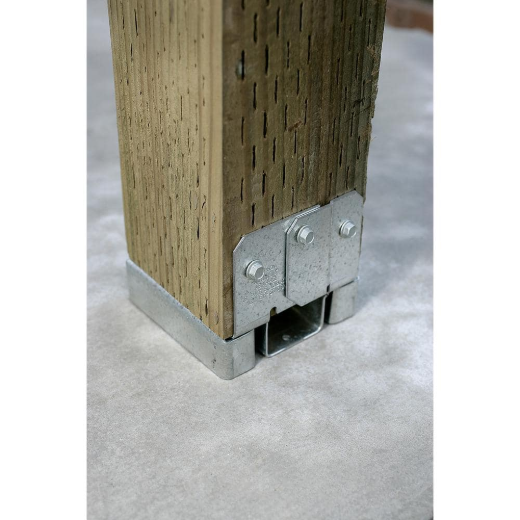

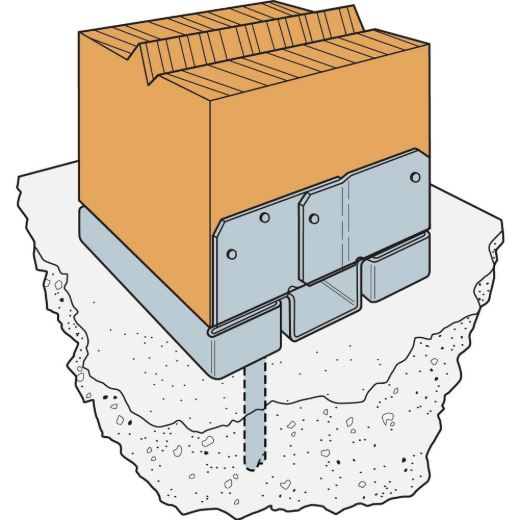

The Simpson Strong-Tie ABA66Z is a versatile adjustable post base designed to secure 6x6 wood posts to existing hardened concrete surfaces. This structural connector features a built-in 1-inch standoff that elevates the post above the concrete to prevent moisture-related decay and rot at the post end. Its engineered geometry includes a slotted anchor hole that provides flexibility for precise alignment with the anchor bolt during installation.
  • ZMAX Galvanized Coating
  • 1-inch Integrated Standoff

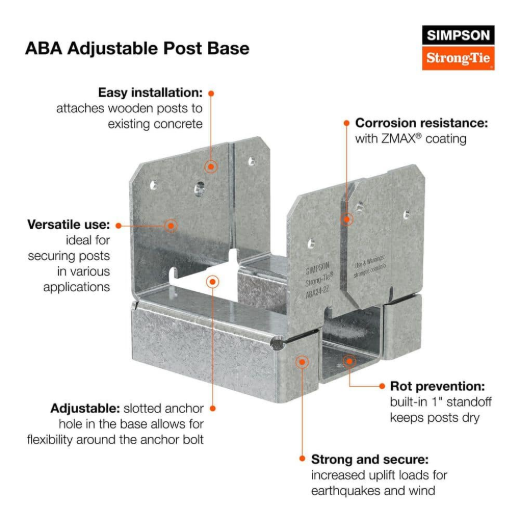

Features

  • Constructed from heavy-duty 14-gauge steel for long-lasting stability.
  • Slotted base allows for minor adjustments to ensure proper post placement.
  • Ideal for both retrofit and new construction projects like decks and patio covers.
  • ZMAX finish offers superior corrosion resistance for exterior applications.

Includes

  • ABA66Z Post Base Unit
Products specifications
Model Number ABA66Z
Post Size 6x6 Nominal
Material 14-Gauge Steel
Finish ZMAX Galvanized
Standoff Height 1 Inch
Base Width 5.5 Inches
Base Length 5.375 Inches
Base Height 3.125 Inches
Uplift Load 850 lbs
Download Load 10,245 lbs
*
*
*
