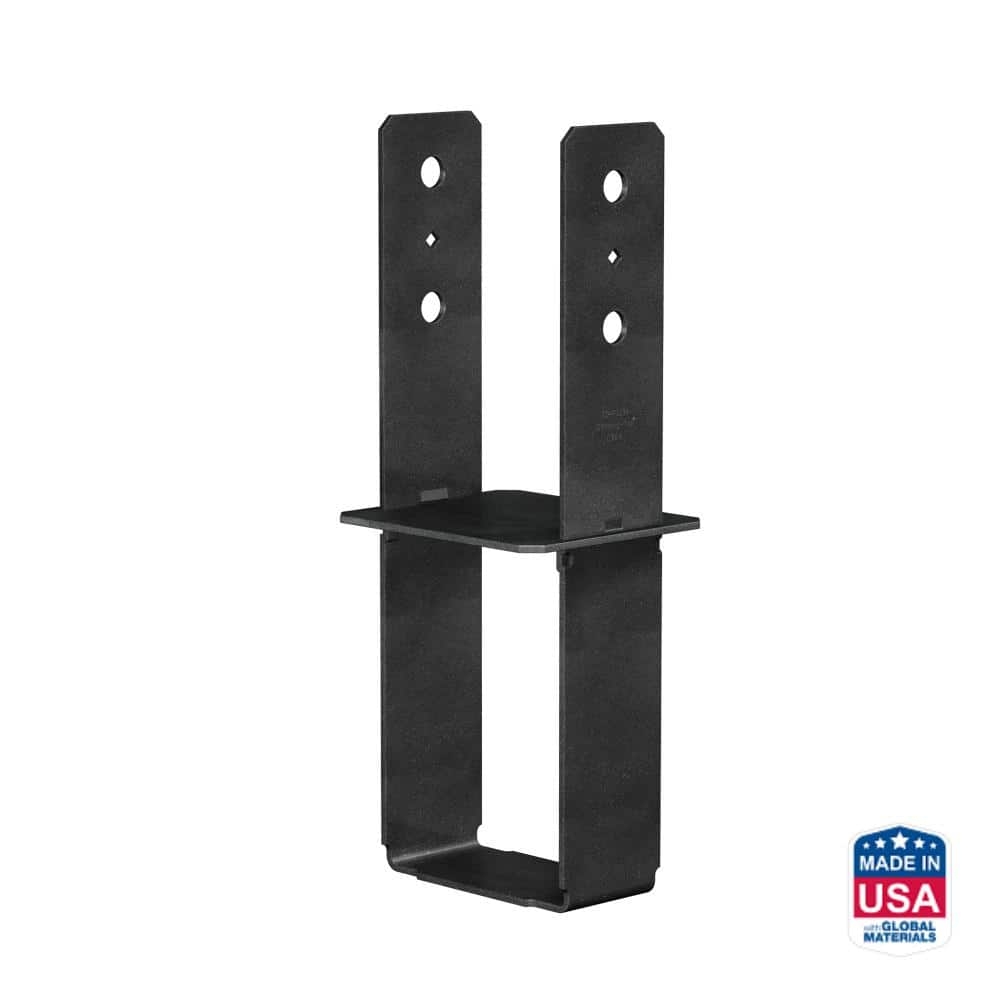

Simpson 6X6 Column Base Black

Mfr.: Simpson Strong-Tie
Item #: I090934
Mfr. #: CB66PC
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $103.25
i h h

Description

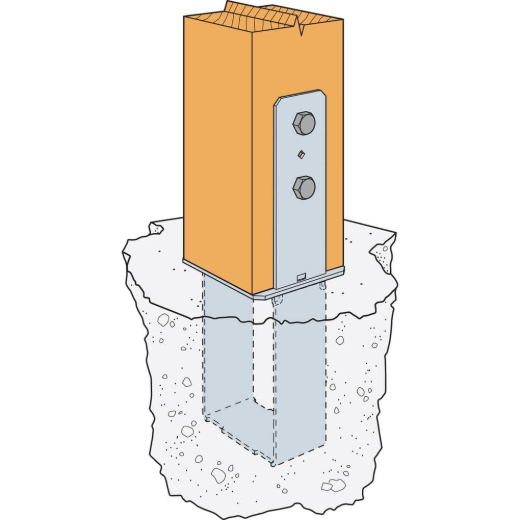

The Simpson Strong-Tie CB66PC is a high-strength column base designed to connect 6x6 wood posts to concrete foundations with exceptional structural integrity. It features a premium black powder-coated finish that provides an attractive, architectural look for exposed-wood projects while offering superior corrosion resistance. This cast-in-place connector is engineered to prevent post rotation and provides significant uplift resistance for wind and seismic loading.
  • Flat black powder-coated finish for a durable, professional look.
  • Heavy-duty 7-gauge steel construction.

Features

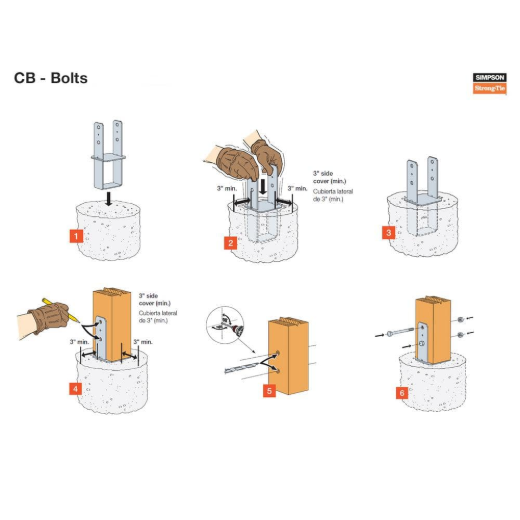

  • Designed for cast-in-place or wet-set installation into concrete foundations.
  • Base plate sits flush with concrete to ensure full post bearing.
  • Bolt hole locations meet code-required spacing for optimal load capacity.

Includes

  • (1) Black Powder-Coated Column Base
Products specifications
Material 7-Gauge Steel
Finish Black Powder Coated
Post Size 6x6 Nominal
Fasteners Required (2) 5/8 inch Machine Bolts
Installation Cast-in-Place / Wet-Set
Actual Width 5-1/2 inch
Base Plate Width 6-3/8 inch
Series CB Series
*
*
*
