Simpson 6X6 Column Base Standoff

Mfr.: Simpson Strong-Tie
Item #: I090987
Mfr. #: CBSTQ66Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $68.23
i h h

Description

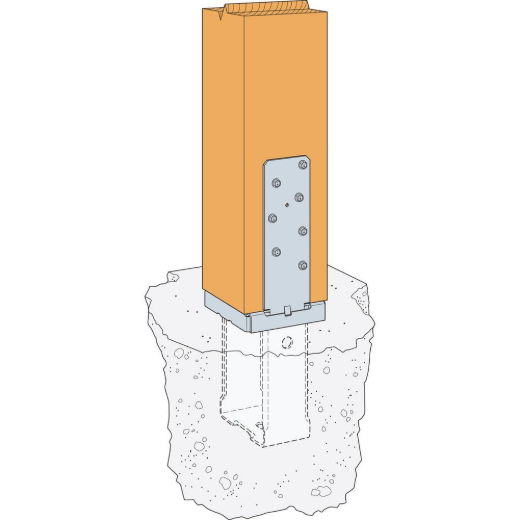

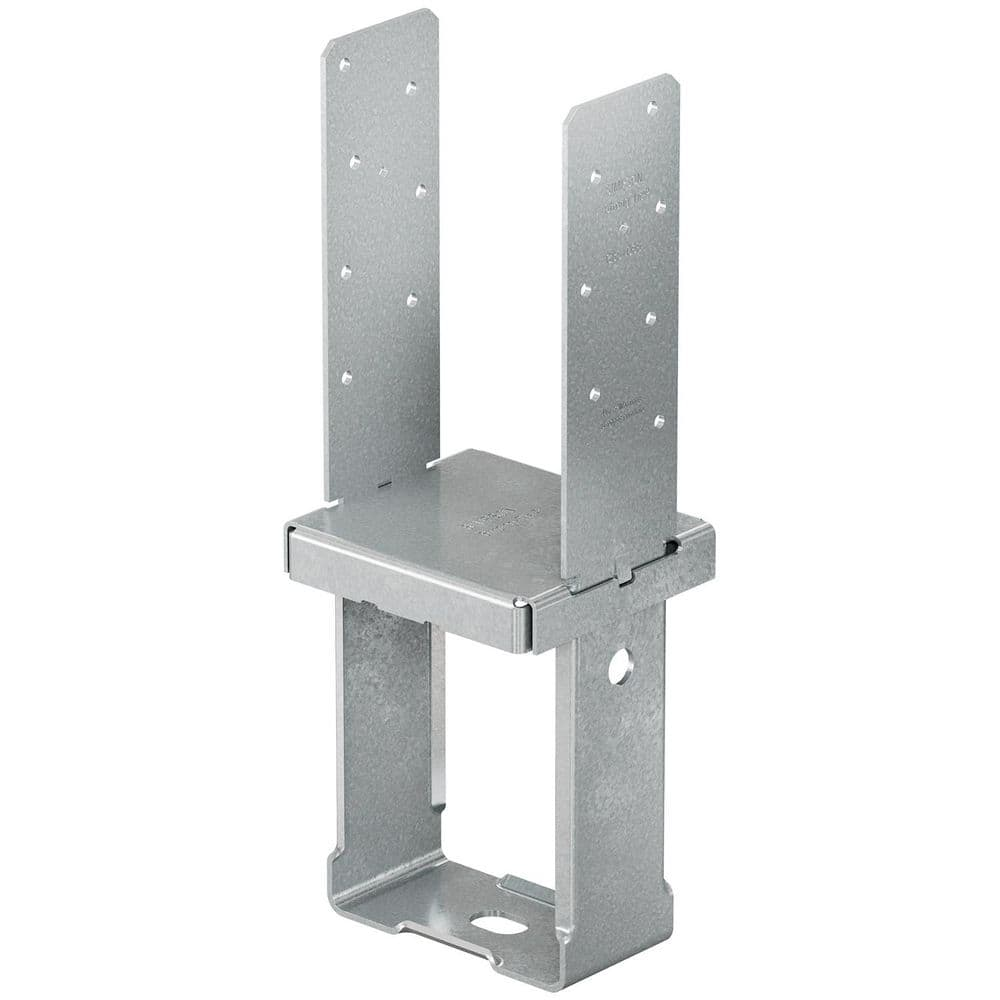

The Simpson Strong-Tie CBSTQ66Z is a high-performance, cast-in-place column base engineered to provide a robust connection between 6x6 wood posts and concrete foundations. It features a code-required 1-inch standoff that elevates the post above the concrete to protect against moisture and prevent post-end rot. This model is designed as a replacement for most CBSQ models, offering enhanced strength and easier installation for residential and light commercial projects.
  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design

Features

  • Equipped with S-shaped bearing tabs that provide increased download capacity and structural stability.
  • Constructed from heavy-duty 12-gauge steel for the base and 10-gauge steel for the straps.

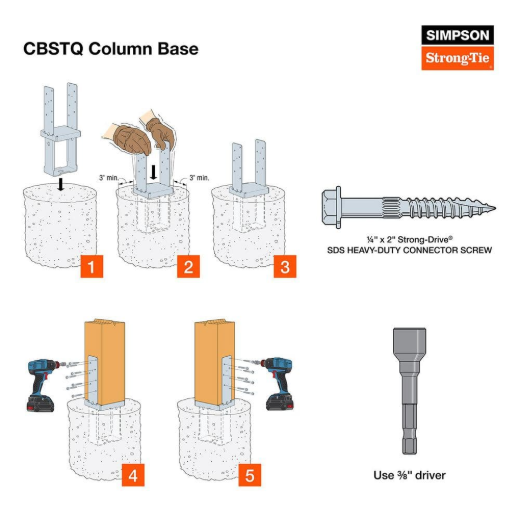

  • Uses Strong-Drive SDS Heavy-Duty Connector screws for a greater wood net section than traditional bolts.
  • ZMAX finish provides superior corrosion resistance for exterior and treated-wood applications.

Includes

  • CBSTQ66Z Column Base
Products specifications
Nominal Post Size 6x6
Material Carbon Steel
Finish ZMAX (Galvanized)
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Height 8-3/4 inch
Width (W1W2) 5-1/2 inch
Depth 6-7/8 inch
Fasteners Required (14) 1/4 inch x 2 inch SDS Screws
Series Replacement Replaces CBSQ series
*
*
*
