Simpson 6x6 Column Base Standoff CBST66Z

Mfr.: Simpson Strong-Tie
Item #: I090979
Mfr. #: CBST66Z
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $71.08
i h h

Description

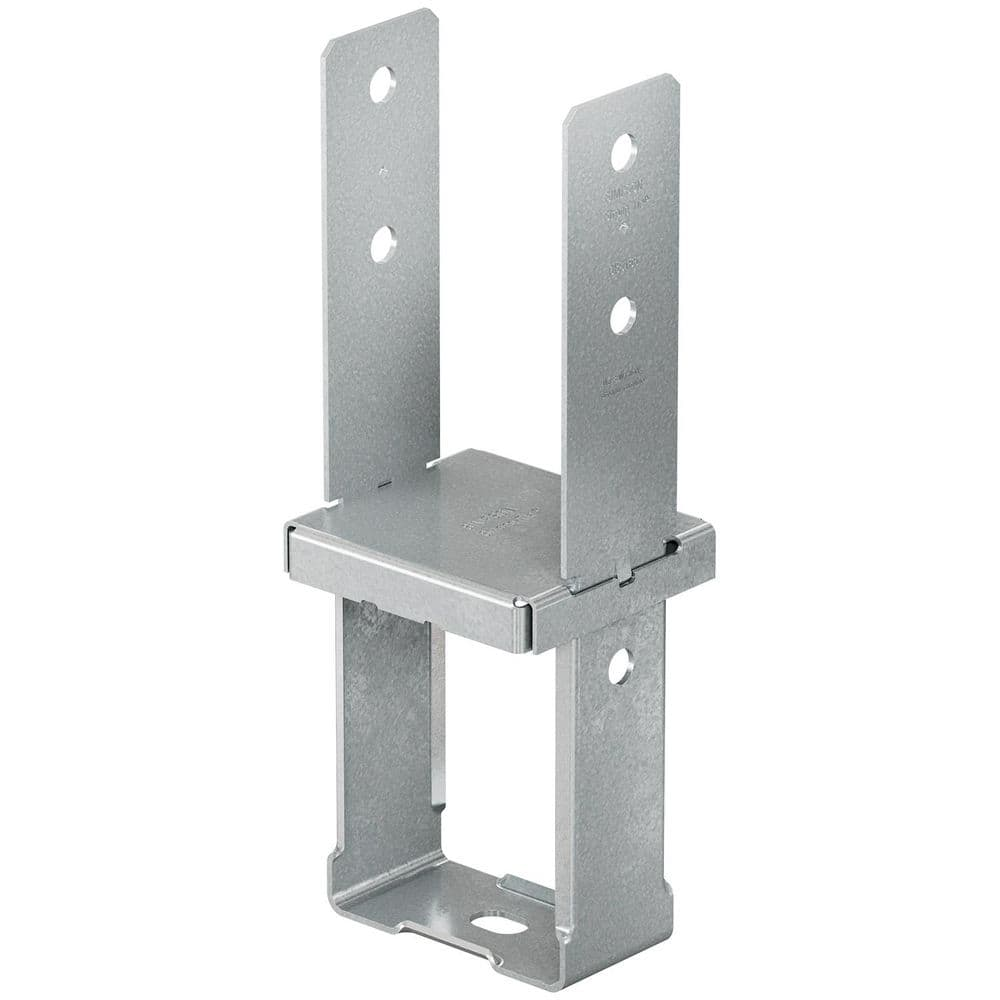

The Simpson Strong-Tie CBST66Z is a high-performance cast-in-place column base designed to securely anchor 6x6 wood posts to concrete foundations. It features a code-required 1-inch standoff that lifts the post above the concrete surface, effectively protecting the wood from moisture-related rot and decay. Engineered for residential and light commercial construction, this durable connector provides increased download capacity and stability for a variety of outdoor structures.
  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design

Features

  • S-shaped bearing tabs provide increased strength and allow for higher download capacities.

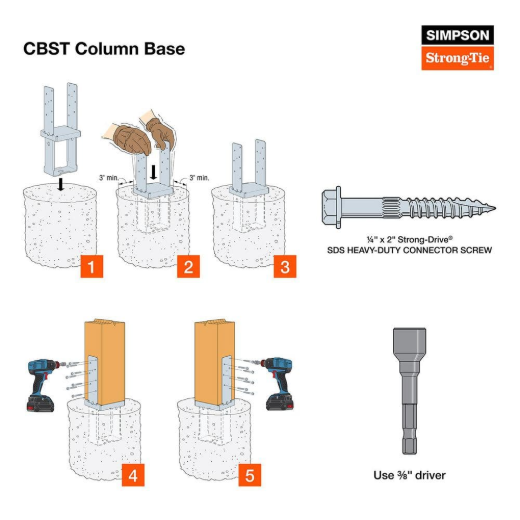

  • Cast-in-place installation ensures a secure and permanent connection to concrete foundations.
  • ZMAX coating offers enhanced corrosion resistance for exterior and treated-wood applications.
  • Serves as a high-capacity replacement for the older CBS model series.

Includes

  • (1) CBST66Z ZMAX Standoff Column Base
Products specifications
Material Carbon Steel
Finish ZMAX Galvanized
Nominal Post Size 6x6
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Height 8-3/4 inch
Required Fasteners (2) 5/8-in Machine Bolts
*
*
*
