Simpson 6x6 Column Base Standoff HDG

Mfr.: Simpson Strong-Tie
Item #: I090978
Mfr. #: CBST66HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $92.81
i h h

Description

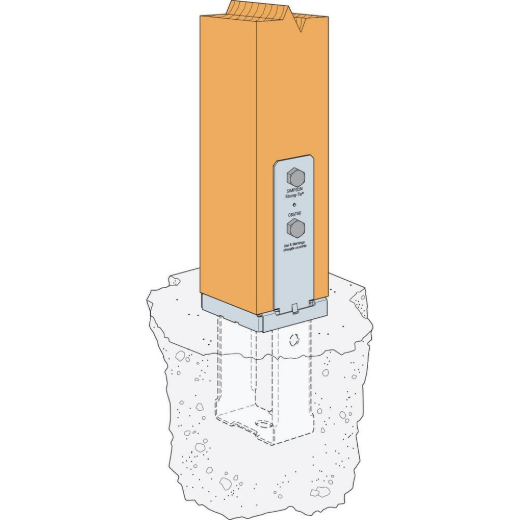

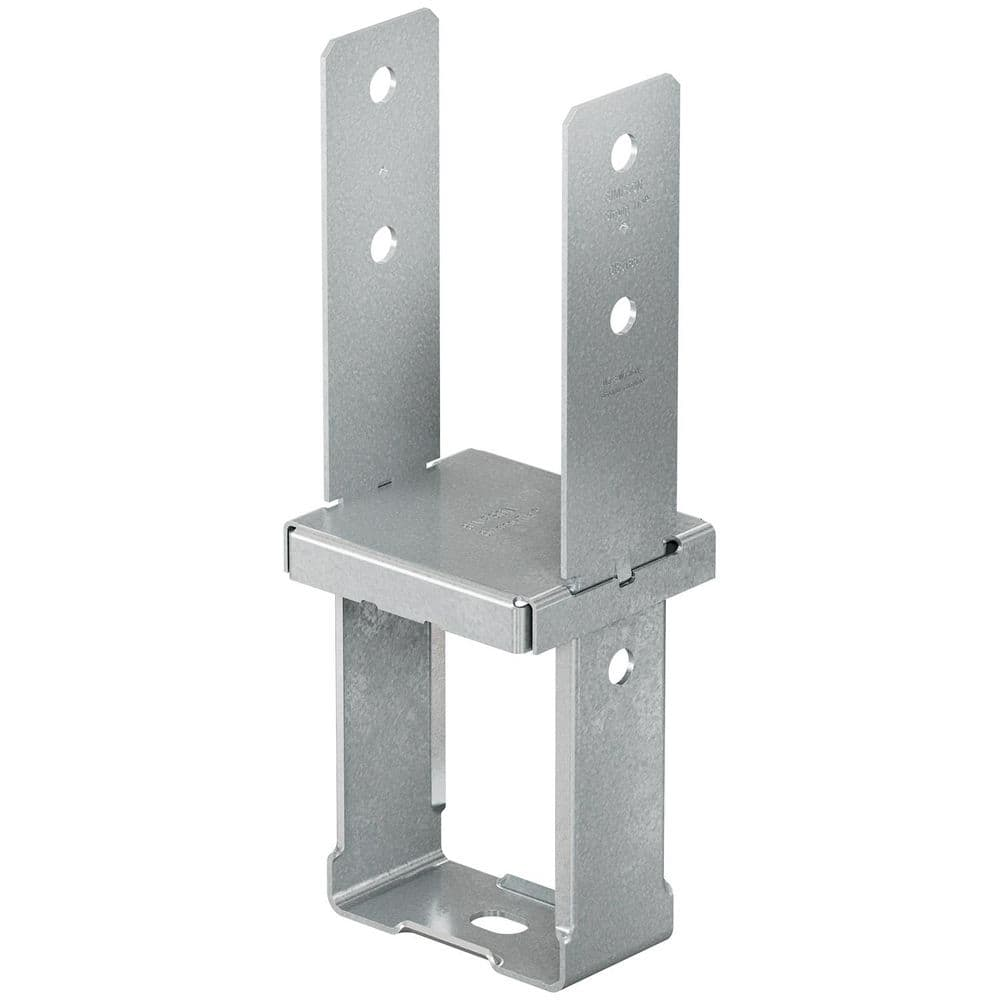

The Simpson Strong-Tie CBST66HDG is a cast-in-place column base engineered to provide a robust connection between 6x6 wood posts and concrete foundations. As the modern successor to the discontinued CBS series, it incorporates S-shaped bearing tabs that significantly increase download capacity and overall structural stability. The integrated 1-inch standoff design elevates the post above the concrete, effectively preventing moisture accumulation and reducing the risk of wood rot. Its heavy-duty steel construction is finished with hot-dip galvanization, offering exceptional corrosion protection for exterior and treated-wood applications.
  • 1-inch Code-Required Standoff
  • S-Shaped Bearing Tabs
  • Hot-Dip Galvanized Finish

Features

  • Improved successor to the legacy CBS series models
  • High download capacity for residential and light commercial use
  • Constructed from 10-gauge straps and a 12-gauge base
  • Meets code requirements for posts exposed to weather

Includes

  • (1) CBST66HDG Standoff Column Base
Products specifications
Manufacturer Simpson Strong-Tie
Model Number CBST66HDG
Post Size 6x6 Nominal
Material Carbon Steel
Finish Hot-Dip Galvanized
Base Thickness 12 Gauge
Strap Thickness 10 Gauge
Fasteners Required (2) 5/8-in Machine Bolts
Standoff Height 1 inch
Overall Height 8-3/4 inches
*
*
*
