Simpson 6X6 Column Base Standoff Hdg With Screws

Mfr.: Simpson Strong-Tie
Item #: I090986
Mfr. #: CBSTQ66-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $110.71
i h h

Description

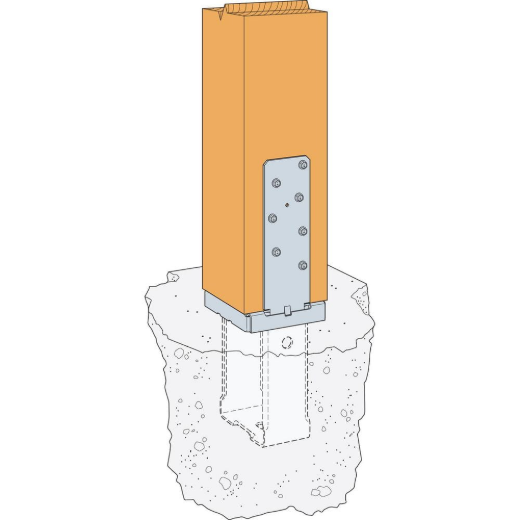

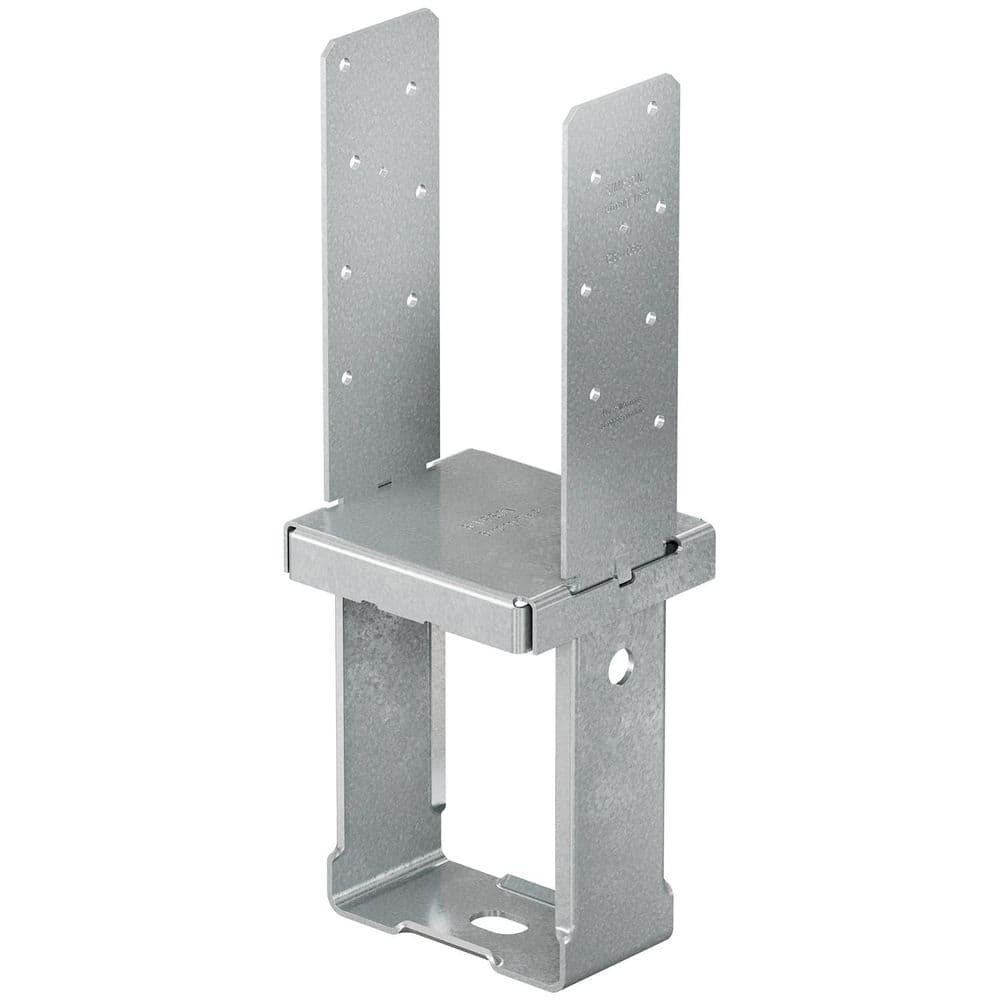

The Simpson Strong-Tie CBSTQ66-SDS2HDG is a cast-in-place column base engineered to provide high-capacity connections for 6x6 wood posts in residential and light commercial construction. Part of the CBSTQ series, this product acts as a successor to the CBSQ series, offering enhanced structural stability and higher download capacities. It features a code-required 1-inch standoff to protect the post from moisture and prevent wood rot at the base.
  • Hot-Dip Galvanized Finish
  • 1-Inch Standoff Design

Features

  • S-shaped bearing tabs provide increased strength and higher download capacity.

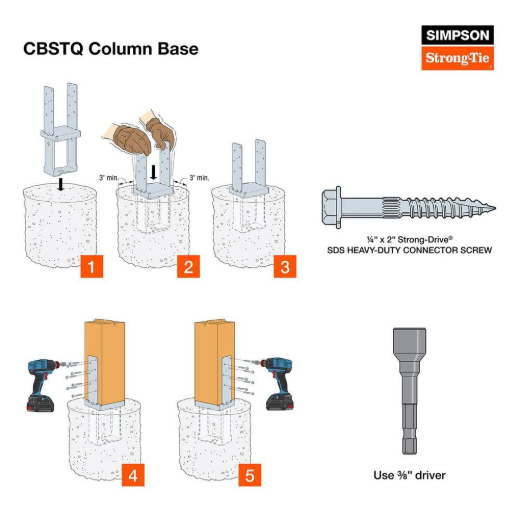

  • Installs quickly with included Strong-Drive SDS screws, eliminating the need for through-bolting.

Includes

  • (1) Quick-Install Column Base
  • (14) 1/4 inch x 2 inch Strong-Drive SDS Connector Screws
Products specifications
Finish Hot-Dip Galvanized
Material Carbon Steel
Post Size 6x6
Base Gauge 12 Gauge
Strap Gauge 10 Gauge
Height 8-3/4 inch
Width 5-1/2 inch
Installation Type Cast-In-Place
Fasteners (14) 1/4 inch x 2 inch SDS Screws
*
*
*
