Simpson 6x6 Column Base Standoff HDG w/Screws

Mfr.: Simpson Strong-Tie
Item #: I090969
Mfr. #: CBSQ66-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $98.84
i h h

Description

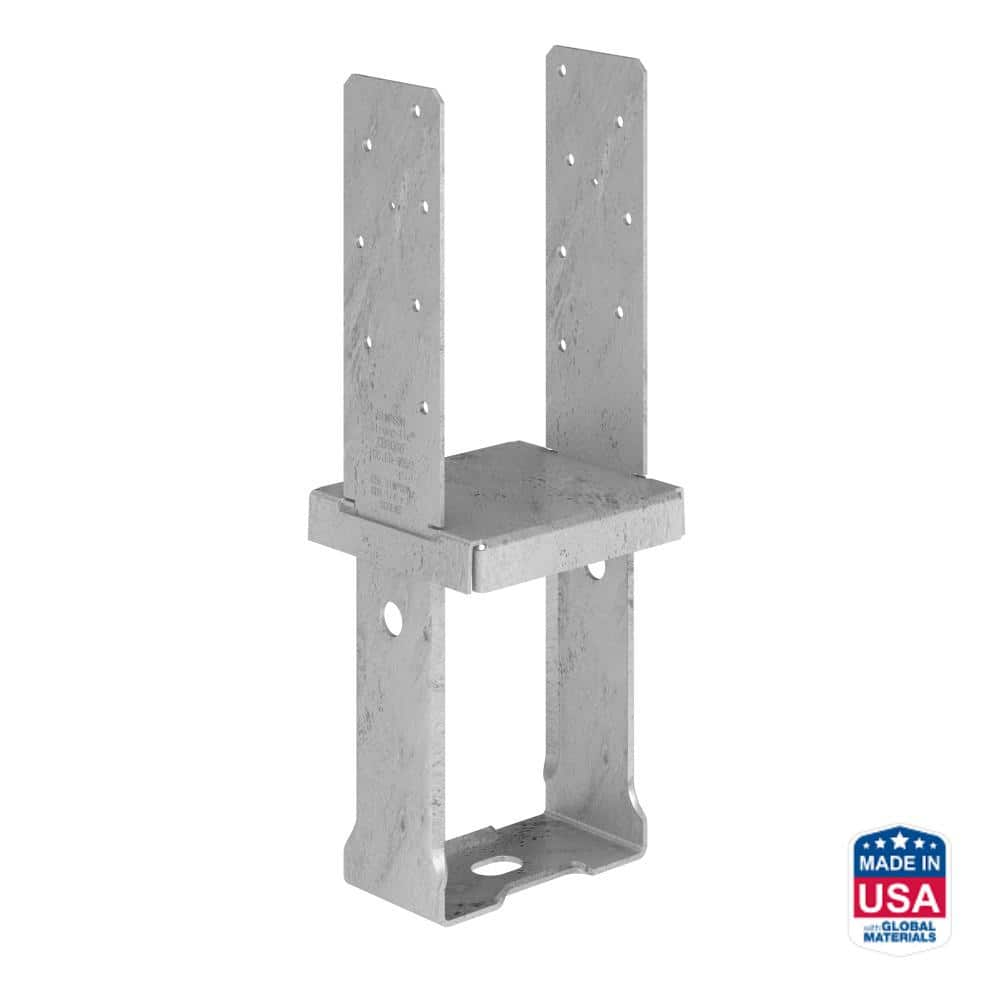

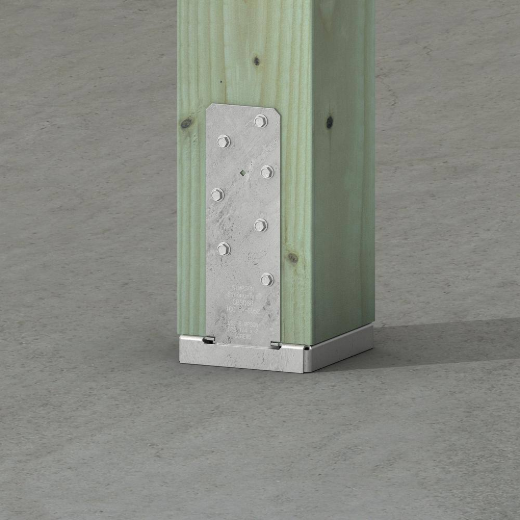

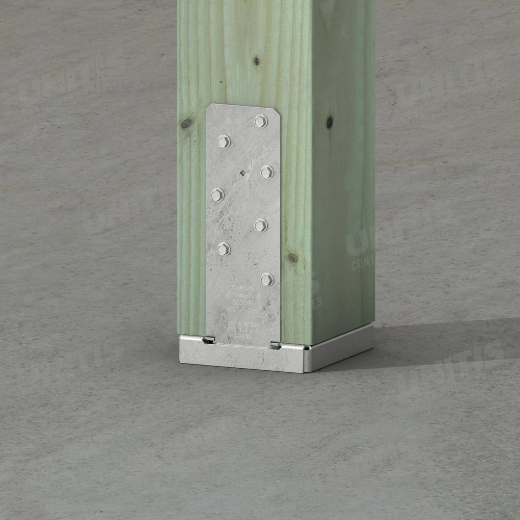

The Simpson Strong-Tie CBSQ66-SDS2HDG is a heavy-duty standoff column base designed to secure 6x6 wood posts to concrete foundations while providing a 1-inch moisture barrier. This wet-set connector uses high-strength Strong-Drive SDS screws for a faster, easier installation compared to traditional bolts, ensuring structural integrity and compliance with building codes. Please note that the CBSQ series has been discontinued and replaced by the CBSTQ series, though it remains a robust solution for transmitting structural stresses to the foundation.
  • Hot-Dip Galvanized Protection
  • Fast SDS Screw Installation

Features

  • 1 inch standoff meets building codes to prevent post decay.

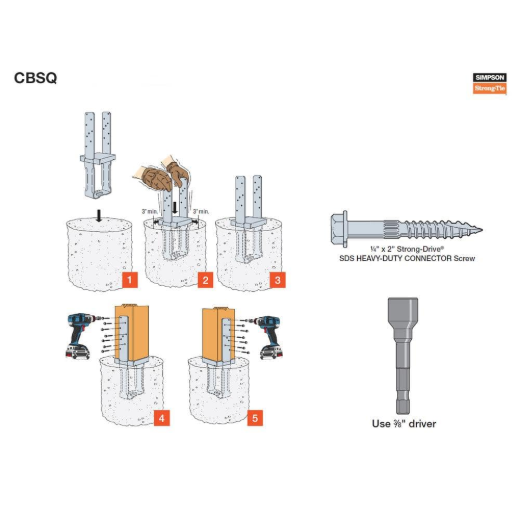

  • Engineered for wet-set installation in fresh concrete.
  • Heavy-gauge steel construction for superior durability.

Includes

  • 1 x CBSQ66 Column Base Standoff
  • Strong-Drive SDS 1/4 inch x 2 inch Connector Screws
Products specifications
Material Heavy Gauge Steel
Finish Hot-Dip Galvanized
Post Size 6x6
Base Gauge 12
Strap Gauge 10
Standoff Height 1 inch
Min. Embedment 6-7/8 inches
Fastener Type SDS Connector Screws
*
*
*
