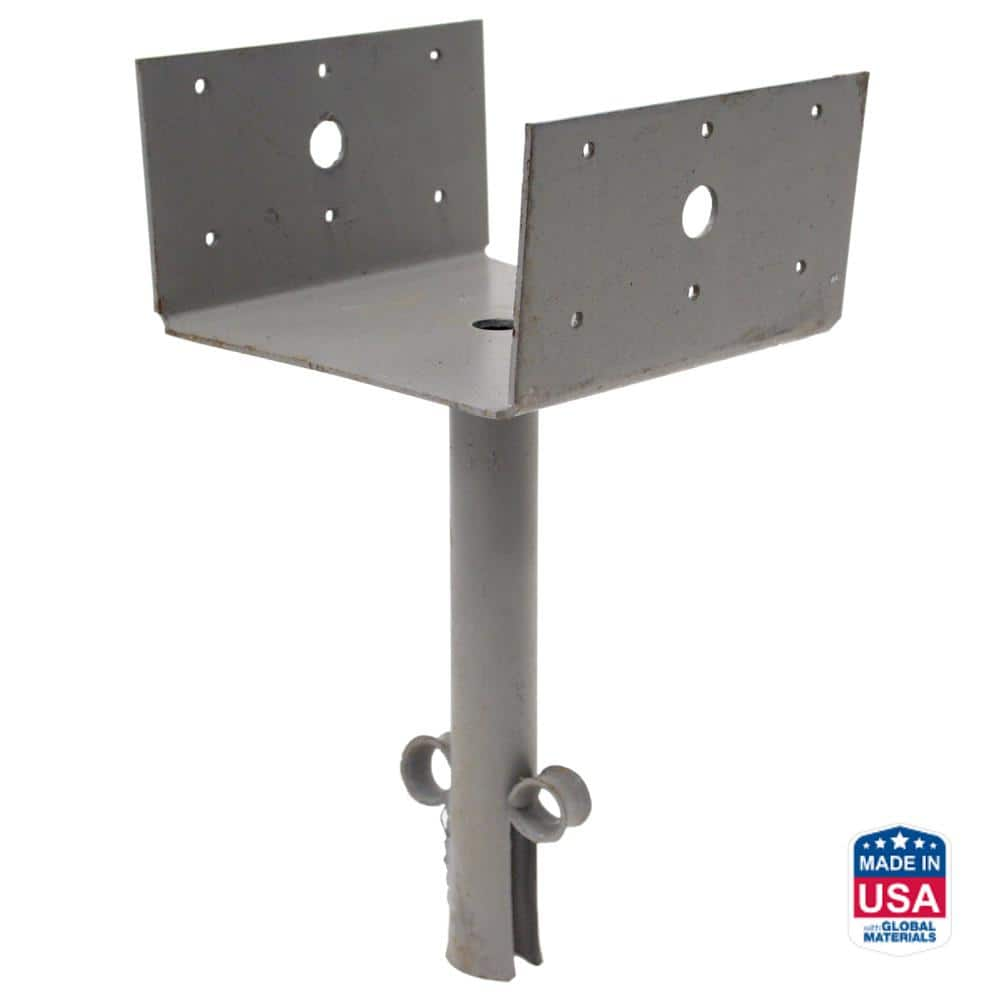

Simpson 6X6 Elevated Post Base

Mfr.: Simpson Strong-Tie
Item #: I091007
Mfr. #: EPB66
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $35.67
i h h

Description

The Simpson Strong-Tie EPB66 is a high-performance 6x6 elevated post base designed to provide exceptional stability for residential and commercial construction. It is engineered for cast-in-place installation in wet concrete, creating a rock-solid foundation for wood posts and columns. The integrated 1-inch standoff ensures compliance with building codes while protecting the post from ground moisture and rot. This durable connector is an ideal choice for decks, patio covers, and other top-supported outdoor structures.
  • Heavy-Gauge Steel Construction
  • Gray Painted Finish

Features

  • Provides the code-required 1-inch standoff to prevent post-end decay.

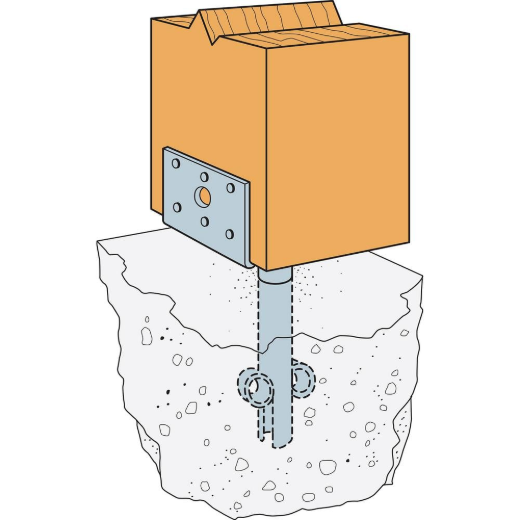

  • Cast-in-place design ensures a secure and permanent connection to concrete.
  • Adjustable standoff height up to 2-1/2 inches above the concrete surface.
  • Specifically designed for 6x6 nominal wood posts.

Includes

  • 1 x EPB66 Elevated Post Base
Products specifications
Material 12-Gauge Steel
Finish Gray Paint
Post Size 6x6
Base Dimensions 5-1/2-in x 5-1/2-in
Required Fasteners (12) 0.162-in x 3-1/2-in Nails
Weight Capacity (Down) 3465 lbs
Uplift (Uncracked) 995 lbs
Uplift (Cracked) 695 lbs
Pipe Diameter 1-1/16-in O.D.
Pipe Length 8-in
*
*
*
