Simpson 6X6 Post Base

Mfr.: Simpson Strong-Tie
Item #: I091027
Mfr. #: PB66
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $25.92
i h h

Description

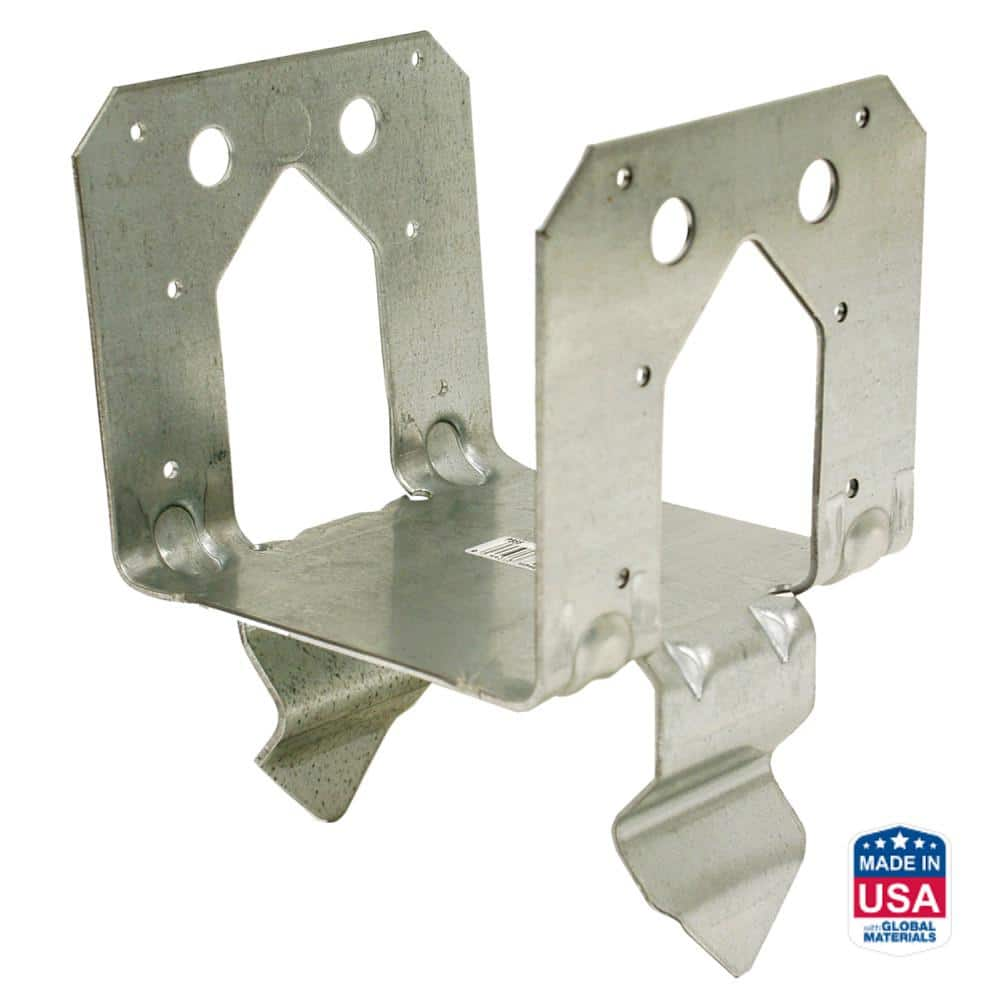

The Simpson Strong-Tie PB66 is a high-strength post base designed to provide a secure wood-to-concrete connection for 6x6 nominal posts. Engineered for cast-in-place installation, this 12-gauge steel base embeds directly into wet concrete to provide a stable foundation for decks, patio covers, and other top-supported structures. Its non-standoff design allows for a clean, flush-to-concrete finish while maintaining the structural integrity of the post.
  • G90 Galvanized Steel Finish

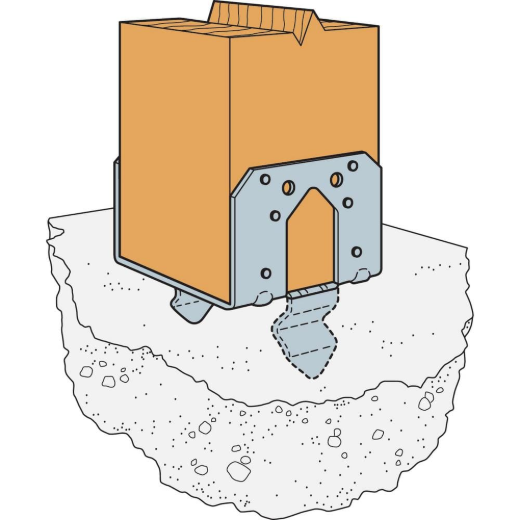

  • Cast-In-Place Design

Features

  • Embossment in the seat of the base provides increased strength and load-bearing capacity.
  • Stress relief holes under the base are designed to resist tearing during heavy loading.

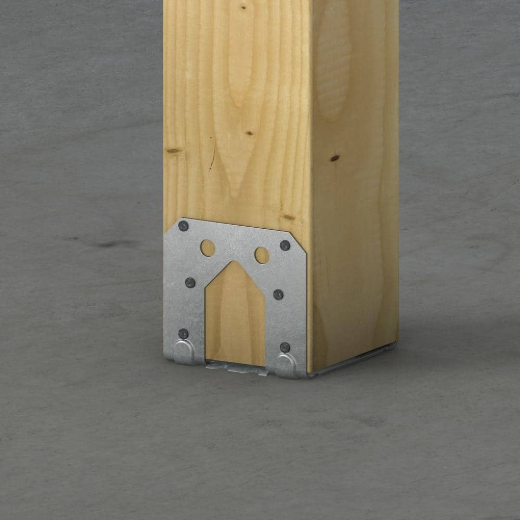

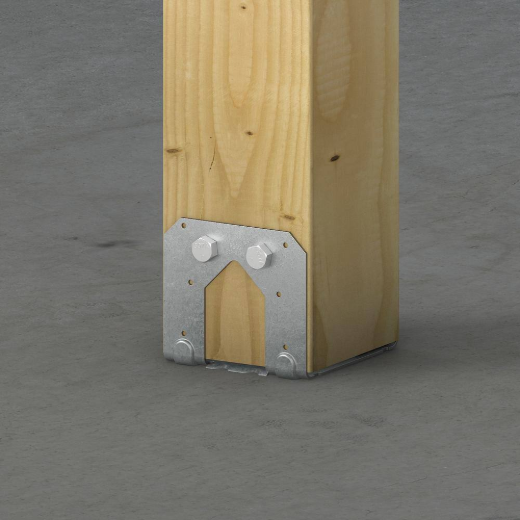

  • Compatible with both nails or 1/2-inch bolts for flexible installation options.
  • Designed for use in top-supported structures where lateral rotation resistance is provided.

Includes

  • (1) PB66 6x6 Post Base
Products specifications
Material 12-Gauge Steel
Finish G90 Galvanized
Post Size 6x6 Nominal
Connection Type Cast-In-Place
Fasteners (Nails) (12) 0.162 inch x 3-1/2 inch Nails
Fasteners (Bolts) (2) 1/2 inch Bolts
Min. Side Cover 2 Inches
Product Series PB Post Base Series
*
*
*
