Simpson 6x6 Post Base Stand Off

Mfr.: Simpson Strong-Tie
Item #: I091033
Mfr. #: PBS66
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $40.72
i h h

Description

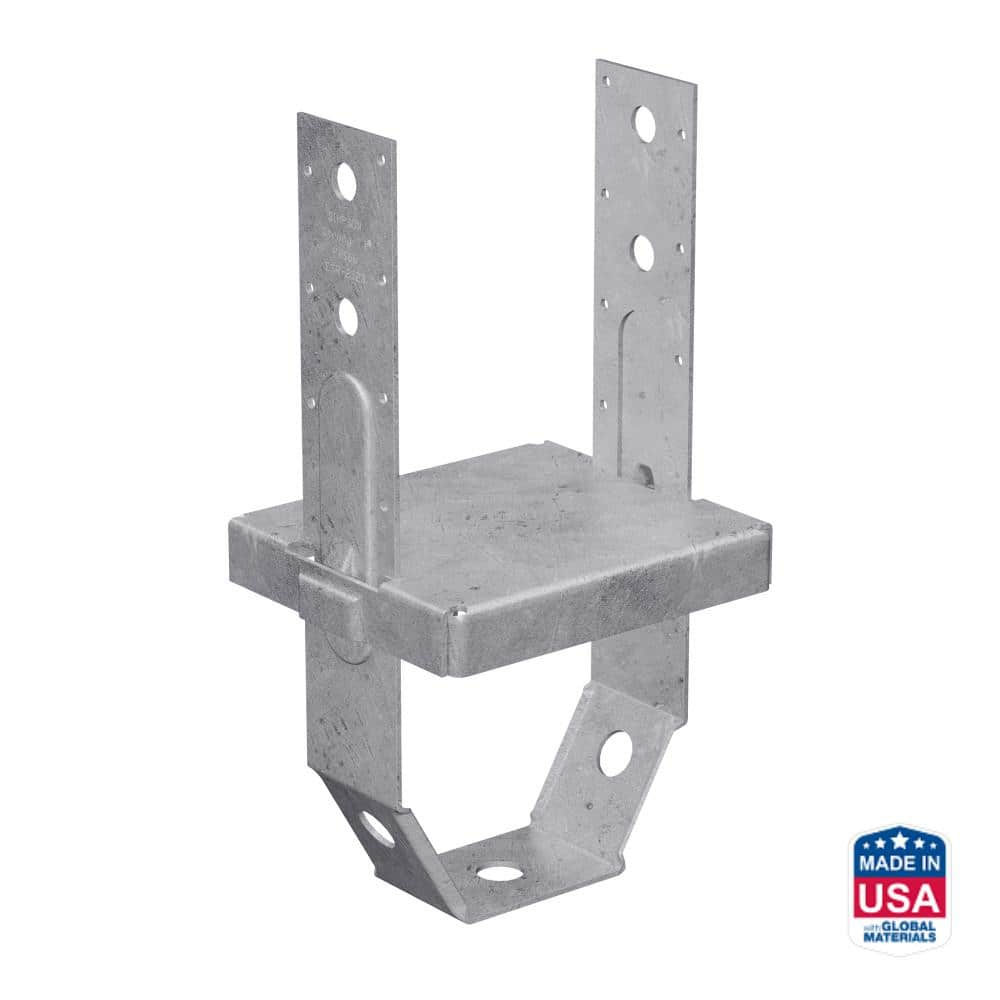

The Simpson Strong-Tie PBS66 is a heavy-duty post base designed to secure 6x6 wood posts to concrete foundations. Engineered for cast-in-place applications, it provides a high-strength connection suitable for decks, patio covers, and other top-supported structures. The integrated 1-inch standoff height ensures the post remains elevated above standing water, significantly reducing the risk of moisture-induced decay and meeting building code requirements.
  • G90 Galvanized Finish
  • 12-Gauge Steel Construction

Features

  • Features a 1-inch standoff to prevent rot and decay at the post base.

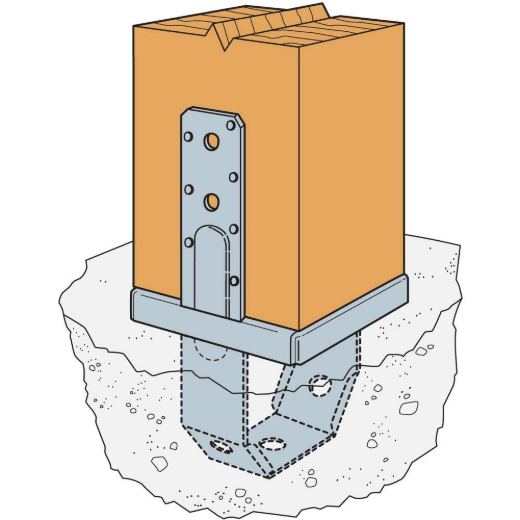

  • Designed for installation into wet concrete for a secure cast-in-place attachment.
  • Holes in the bottom of the straps allow for free concrete flow during installation.

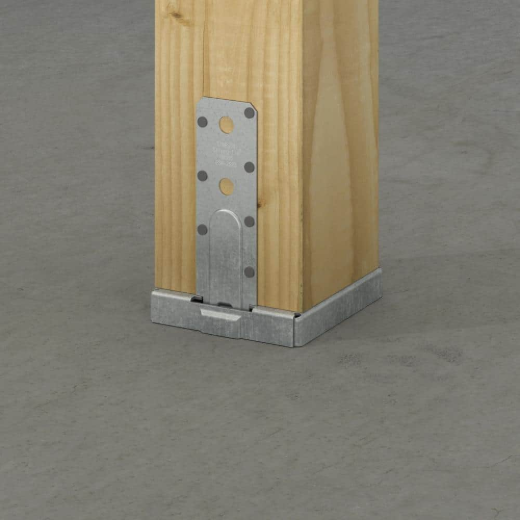

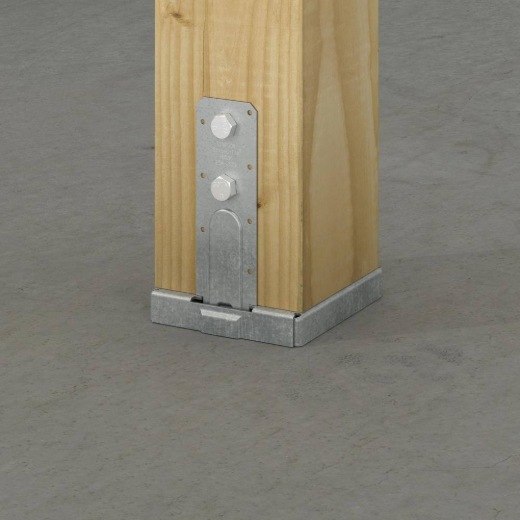

  • Compatible with 16d common nails or 1/2-inch diameter machine bolts for versatile fastening.

Includes

  • (1) PBS66 6x6 Post Base Stand Off
Products specifications
Model PBS66
Post Size 6x6
Material 12-Gauge Steel
Finish G90 Galvanized
Standoff Height 1 Inch
Fasteners Required 14 Nails or 2 Bolts
Width 5-1/2 Inches
Length 5-3/8 Inches
Height 6-1/2 Inches
Application Cast-in-Place
*
*
*
