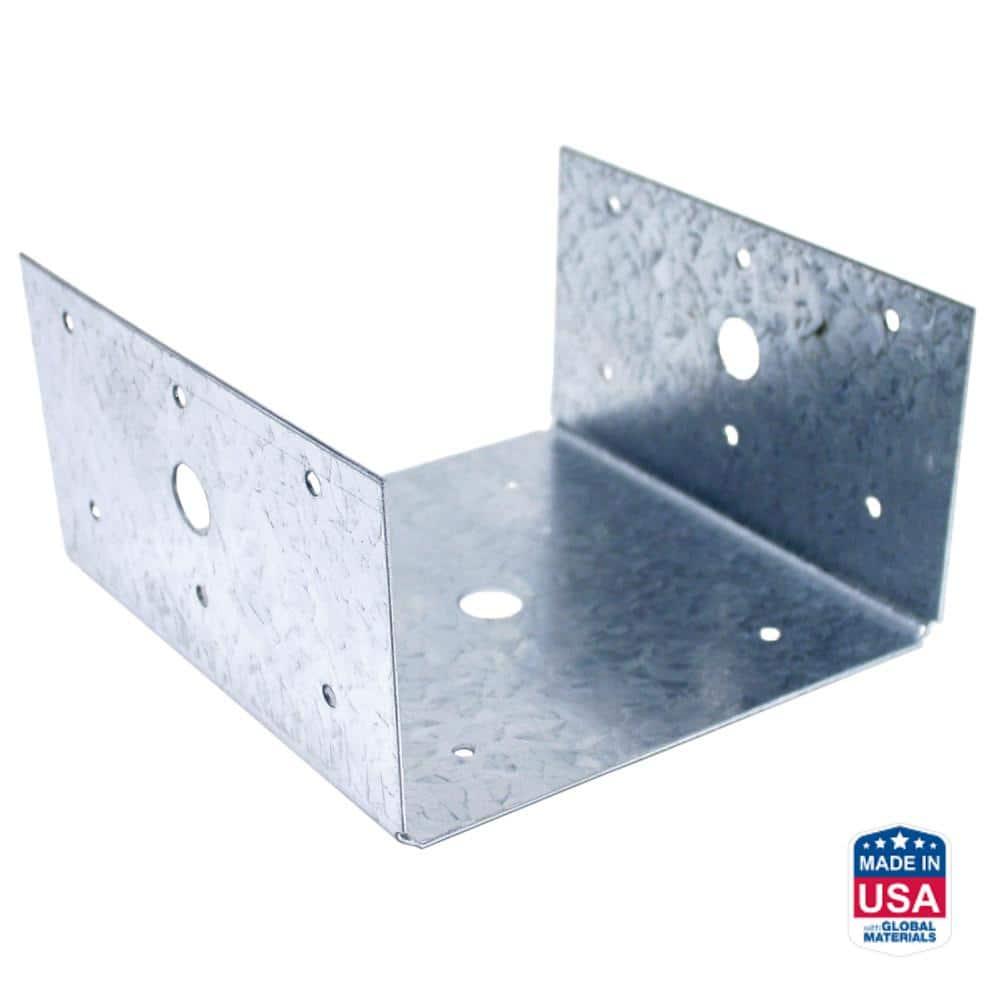

Simpson 6x6 Post Cap

Mfr.: Simpson Strong-Tie
Item #: I090909
Mfr. #: BC60
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $19.36
i h h

Description

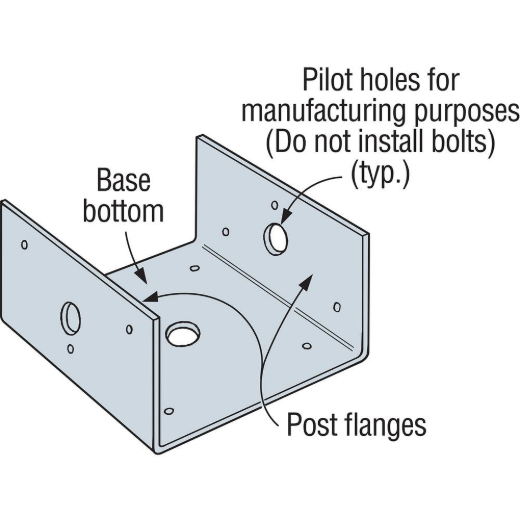

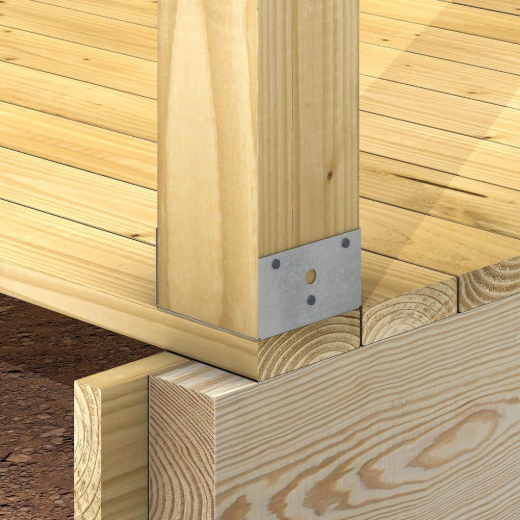

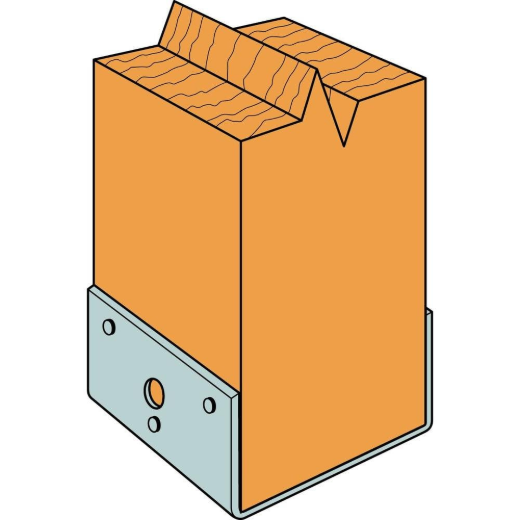

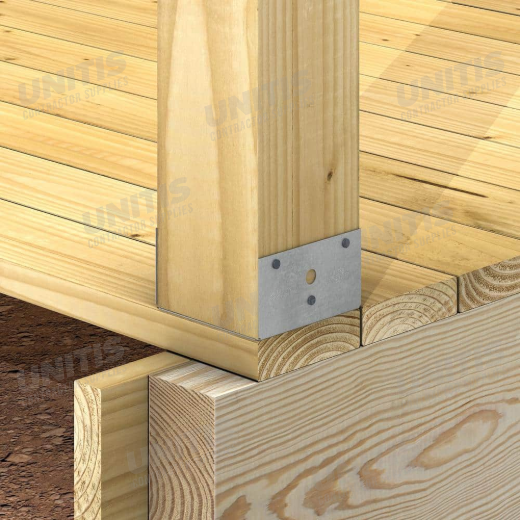

The Simpson Strong-Tie BC60 is a versatile post cap designed to provide a secure connection between a 6x6 nominal post and a beam. This connector is ideal for a variety of projects, including decks, patio covers, and other outdoor structures where a strong post-to-beam interface is required. Its dual-purpose design allows for easy installation on both end-of-beam and mid-span applications, ensuring structural integrity and long-lasting performance.
  • 18-Gauge Steel Construction
  • Galvanized Finish

Features

  • Provides a reliable connection for nominal 6x6 lumber
  • Specifically designed to resist uplift and lateral forces
  • Can be installed with 16d common nails for maximum load capacity
Products specifications
Model No BC60
Post Size 6x6 Nominal
Material 18-Gauge Steel
Finish Galvanized
Uplift DFSP 1045 lbs
Lateral DFSP 1025 lbs
Fasteners (Post) (6) 16d Nails
Fasteners (Beam) (6) 16d Nails
Product Type Post Cap
*
*
*
