Simpson 6X8 Column Base

Mfr.: Simpson Strong-Tie
Item #: I090938
Mfr. #: CB68
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $60.94
i h h

Description

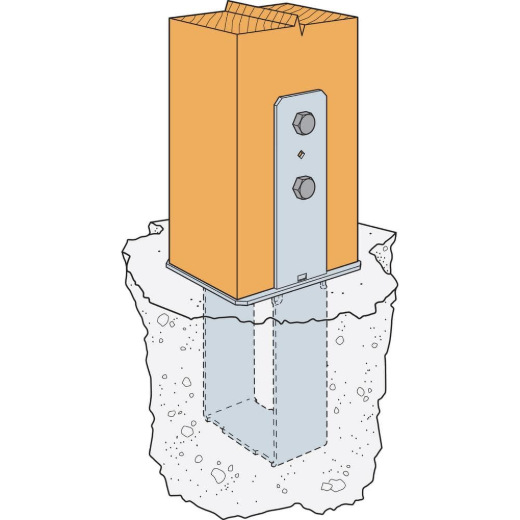

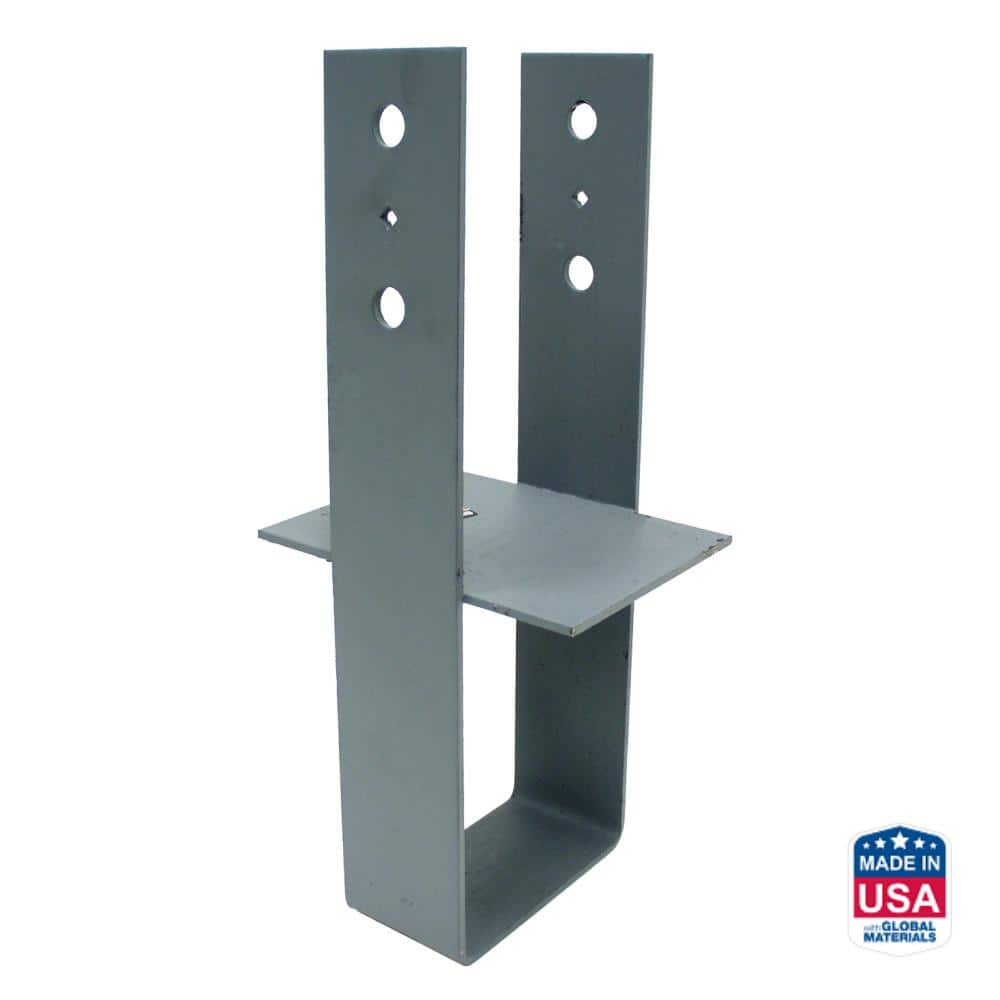

The Simpson Strong-Tie CB68 is a high-performance column base designed to provide a secure connection between 6x8 wood posts and concrete foundations. It is ideal for structural applications that require rugged performance and high load capacities in both new construction and retrofit projects. This heavy-duty connector ensures the bottom of the post sits flush with the concrete for maximum bearing support.
  • G90 Galvanized Finish
  • Heavy 7-Gauge Steel

Features

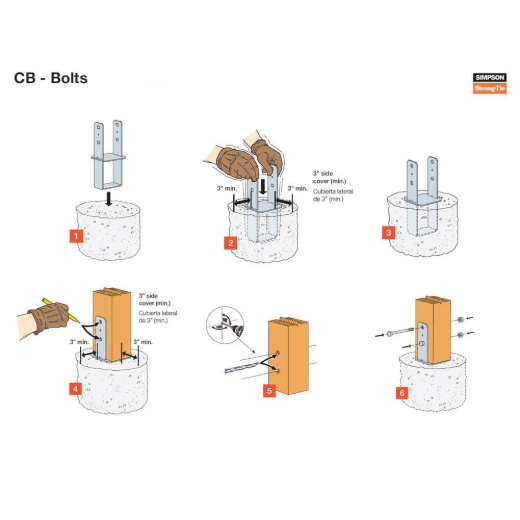

  • Designed for cast-in-place or wet-set installation into concrete foundations.
  • Provides increased uplift resistance to help withstand wind and seismic loading.
  • Bolt hole locations are precision-engineered to meet code-required spacing.
  • Flat base plate design allows for full bearing of the post on the concrete surface.
Products specifications
Brand Simpson Strong-Tie
Model Number CB68
Material Heavy Gauge Steel
Finish G90 Galvanized
Gauge 7 Gauge
Nominal Post Size 6x8
Fastener Type 5/8 inch Machine Bolt
Installation Cast-in-Place / Wet-set
Uplift Resistance High Capacity
*
*
*
