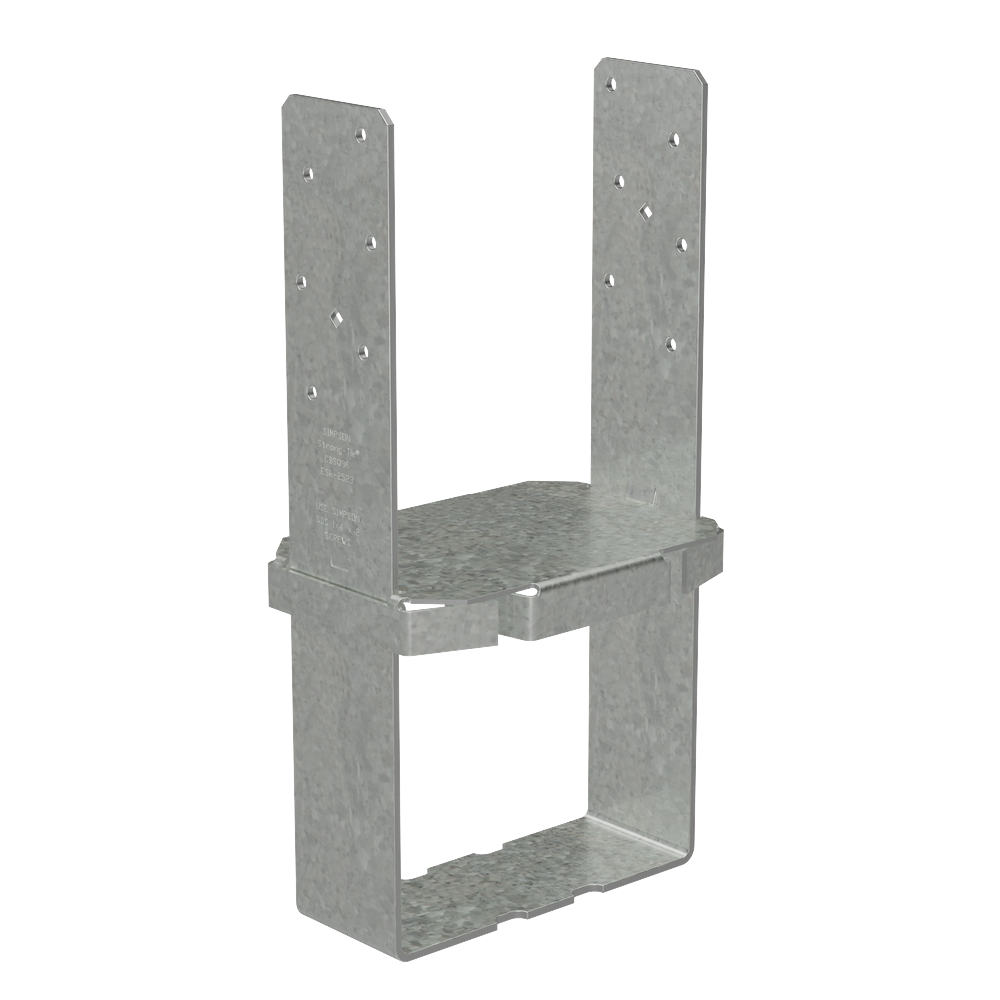

Simpson CBSQ 8x6 Standoff Column Base

Mfr.: Simpson Strong-Tie
Item #: I090970
Mfr. #: CBSQ86
*
Pickup at Corona | Change Delivering to 92111 | Change

Availability:
Price: $159.09
i h h

Description

The CBSQ86 is a 6x8 column base designed to link columns to concrete footings, transmitting structural stresses to the foundation. It includes Strong-Drive SDS Heavy-Duty Connector screws for fast installation and a 1-inch standoff to meet code requirements.
  • 1-inch standoff meets code for structural posts in basements or exposed to weather
  • Includes Strong-Drive SDS Heavy-Duty Connector screws for faster installation
  • Provides greater net section area of column than bolts
  • Galvanized finish; some models available in HDG or stainless steel

Features

  • Material: 12 ga. base, 7 ga. x 3 in. strap
  • Dimensions: W1=7.5 in., W2=5.375 in., D=6.125 in., H=8.6875 in.
  • Fasteners: (12) 1/4 in. x 2 in. SDS screws included
  • DF/SP allowable uplift loads: 3,815 lb (uncracked concrete), 2,670 lb (cracked concrete)
  • Seismic/wind uplift loads: 3,340 lb (uncracked), 2,335 lb (cracked)

Includes

  • Strong-Drive SDS Heavy-Duty Connector screws (1/4 in. x 2 in.)

Specifications


ModelCBSQ86-SDS2Nominal Column Size6x8
Material12 ga. base, 7 ga. x 3 inch strapFinishGalvanized
Dimensions (W1)7.5 inchDimensions (W2)5.375 inch
Dimensions (D)6.125 inchDimensions (H)8.6875 inch
Fasteners(12) 1/4 inch x 2 inch SDSDFSP Allowable Uplift (Uncracked)3,815 lb
DFSP Allowable Uplift (Cracked)2,670 lbSeismicWind Uplift (Uncracked)3,340 lb
SeismicWind Uplift (Cracked)2,335 lbLateral Load (F1)485 lb
Lateral Load (F2)1,270 lb
*
*
*
