Simpson 7-7/8 inch Reinforcing Angle Zmax

Mfr.: Simpson Strong-Tie
Item #: I093233
Mfr. #: LS90Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $10.28
i h h

Description

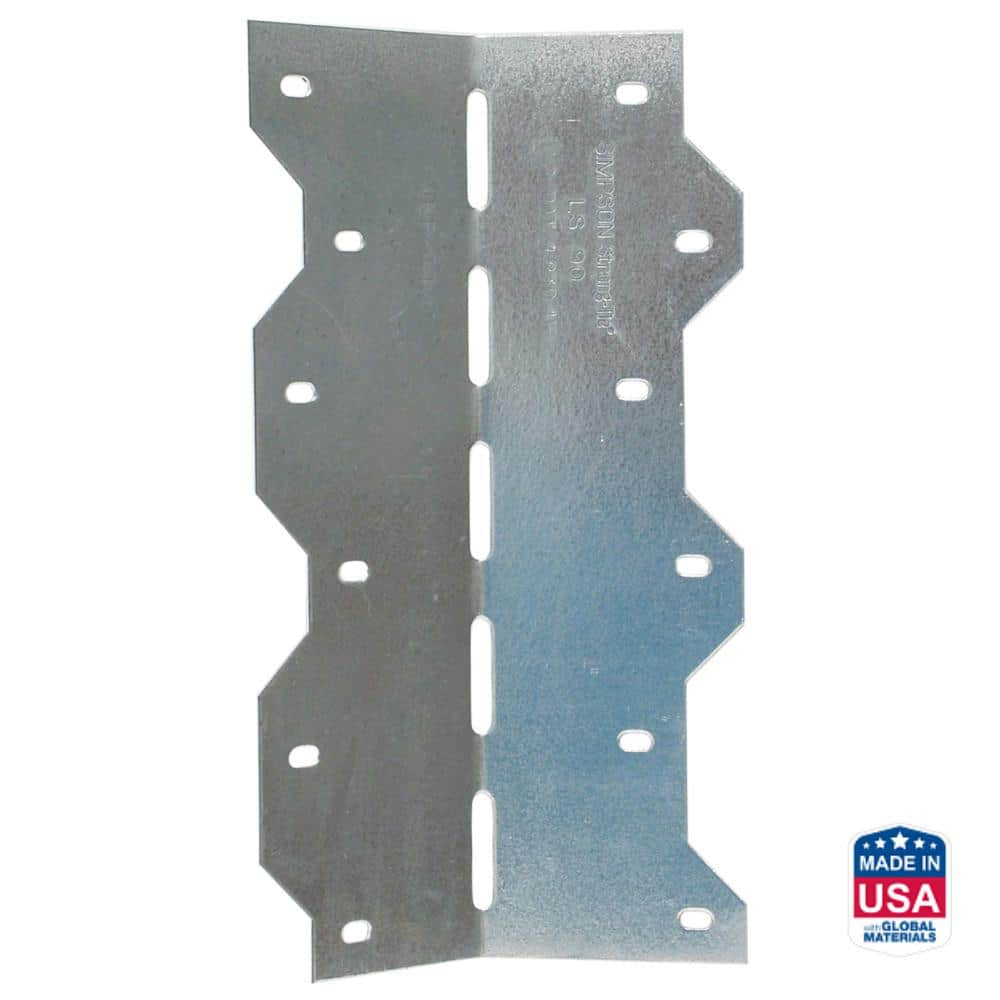

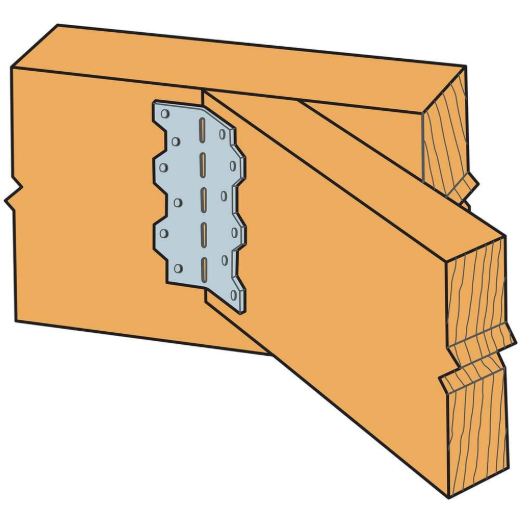

The Simpson Strong-Tie LS90Z reinforcing angle is a versatile and durable solution for creating adjustable angles in construction projects. This skewable reinforcing framing angle is designed to strengthen wood-to-wood connections in various structural applications, offering a cost-effective alternative to field-fabricated clip angles. Its field-bendable design allows for easy on-site adjustment to match non-standard framing angles, ensuring strong and consistent joints.
  • Field-adjustable angles from 0° to 135°
  • ZMAX galvanization for enhanced corrosion resistance

Features

  • Strengthens intersecting framing members in wood construction.

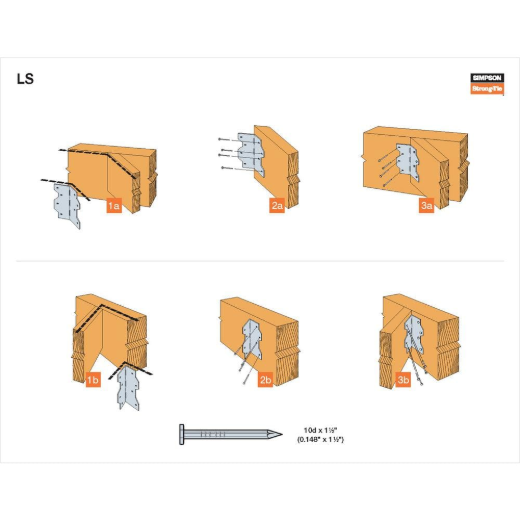

  • Pre-punched fastener holes for proper placement and installation.
  • Suitable for exterior and treated lumber use.

Includes

  • 1x LS90Z Reinforcing Angle
Products specifications
Length 7-7/8 inch
Material Steel, 18-gauge
Finish ZMAX
Width 3-1/2 inch
Depth 1-1/4 inch
Bendable Angle 0 to 135 degrees
*
*
*
