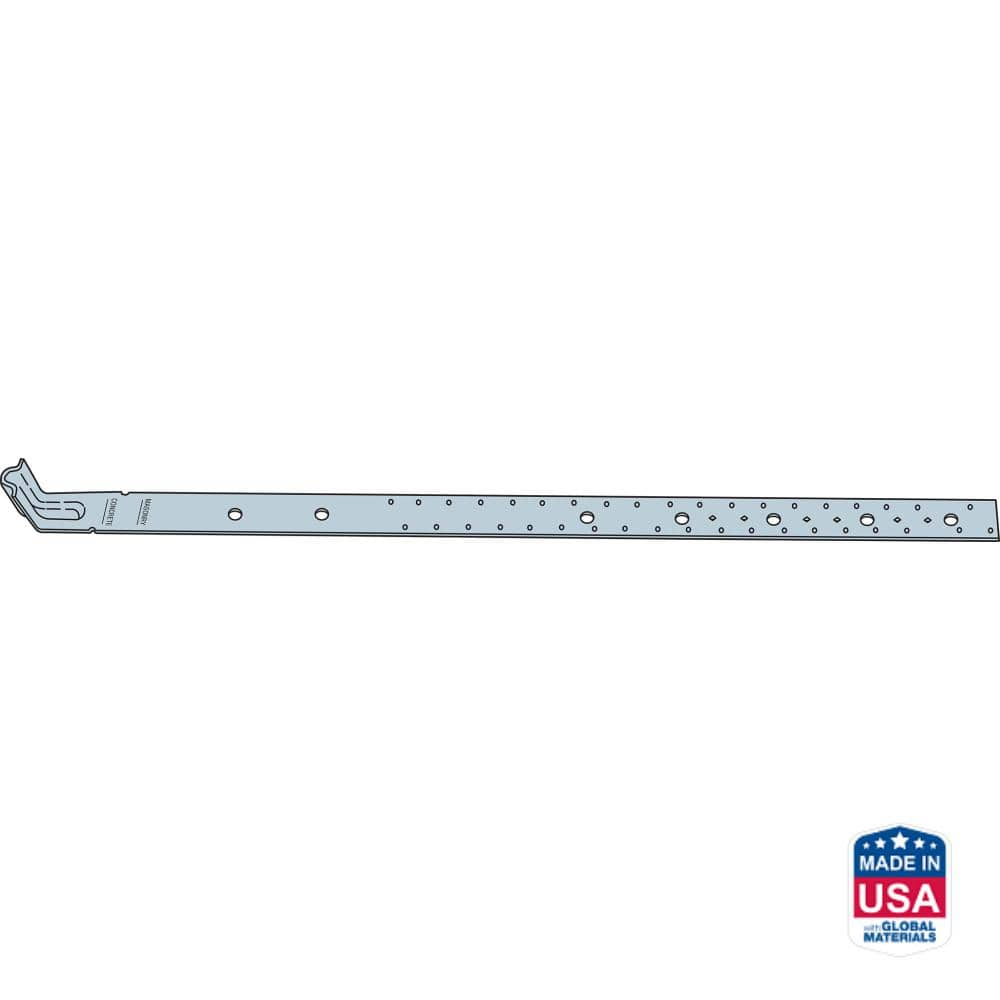

Simpson 70-In. 12-Gauge Strap-Tie Holdown

Mfr.: Simpson Strong-Tie
Item #: I090855
Mfr. #: PA68
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $37.09
i h h

Description

The Simpson Strong-Tie PA68 is a heavy-duty purlin anchor and strap-tie holdown designed for secure wood-to-concrete and wood-to-masonry connections. It offers a code-compliant solution for transferring uplift and lateral forces from roof or wall framing to the foundation. The connector features a dual-embedment line to simplify installation across different base materials, including concrete and masonry. Its robust 12-gauge design and corrosion-resistant finish ensure reliable performance in structural framing applications.
  • Dual-Embedment Design
  • Field-Bendable Strap

Features

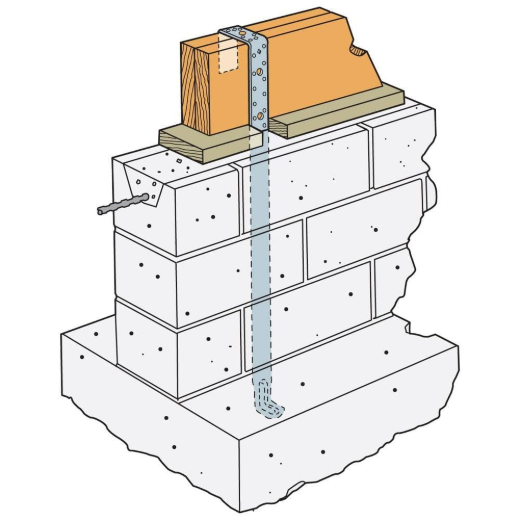

  • Designed to hook around rebar for maximum grip and security in concrete or masonry.
  • 12-gauge carbon steel construction provides superior strength for high-load applications.
  • Galvanized G90 finish offers reliable corrosion protection and compatibility with treated lumber.
  • Allows for one full bend cycle to accommodate specific framing alignment and field conditions.

Includes

  • (1) PA68 Purlin Anchor and Strap-Tie Holdown
Products specifications
Model Number PA68
Material 12-Gauge Carbon Steel
Overall Length 70 inch
Strap Width 2-1/16 inch
Finish Galvanized (G90)
Series PA Purlin Anchor
Base Material Concrete or Masonry
*
*
*
