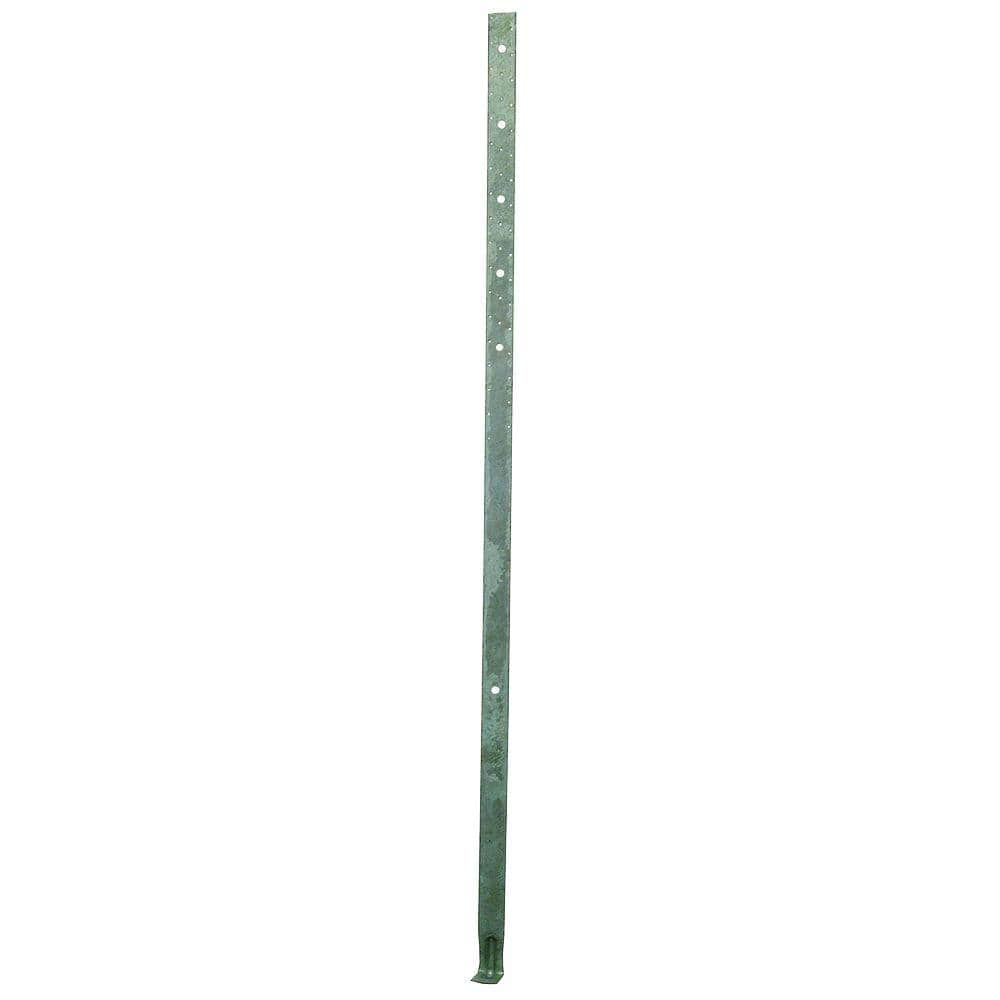

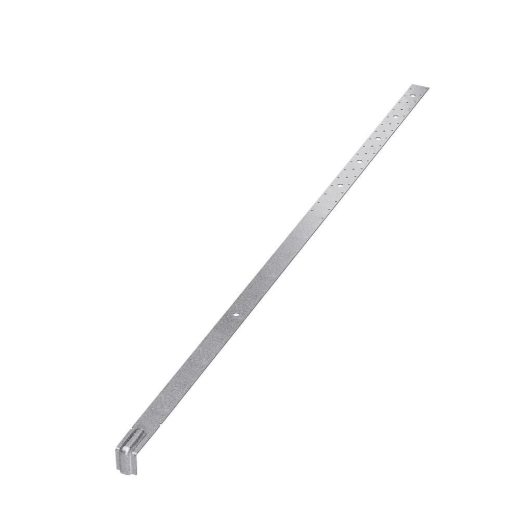

Simpson 70-Inch Purlin Anchor And Strap-Tie Holdown Zmax

Mfr.: Simpson Strong-Tie
Item #: I090856
Mfr. #: PA68Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $49.15
i h h

Description

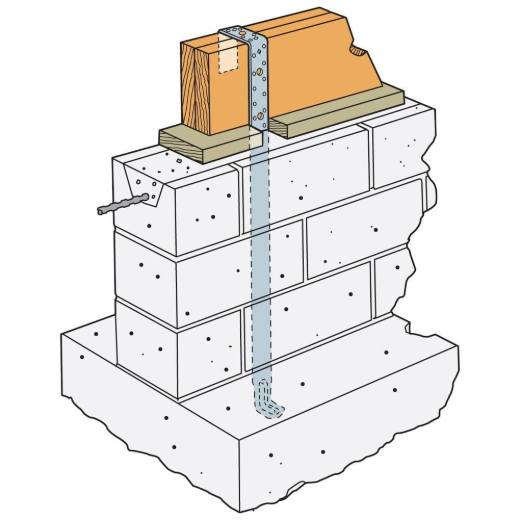

The Simpson Strong-Tie PA68Z is a high-performance 70-inch purlin anchor and strap-tie holdown designed for robust wood-to-concrete and wood-to-masonry connections. It features a dual-embedment line that allows for easy installation in both concrete and concrete-block (GFCMU) walls, ensuring versatility on the jobsite. This 12-gauge connector is engineered to provide a continuous load path by efficiently transferring uplift and lateral forces into the foundation. With its ZMAX finish, it offers superior corrosion resistance, making it an ideal choice for exterior projects and applications using pressure-treated lumber.
  • ZMAX Galvanized Coating
  • 12-Gauge Steel Construction
  • Dual-Embedment Line Indicators
  • Versatile 70-Inch Length

Features

  • Designed to hook around rebar for maximum structural security in masonry or concrete.
  • Field-bendable strap allows for one full cycle to accommodate various framing alignment requirements.
  • Satisfies building code requirements for structural anchorage and load transfer.

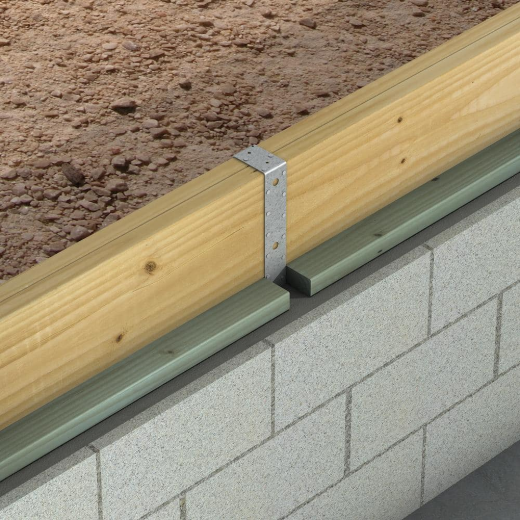

  • Nailing pattern optimized for the narrow face of 3x or double 2x wood members.

Includes

  • (1) PA68Z Purlin Anchor / Strap-Tie Holdown
Products specifications
Model No. PA68Z
Length 70 inch
Width 2-1/16 inch
Material 12-Gauge Carbon Steel
Finish ZMAX Galvanized
Fasteners Required 10d Nails (Qty 10)
Concrete Edge Distance 5 inch (Minimum)
Application Wood-to-Concrete / Masonry
*
*
*
