  • Simpson 77-3/4 Medium Strap Tie

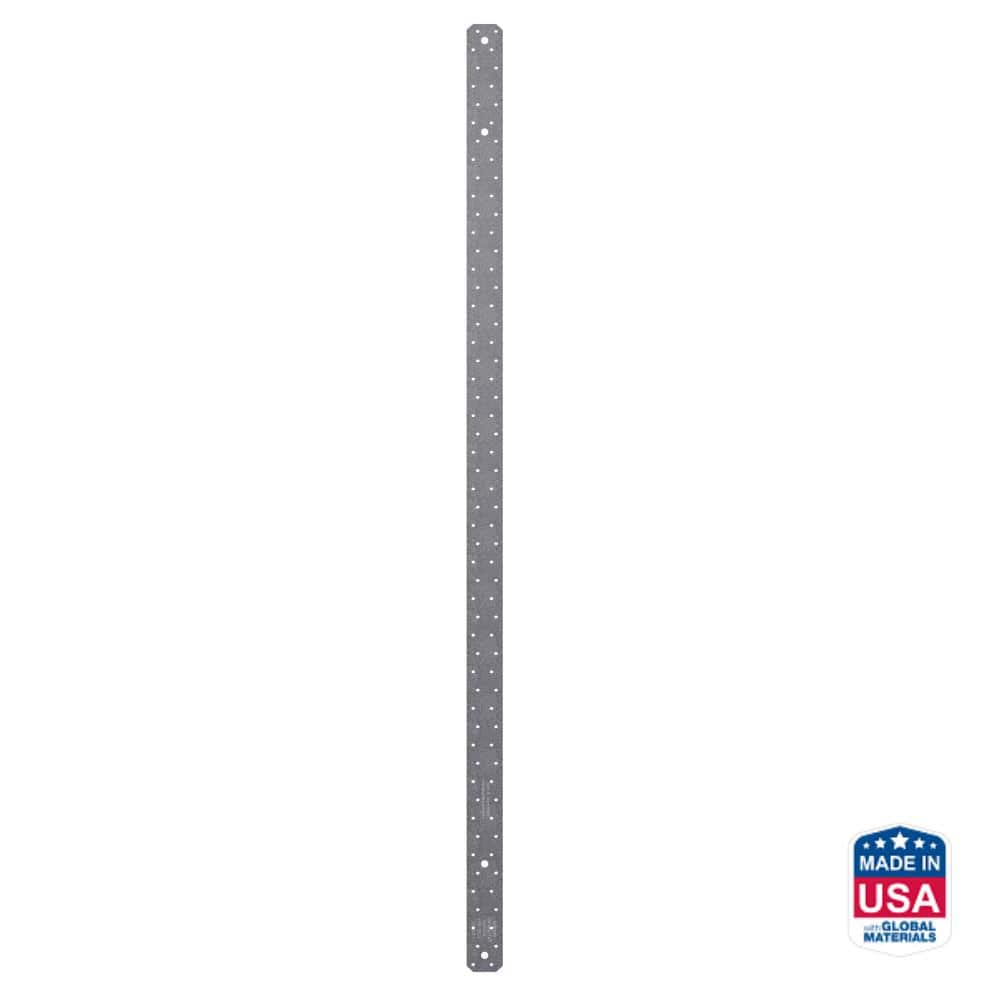

Simpson 77-3/4 Medium Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090821
Mfr. #: MSTC78
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $68.10
i h h

Description

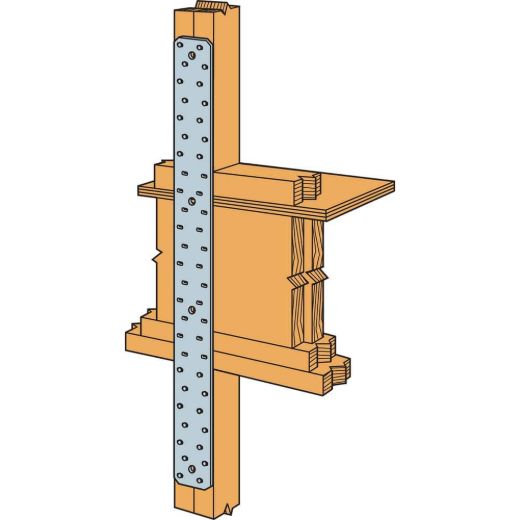

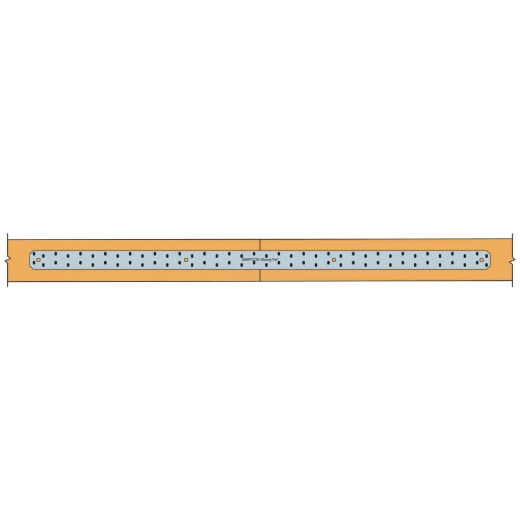

The Simpson Strong-Tie MSTC78 is a high-capacity medium strap tie engineered to resist tension loads in wood-to-wood construction applications. Manufactured from robust 14-gauge G90 galvanized steel, this 77-3/4 inch connector provides exceptional strength and long-lasting corrosion resistance for various structural projects. Its versatile design is ideal for reinforcing wall intersections, ridge ties, and floor-to-floor clear span applications, ensuring a stable and secure building framework.
  • G90 Galvanized Coating
  • 14-Gauge Steel Construction
  • Staggered Nail Pattern

Features

  • Countersunk nail slots provide a lower nail-head profile for flush finishes.
  • Staggered hole design helps minimize wood splitting during high-volume fastening.
  • Load-rated for wind and seismic forces to meet structural safety requirements.

Includes

  • (76) 0.148 inch x 3-1/4 inch Nails
Products specifications
Model No. MSTC78
Material 14-Gauge Carbon Steel
Finish G90 Galvanized
Length 77-3/4 inch

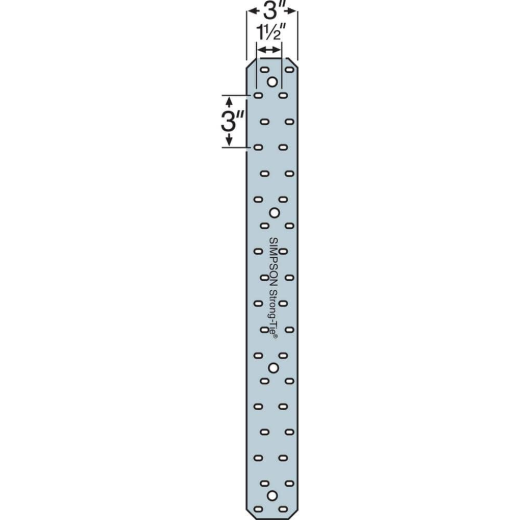

Width 3 inch
Thickness 14 Gauge (68 mils)
Fasteners Required (76) 0.148 inch x 3-1/4 inch Nails
Load Rated Yes
Application Wood-to-Wood Tension
*
*
*
