  • Simpson 7In Reinforcing Angle Zmax

Simpson 7In Reinforcing Angle Zmax

Mfr.: Simpson Strong-Tie
Item #: I093201
Mfr. #: L70Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5.24
i h h

Description

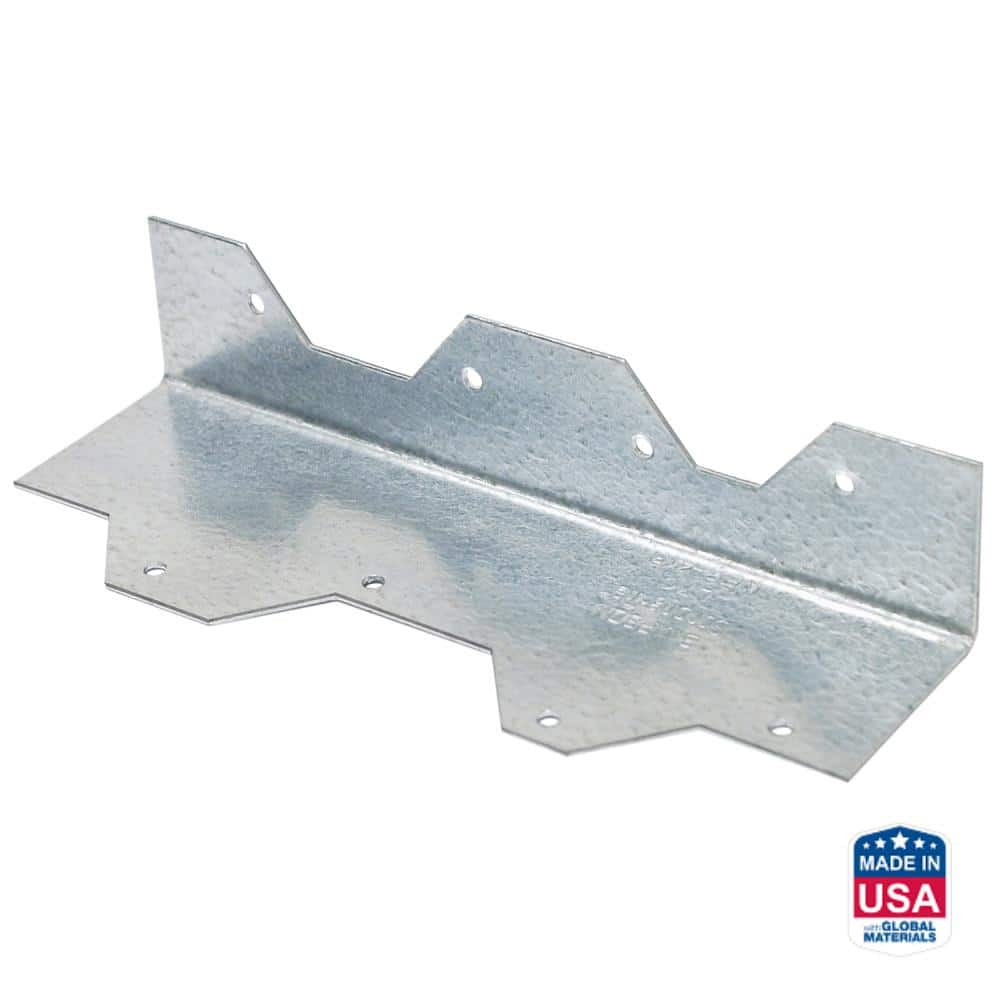

The Simpson Strong-Tie L70Z 7 inch Reinforcing Angle is a versatile, load-rated metal connector engineered to strengthen and stabilize corner and joint connections in various framing and structural applications. Built from durable 16-gauge steel with well-defined fastener locations and a ZMAX coating for enhanced corrosion resistance, it provides a reliable solution for reinforcing wood and light gauge steel connections. Its design offers a stronger alternative to traditional angled nailing or screw fastening, ensuring consistent and dependable performance in both new construction and repair projects.
  • Durable 16-gauge steel construction
  • ZMAX coating for superior corrosion resistance

Features

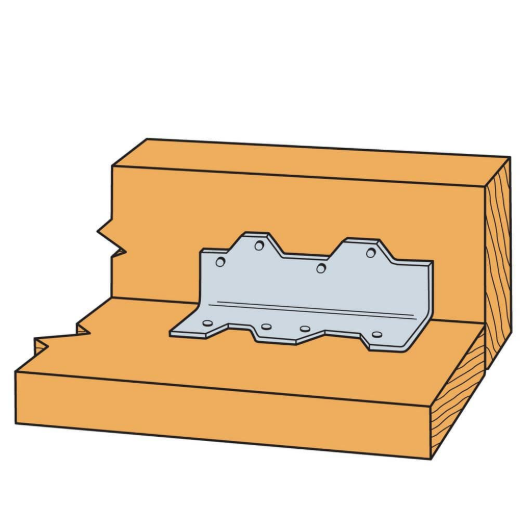

  • Reinforces 90-degree connections, providing greater strength than angled nailing or screw fastening.
  • Features a staggered fastener pattern to reduce the risk of wood splitting during installation.
  • Load-rated for wood and cold-formed steel applications, with tabulated load values that account for connection eccentricities.

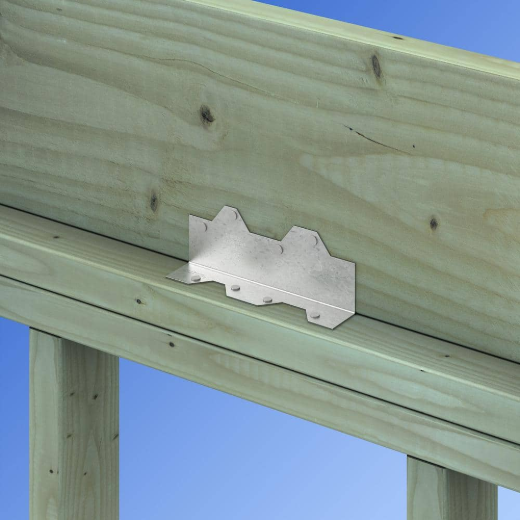

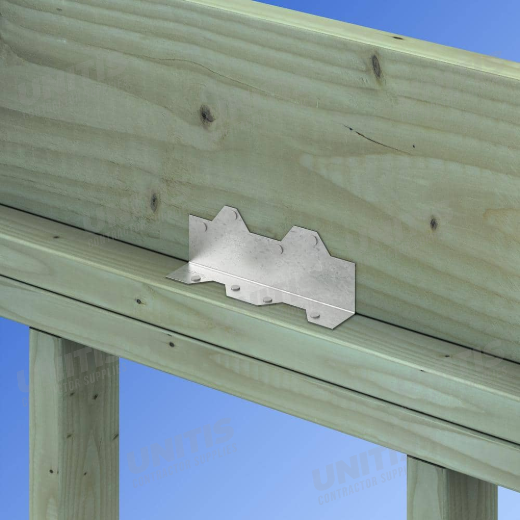

  • Ideal for general utility, decks, sheds, framing walls, and other structural connections.

Includes

  • Model L70Z Reinforcing Angle
Products specifications

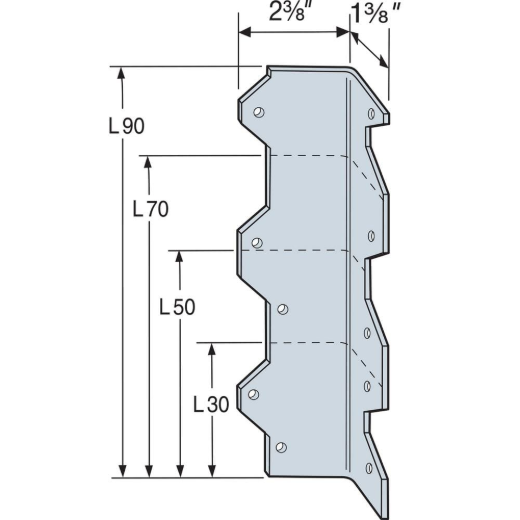

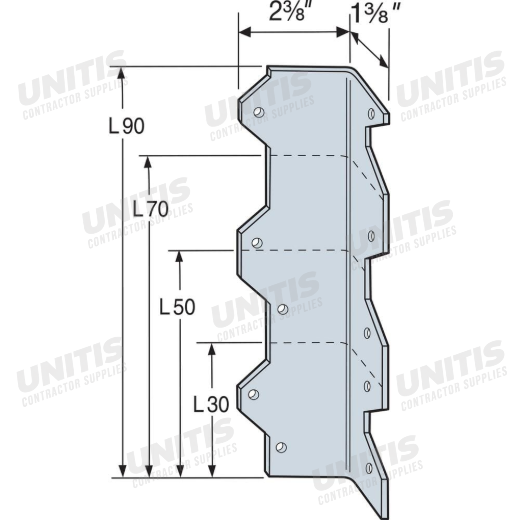

length 7 inch
gauge 16
coating ZMAX
material Steel
*
*
*
