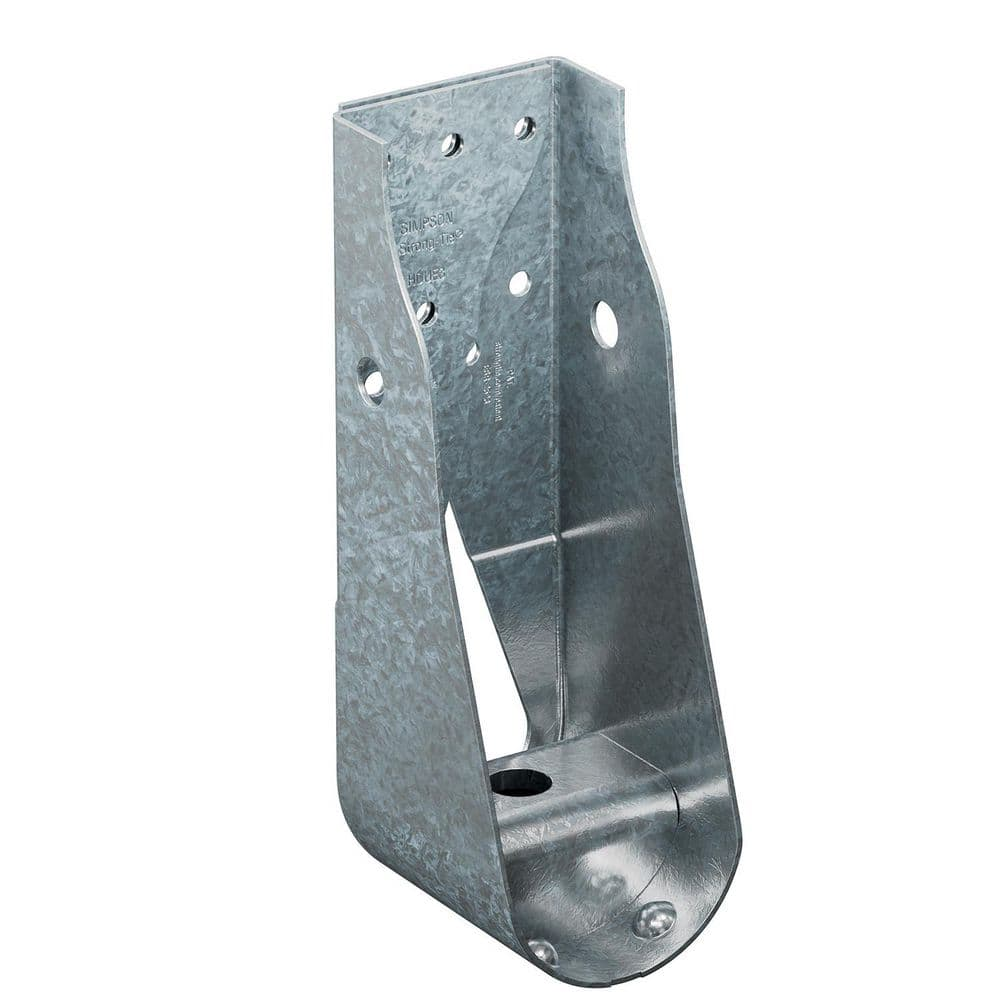

Simpson 8-11/16 inch Predeflected Holdown

Mfr.: Simpson Strong-Tie
Item #: I093091
Mfr. #: HDUE3-SDS3HDG
*
Pickup at Buena Park | Change Delivering to 92111 | Change

Price: $62.84
i h h

Description

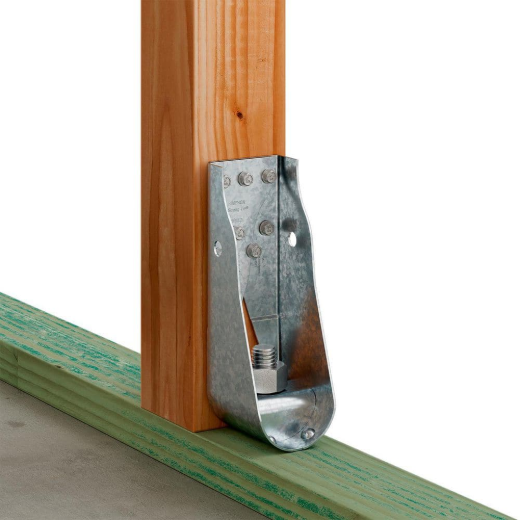

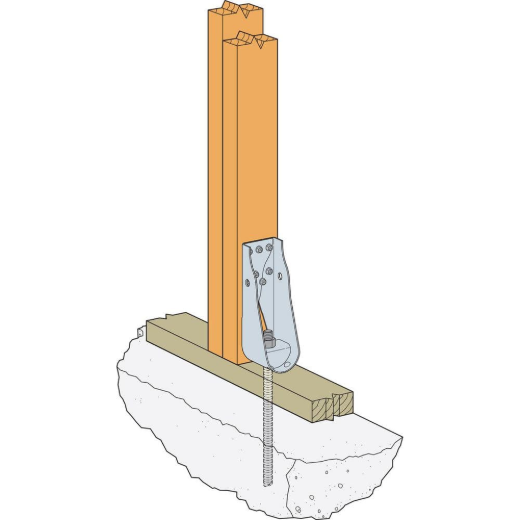

The Simpson Strong-Tie HDUE Holdown series provides exceptional lateral-load resistance for demanding residential and multi-story construction. Engineered for modern building needs, these holdowns ensure strong, reliable connections for shearwalls, braced wall panels, and other critical structural elements. Its predeflected seat design minimizes deflection under load, enhancing structural stability and performance.
  • Hot Dip Galvanized Finish
  • Predeflected Seat Design
  • Overlapping Back Plate

Features

  • Superior corrosion resistance for exterior and treated wood applications due to hot-dip galvanization.
  • Engineered to meet increased demands in residential construction, particularly for large openings and taller walls.
  • Innovative angled fastening in larger models engages both tension and shear for higher allowable loads with fewer fasteners.
  • Reinforces steel strength and helps prevent post splitting with an overlapping back plate.
  • Optimized screw patterns designed to reduce wood splitting and maximize fastener performance at the post end.

Includes

  • (7) 1/4 in. x 3 in. Strong-Drive SDS Heavy-Duty Connector screws
  • (1) Crescent Washer
Products specifications
item_number HDUE3-SDS3HDG
height 8-11/16 inch
width 2-7/8 inch
base_width 3-3/8 inch
gauge 14 Gauge
material Carbon Steel
finish Hot Dip Galvanized
treated_lumber Yes
fasteners_included Yes
*
*
*
