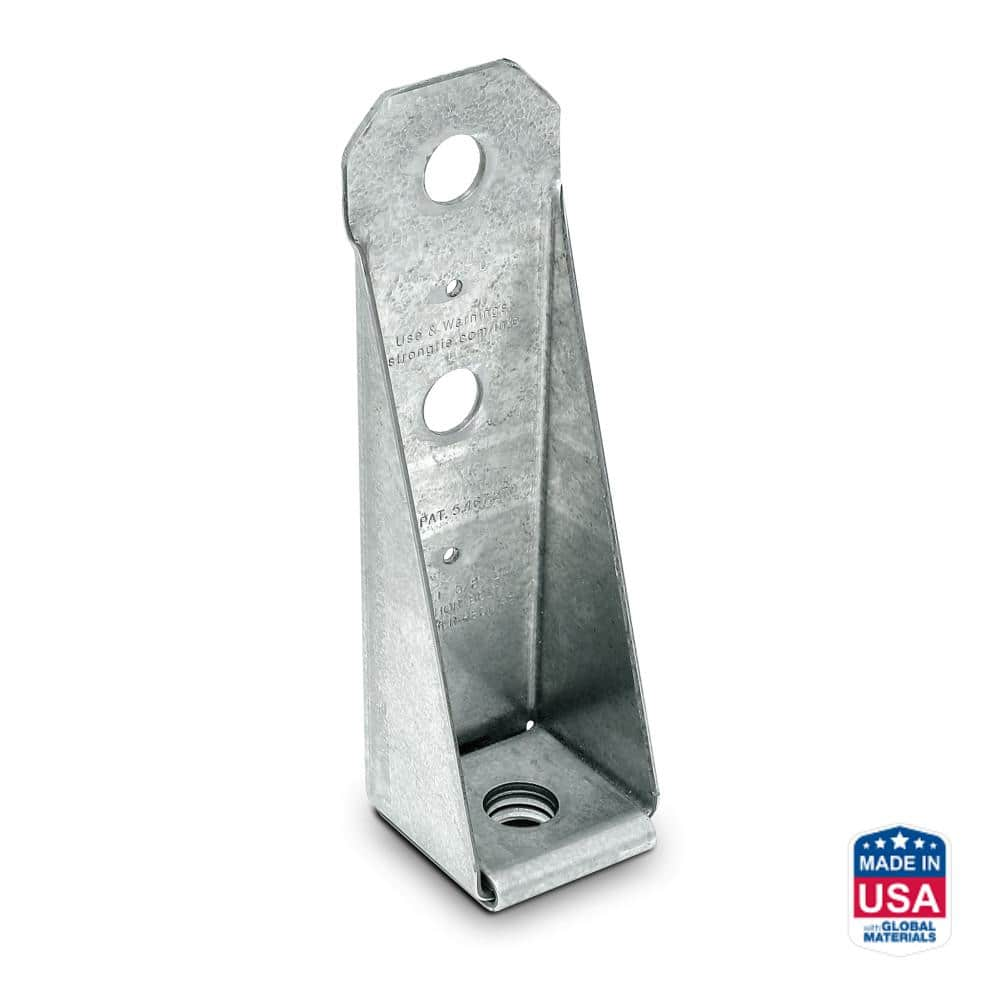

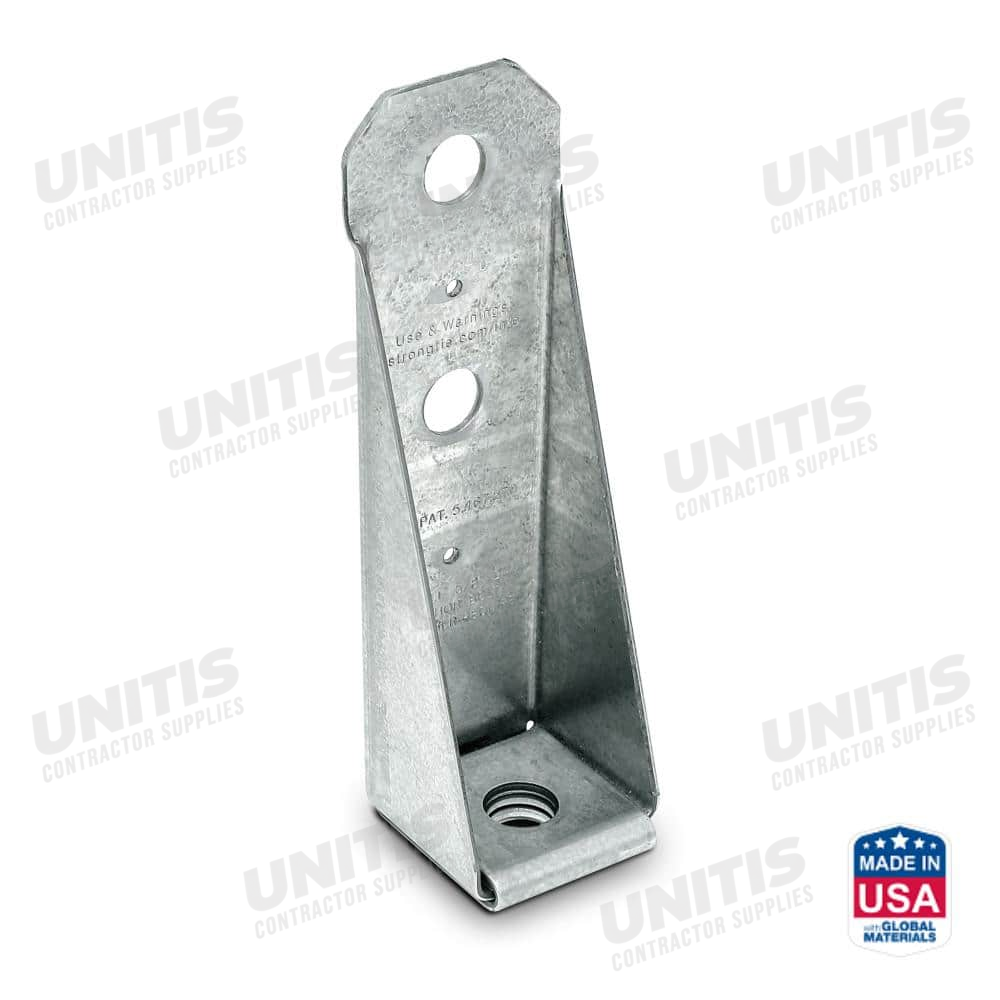

Simpson 8-5/8In Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I093059
Mfr. #: HD3B
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $22.97
i h h

Description

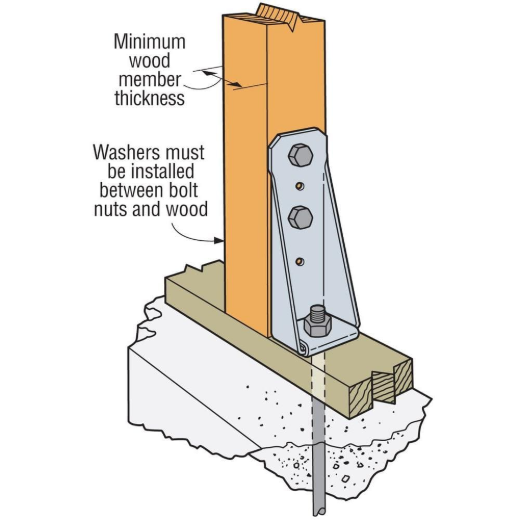

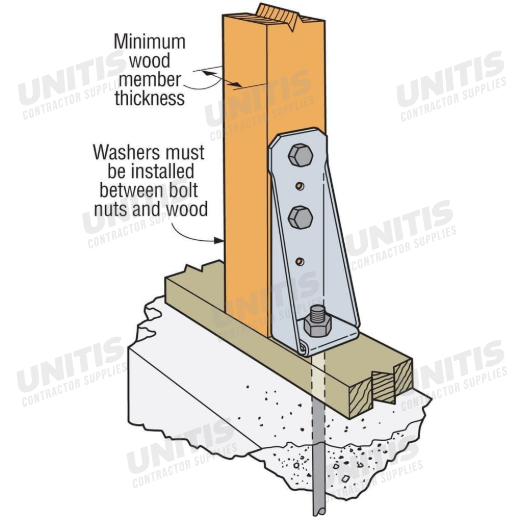

The Simpson Strong-Tie HD3B is a robust bolted holdown anchor designed for robust lateral applications in wood construction, effectively transferring tensile forces through floors and anchoring purlins into masonry or concrete. It is engineered for high uplift resistance and low-deflection performance, making it suitable for shearwalls, braced-wall panels, and general lateral applications. This holdown ensures structural stability during seismic and wind events by securely connecting wood framing to concrete foundations.
  • High Uplift Resistance
  • Low-deflection performance

Features

  • Manufactured without welds for enhanced performance.
  • Self-jigging design ensures code-required minimum bolt end distance is met.
  • Suitable for back-to-back applications where eccentricity is a concern.

Includes

  • Bolted holdown anchor.

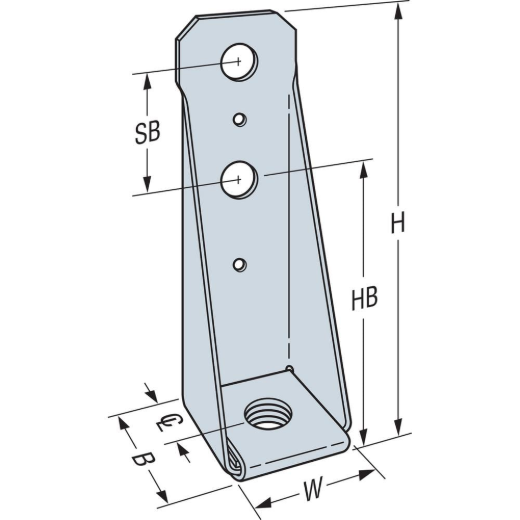

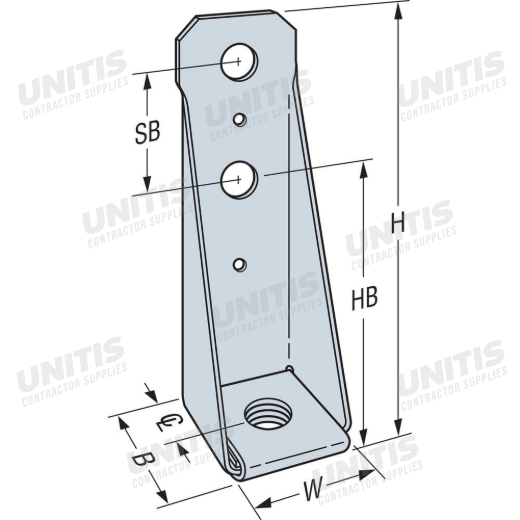

Products specifications
Material Galvanized steel G90
Base thickness 11 mm
Body thickness 2.5 mm
Length 8-5/8in
*
*
*
