Simpson 8 X 8 Adjustable Post Base Hdg

Mfr.: Simpson Strong-Tie
Item #: I090898
Mfr. #: ABU88HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $164.56
i h h

Description

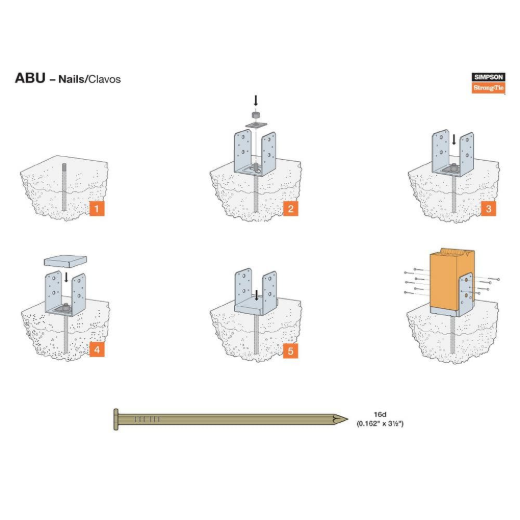

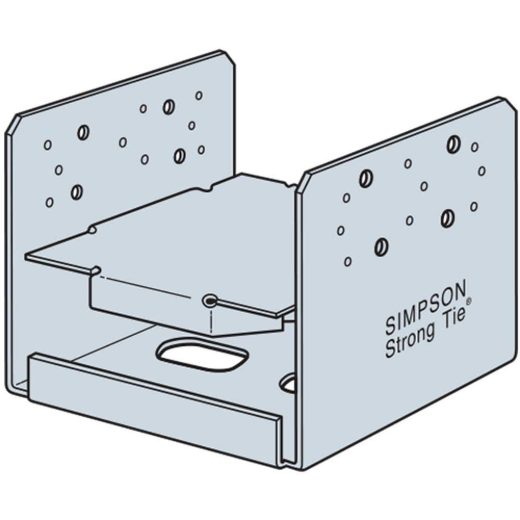

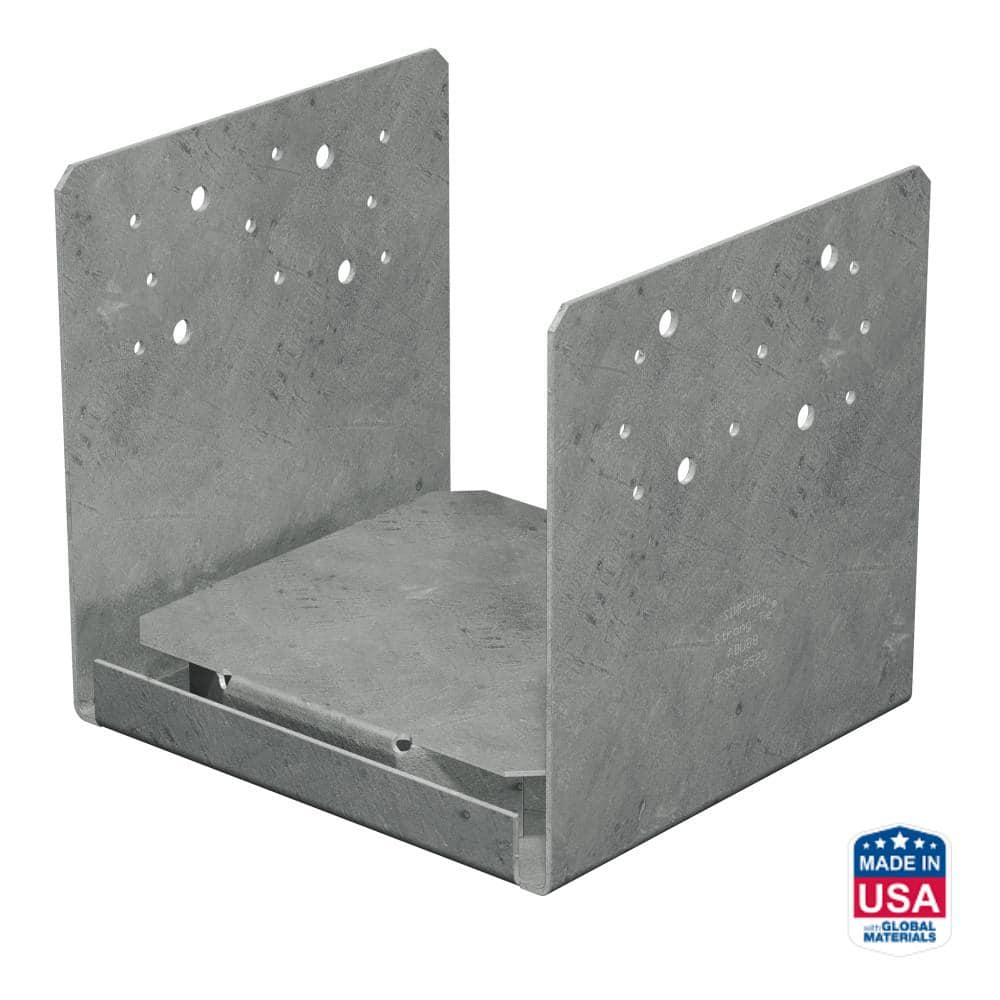

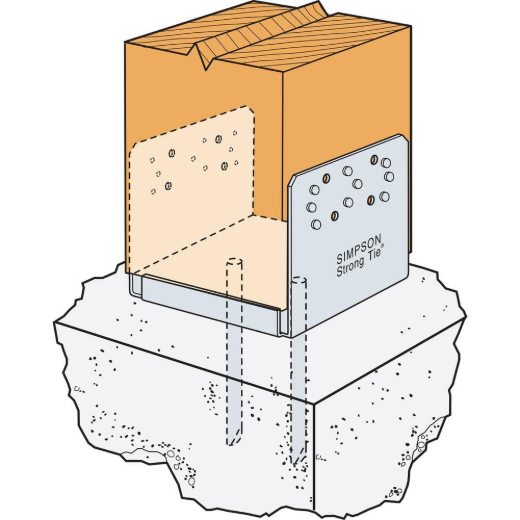

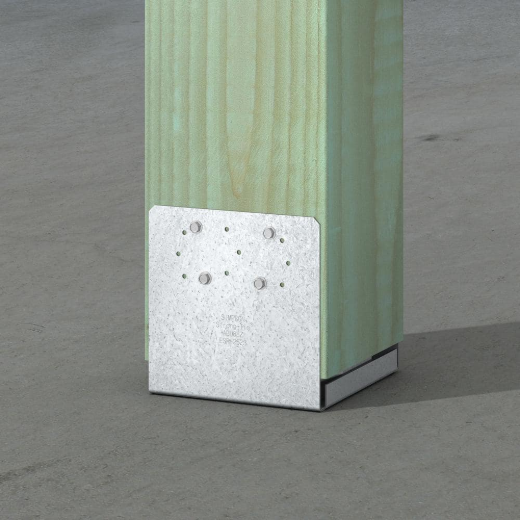

The Simpson Strong-Tie ABU88HDG is a high-capacity adjustable post base designed to provide a secure and versatile connection between nominal 8x8 wood posts and existing concrete. This heavy-duty connector features a 1-inch standoff to elevate the post, effectively preventing moisture-related rot and meeting building code requirements for structural posts. Its hot-dipped galvanized finish ensures superior corrosion resistance, making it an ideal choice for exterior projects or applications using treated lumber. The slotted anchor hole allows for precise lateral adjustment during installation, ensuring perfect alignment even if the anchor bolt is slightly off-center.

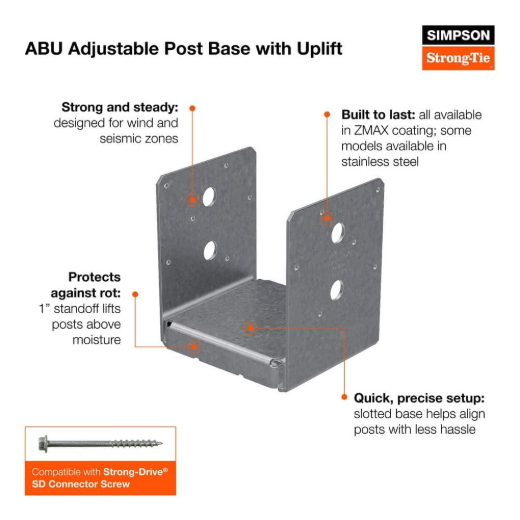

  • Hot-Dipped Galvanized Coating
  • 1-Inch Standoff Design

Features

  • Slotted base provides flexibility for anchor bolt alignment and easier post placement.
  • Engineered for high uplift and lateral load resistance in wind and seismic conditions.

Includes

  • 8x8 Adjustable Post Base
Products specifications
Model No. ABU88HDG
Post Size 8x8 Nominal
Material 14-Gauge Steel
Finish Hot-Dipped Galvanized
Base Width 7-1/2 inches
Base Length 7 inches
Strap Height 7 inches
Anchor Bolt 5/8 inch diameter
Fasteners Required 18 Nails or 8 SDS Screws
*
*
*
