Simpson 8 X 8 Column Base Standoff With Screws

Mfr.: Simpson Strong-Tie
Item #: I090972
Mfr. #: CBSQ88-SDS2
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $144.88
i h h

Description

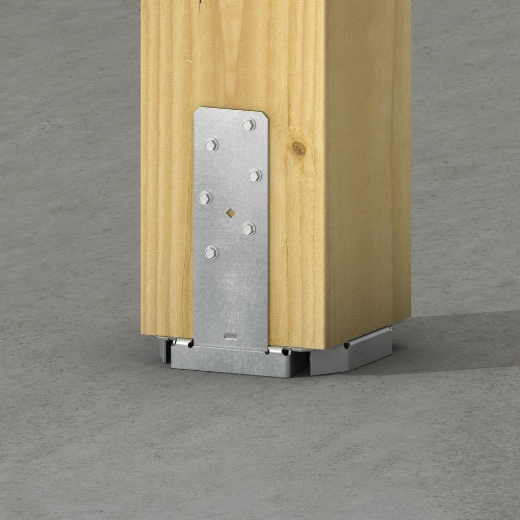

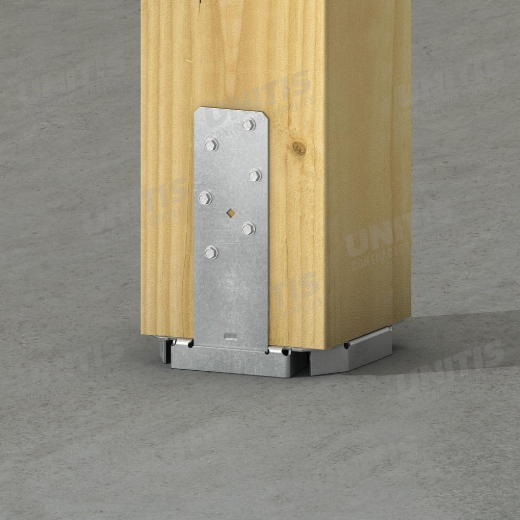

The Simpson Strong-Tie CBSQ88-SDS2 is a high-strength column base designed to connect 8x8 wood posts to concrete foundations. It features a 1-inch standoff that meets building code requirements to prevent post-end decay caused by moisture exposure. This connector is engineered for cast-in-place installation and utilizes Strong-Drive SDS screws for a secure, high-capacity connection without the need for traditional bolting.
  • G90 Galvanized Coating
  • 1 inch Standoff Height

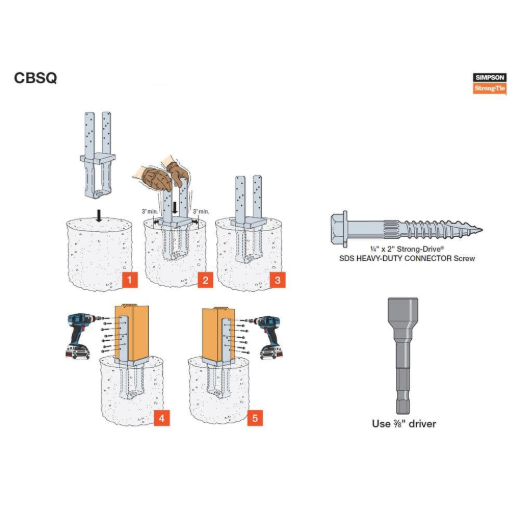

  • Cast-In-Place Design
  • High-Capacity SDS Screws

Features

  • Meets code for structural posts in basements or outdoors.
  • Provides a greater wood net section area than bolts.
  • Reduces installation time with included fasteners.
  • Heavy-gauge steel construction for structural stability.

Includes

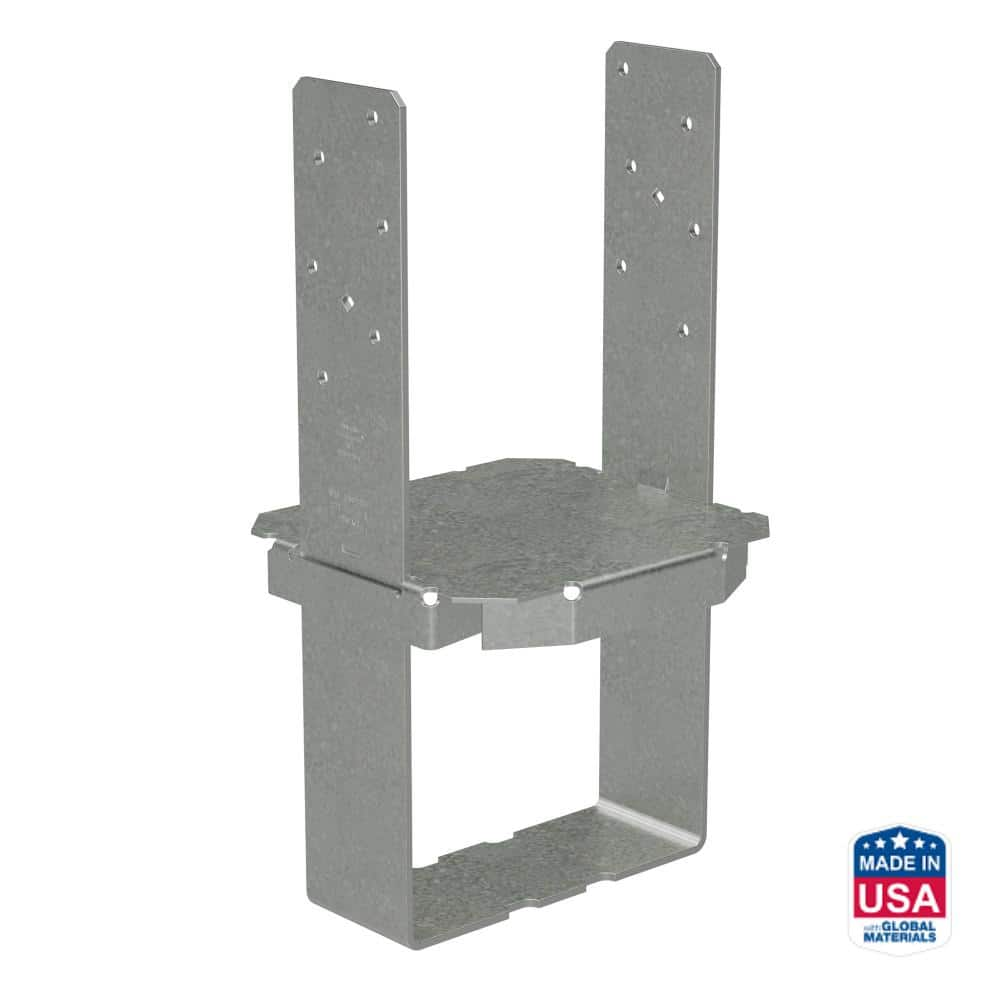

  • (1) CBSQ88-SDS2 Column Base
  • Strong-Drive SDS 1/4 inch x 2 inch Screws
Products specifications
Model Number CBSQ88-SDS2
Post Size 8x8
Material Heavy-Gauge Steel
Finish G90 Galvanized
Base Gauge 12 Gauge
Strap Gauge 7 Gauge
Standoff Height 1 Inch
Fasteners SDS 1/4 inch x 2 inch (Included)
*
*
*
