Simpson 8 X Post Base

Mfr.: Simpson Strong-Tie
Item #: I090912
Mfr. #: BC80
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $62.30
i h h

Description

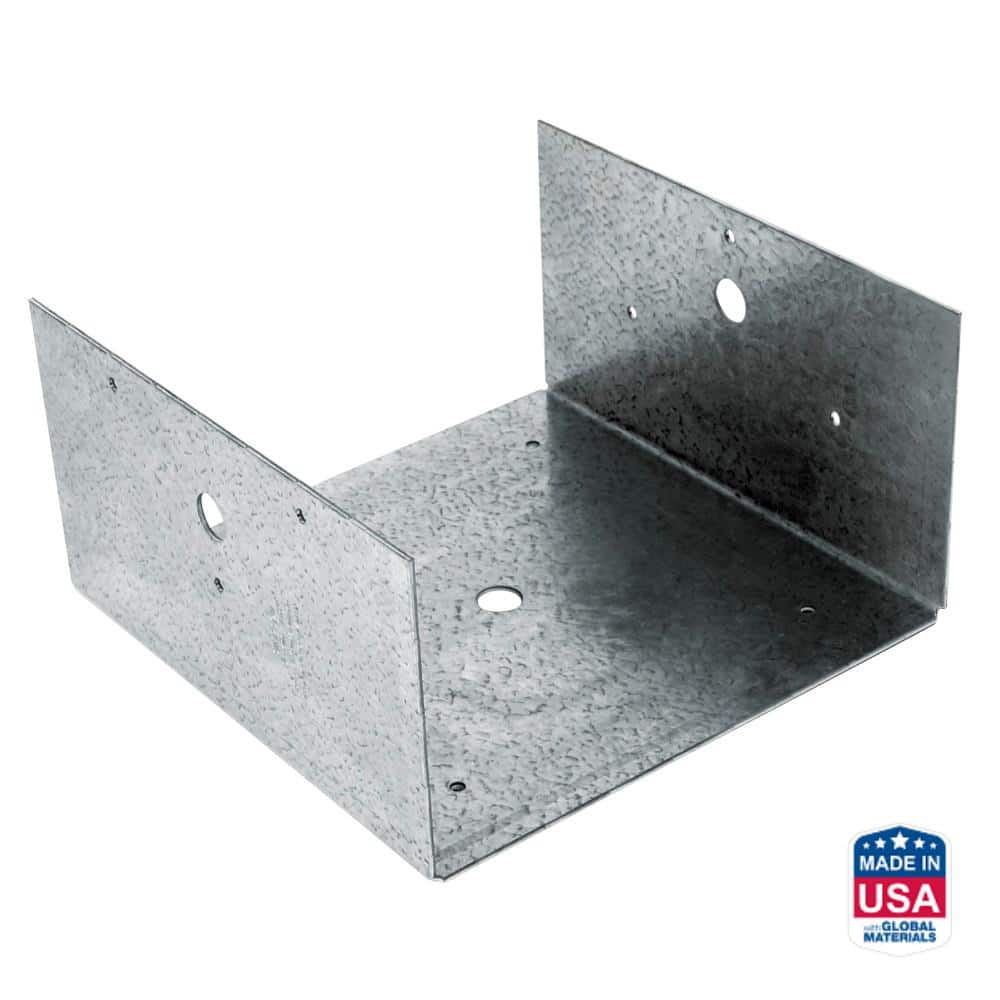

The Simpson Strong-Tie BC80 is a light-duty post base designed to securely connect 8x8 nominal posts to wood supporting members. Built with 18-gauge galvanized steel, this connector provides essential uplift and lateral resistance for projects such as decks, patio covers, and other outdoor structures. Its versatile design and ease of installation make it a reliable choice for ensuring structural stability in residential construction.
  • G90 Galvanized Finish
  • 18-Gauge Steel Construction

Features

  • Features an opposing nail pattern designed to reduce wood splitting during installation.
  • Dual-purpose design allows for use as either a post cap or a post base in light-duty applications.
  • Achieves full allowable load using either common nails or pneumatic nail sizes.
  • Provides both lateral and uplift resistance to maintain the integrity of the connection.

Includes

  • (1) BC80 Galvanized Post Base
Products specifications
Material 18-Gauge Steel
Finish G90 Galvanized
Nominal Post Size 8x8
Width (W1) 7-1/2 inch
Length (L1) 7-1/2 inch
Height 4 inch
Fasteners Required 0.162 inch x 3-1/2 inch Nails
Post Flange Nails 6
Base Bottom Nails 4
*
*
*
