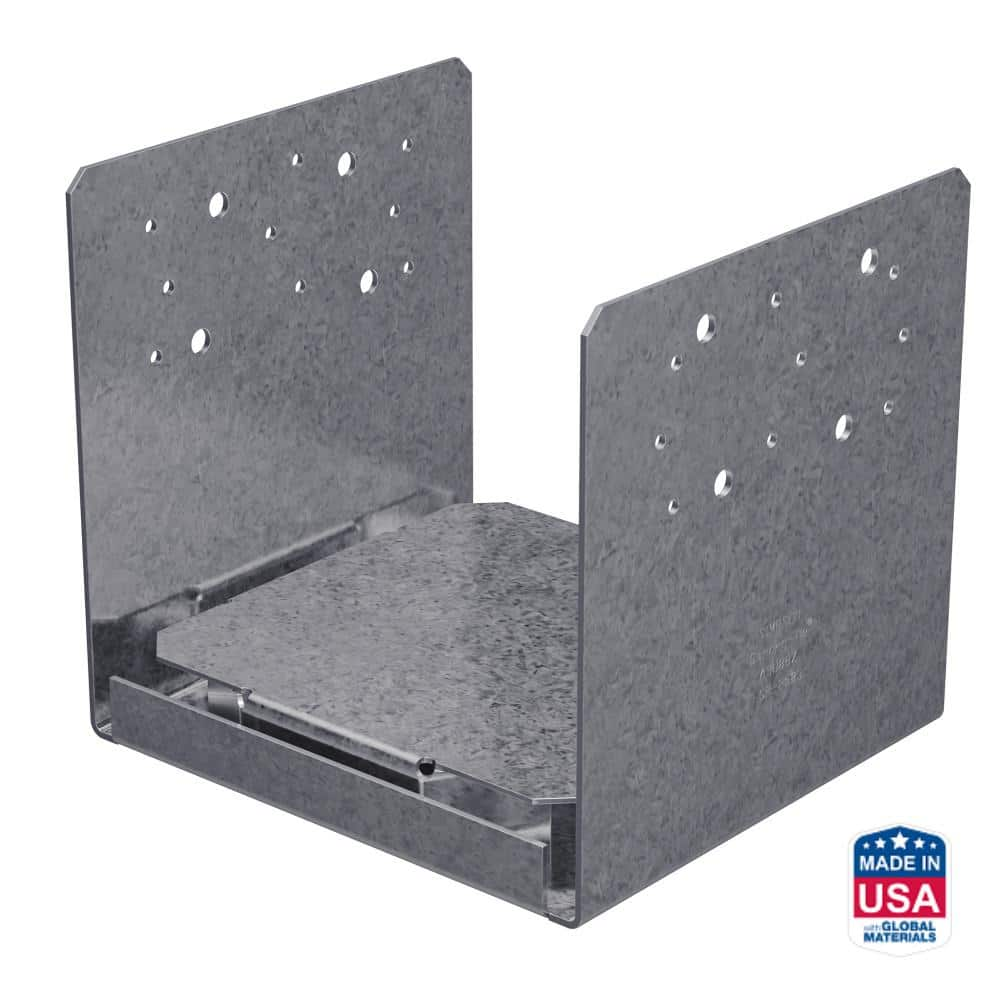

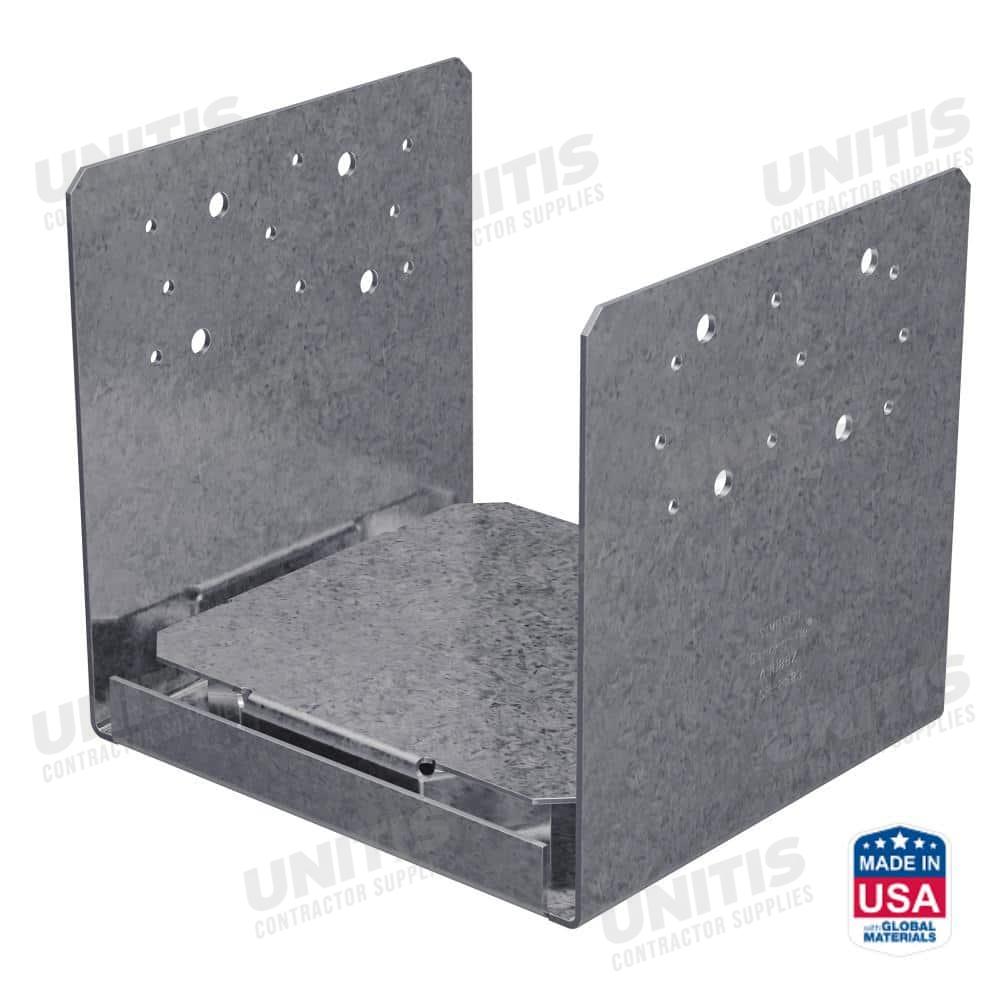

Simpson 8X8 Adjustable Post Base Z-Max

Mfr.: Simpson Strong-Tie
Item #: I090901
Mfr. #: ABU88Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $101.59
i h h

Description

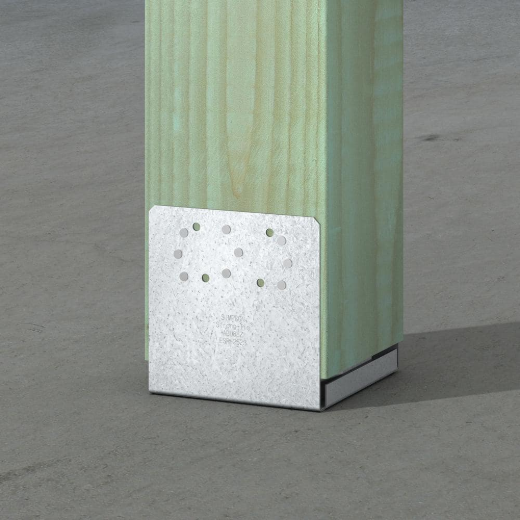

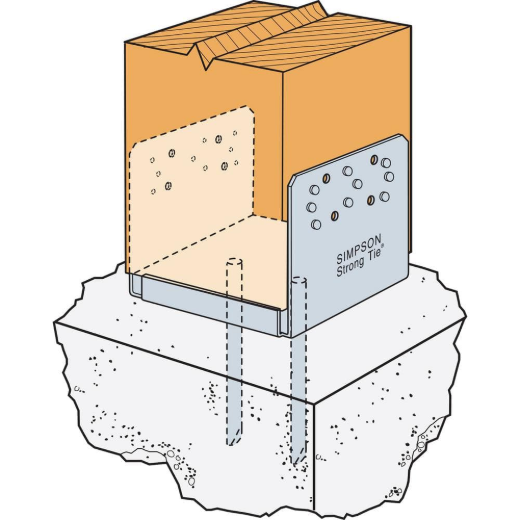

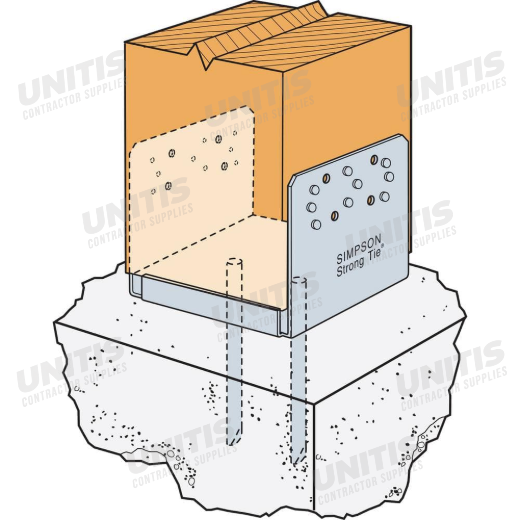

The Simpson Strong-Tie ABU88Z is a high-capacity, adjustable post base designed to securely anchor 8x8 wood posts to existing concrete. It features a built-in 1-inch standoff that elevates the post above moisture, helping to prevent rot and ensuring long-term structural integrity. This versatile connector is ideal for heavy-duty applications like decks, pergolas, and gazebos, offering superior uplift resistance in high-wind or seismic zones.

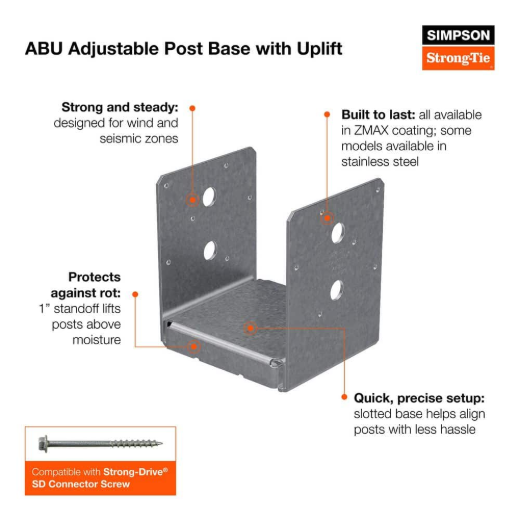

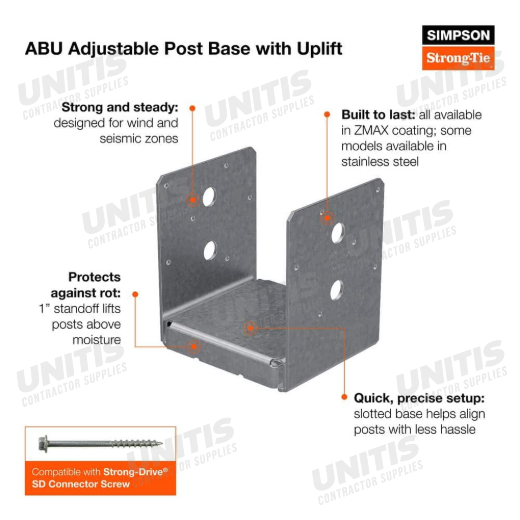

  • ZMAX Galvanized Coating

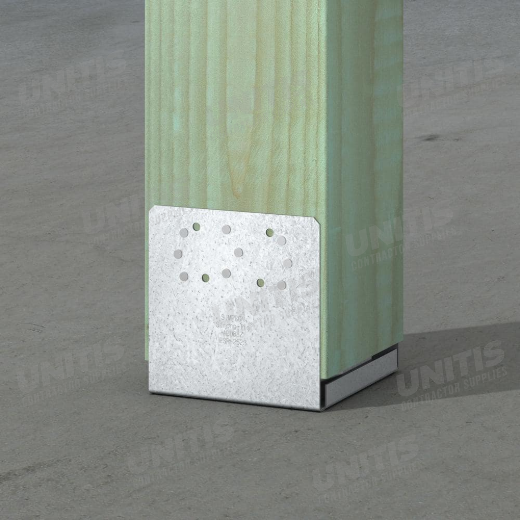

  • 1-Inch Standoff Design

Features

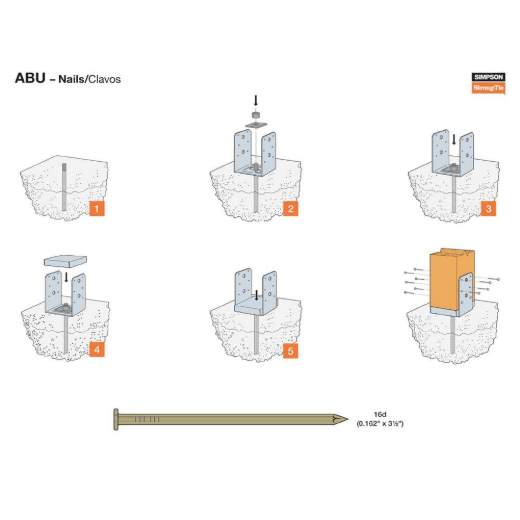

  • Slotted anchor hole allows for precise lateral adjustment during installation to ensure perfect post alignment.
  • Engineered for maximum uplift performance, making it suitable for areas prone to earthquakes or high winds.
  • Meets building code requirements for posts exposed to weather or water splash by preventing post-end decay.

Includes

  • 8x8 Adjustable Post Base (ABU88Z)
Products specifications
Model No. ABU88Z
Material Steel
Finish ZMAX Galvanized
Post Size 8x8
Base Gauge 14 Gauge
Strap Gauge 12 Gauge

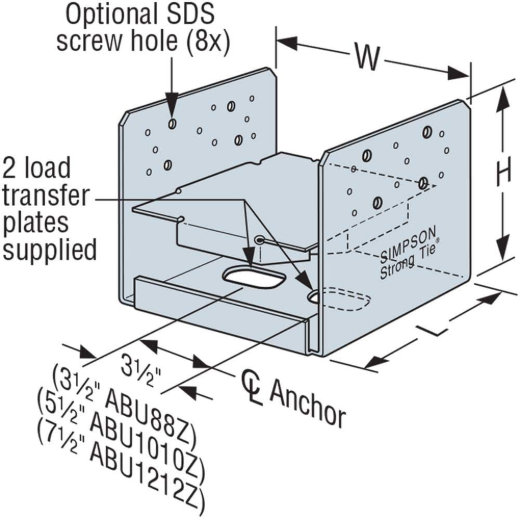

Base Width 7-1/2 in
Base Length 7 in
Base Height 7 in
Anchor Bolt Size 5/8 in
Uplift Capacity 2,570 lbs (Nails)
Download Capacity 22,405 lbs
*
*
*
