Simpson 8X8 Adjustable Post Base ZMAX

Mfr.: Simpson Strong-Tie
Item #: I090900
Mfr. #: ABU88RZ
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $101.28
i h h

Description

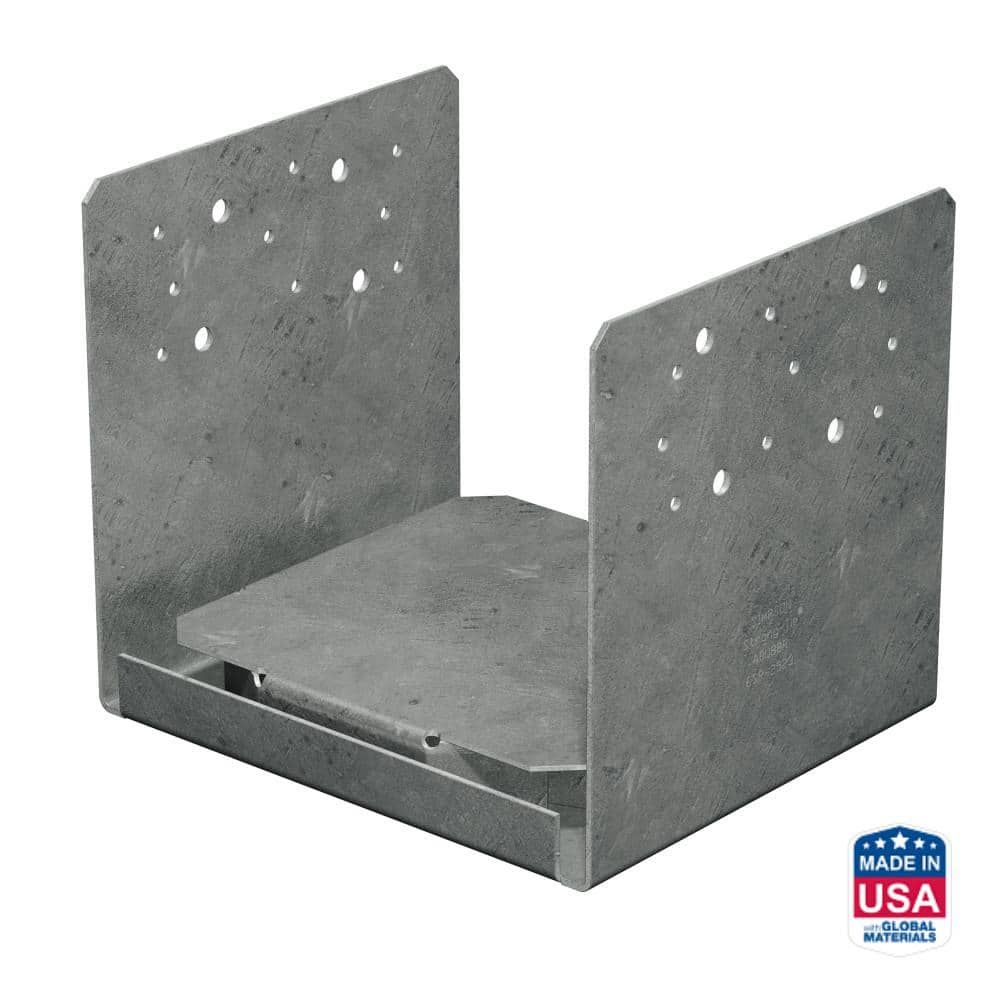

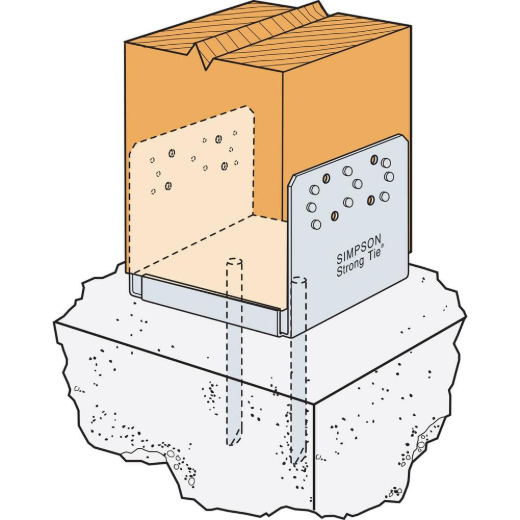

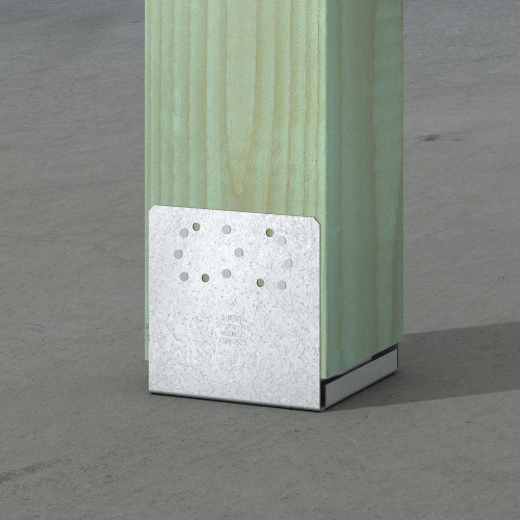

The Simpson ABU88RZ is a high-capacity adjustable post base engineered to attach actual 8x8 rough-cut wooden posts to existing concrete. As a key component of the ABU series, it features a built-in 1-inch standoff that meets code requirements and protects the post end from moisture and rot. This versatile connector offers superior uplift resistance, making it a reliable choice for decks, gazebos, and structures in high-wind or seismic areas.

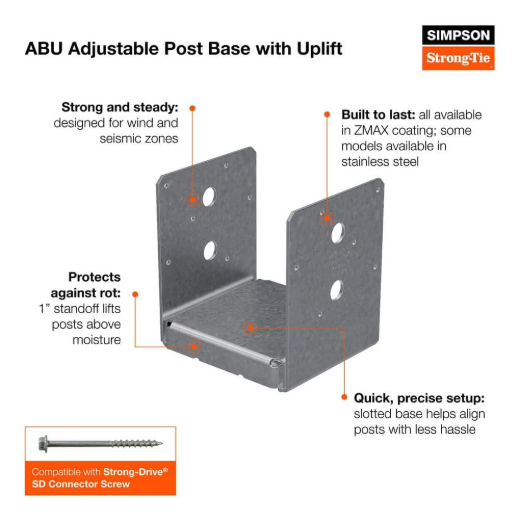

  • ZMAX Galvanized Coating
  • 1-Inch Standoff Design

Features

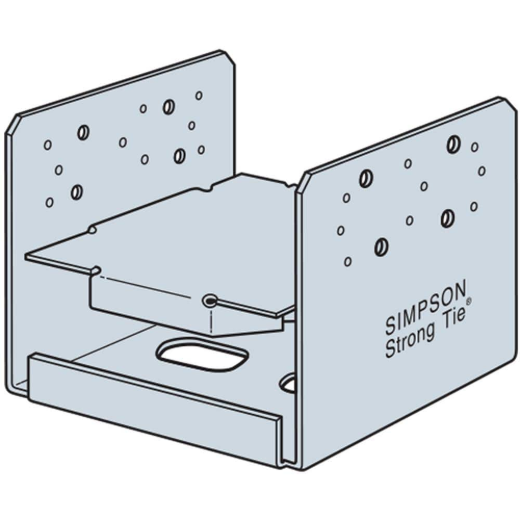

  • The slotted base allows for flexible positioning around the anchor bolt for precise post alignment.
  • Heavy-duty 14-gauge steel base and 12-gauge straps provide maximum structural stability.
  • ZMAX coating offers enhanced corrosion resistance for outdoor and pressure-treated lumber use.

Includes

  • Simpson ABU88RZ Post Base
Products specifications
Material Galvanized Steel
Finish ZMAX
Base Gauge 14 Gauge
Strap Gauge 12 Gauge
Post Size 8x8 Rough Cut (Actual)
Base Width 8 Inches
Base Length 7 Inches
Base Height 7 Inches
Uplift Load 2,450 lbs (DF/SP)
Download Capacity 19,870 lbs
Anchor Bolt Diameter 5/8 Inch
Fasteners Required (18) 16d Nails or (8) SDS Screws
*
*
*
