Simpson 8X8 Column Base Standoff Hdg With Screws

Mfr.: Simpson Strong-Tie
Item #: I090973
Mfr. #: CBSQ88-SDS2HDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $182.81
i h h

Description

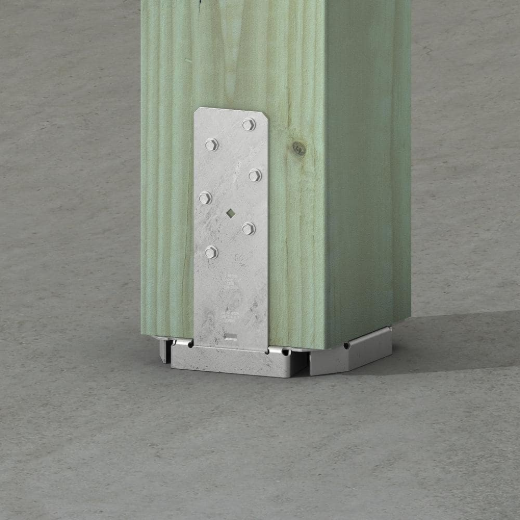

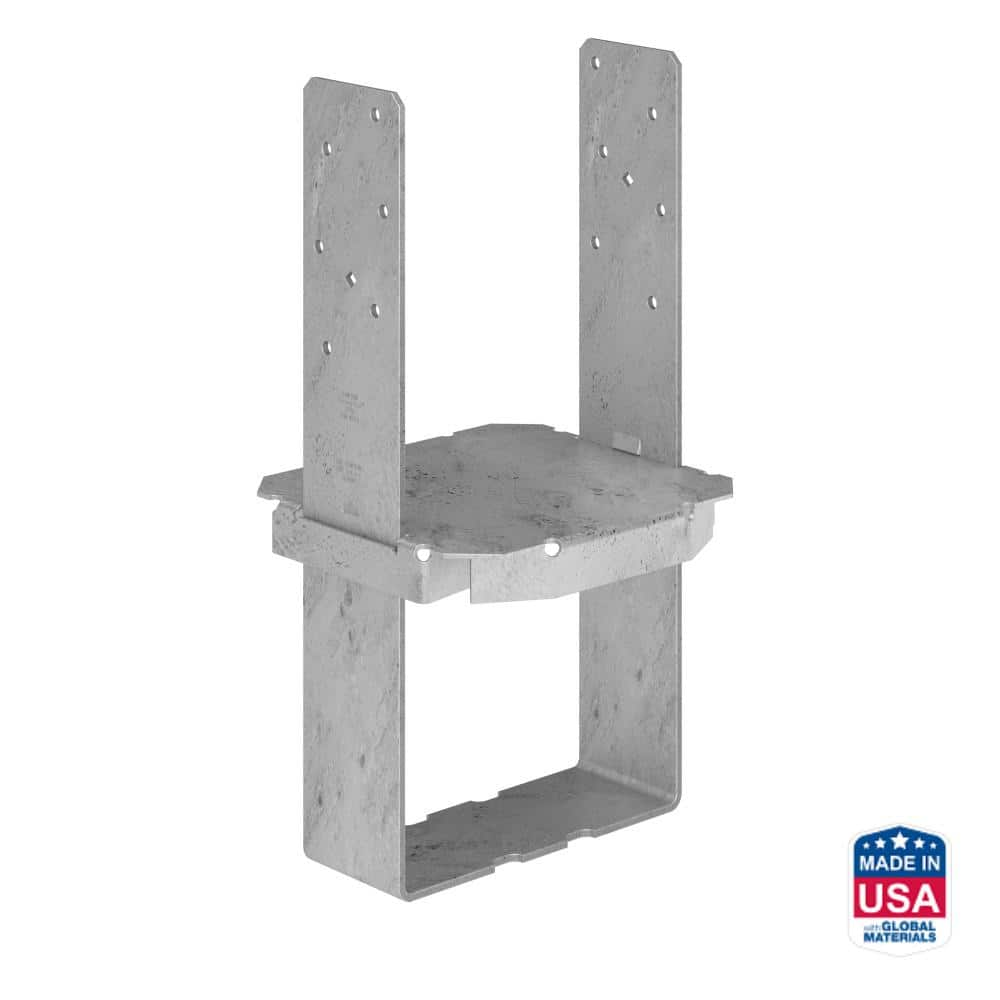

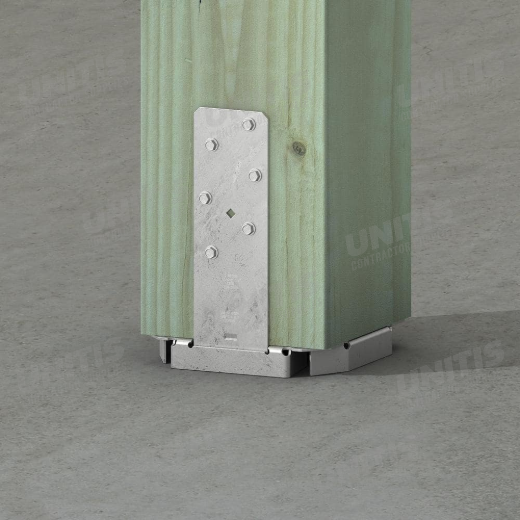

The Simpson Strong-Tie CBSQ88-SDS2HDG is a high-capacity column base designed to connect 8x8 nominal posts to concrete foundations with exceptional stability. It features a hot-dip galvanized finish for superior corrosion resistance, making it ideal for exterior applications or projects exposed to moisture. By providing a 1-inch standoff, this base prevents post-end decay and ensures compliance with building code requirements for structural supports.
  • 1 inch standoff meets code requirements
  • Hot-dip galvanized (HDG) finish
  • Fast installation with included SDS screws

Features

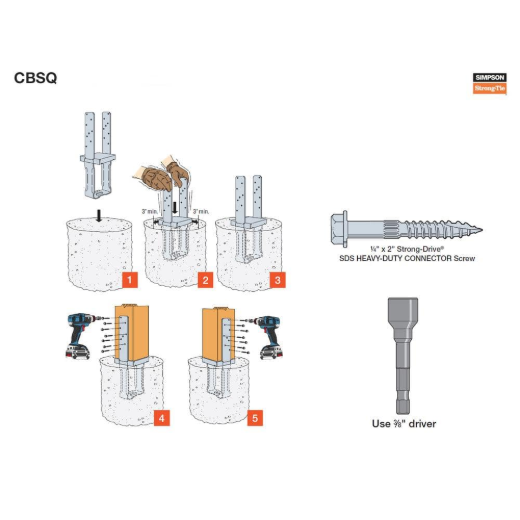

  • Includes Strong-Drive SDS Heavy-Duty Connector screws which allow for fast installation without pre-drilling.
  • Designed for wet-set concrete applications to ensure a robust and permanent foundation connection.
  • Engineered to provide a greater wood net section area than traditional bolting for increased load capacity.
  • Durable heavy-gauge steel construction for long-term structural reliability.

Includes

  • CBSQ88-SDS2HDG Column Base
  • Strong-Drive SDS Heavy-Duty Connector Screws
Products specifications
Post Size 8x8
Finish Hot-Dip Galvanized
Material Heavy-Gauge Steel
Standoff Height 1 inch
Base Gauge 12 Gauge
Strap Gauge 8 Gauge
Fastener Type Strong-Drive SDS Screws
Installation Type Wet-Set Concrete
*
*
*
