Simpson 8X8 Moment Post Base W/ Sds Zmax

Mfr.: Simpson Strong-Tie
Item #: I091022
Mfr. #: MPB88Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $363.46
i h h

Description

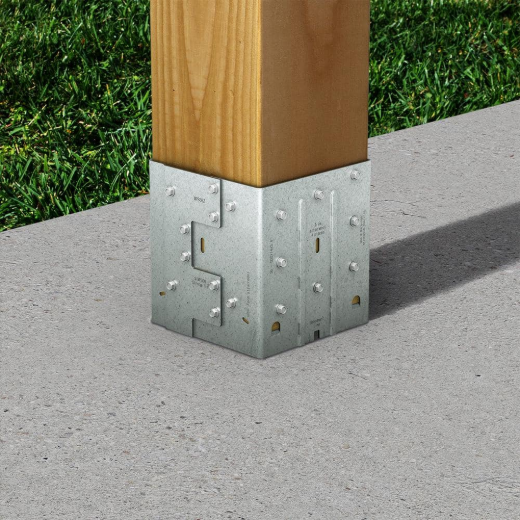

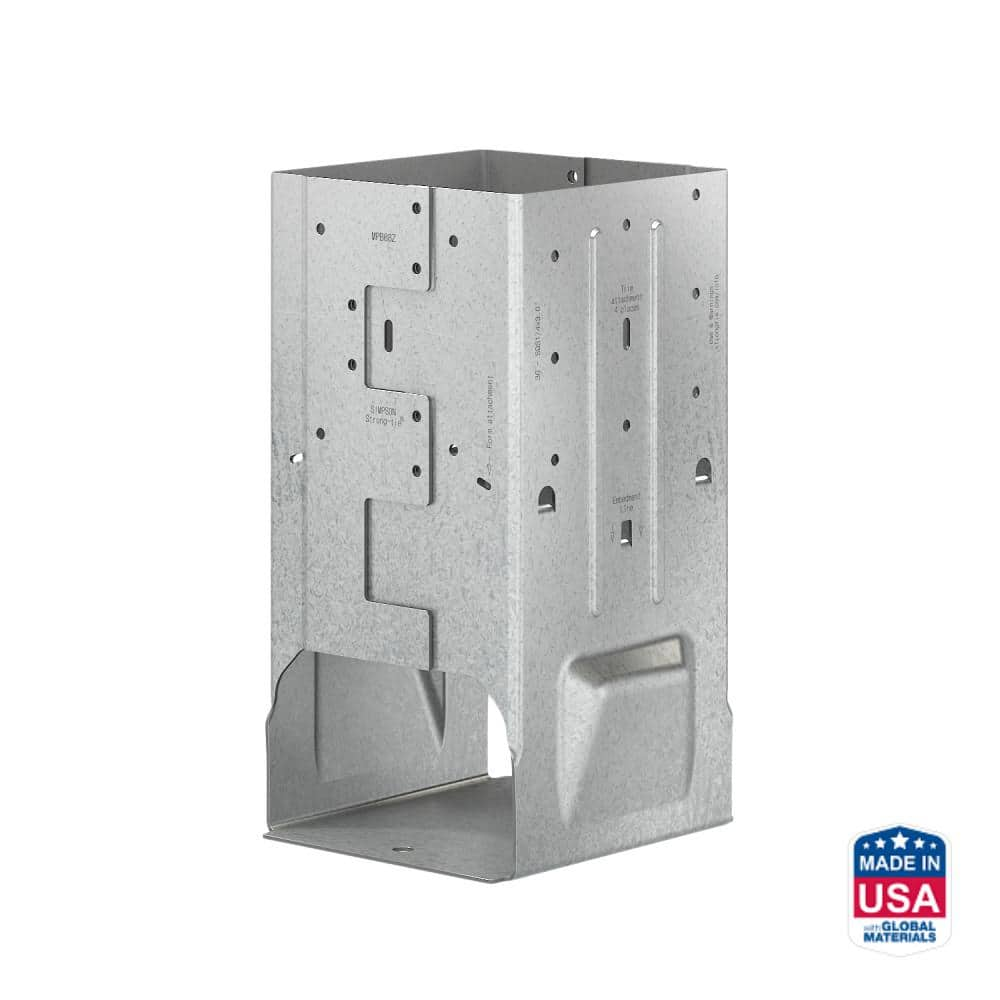

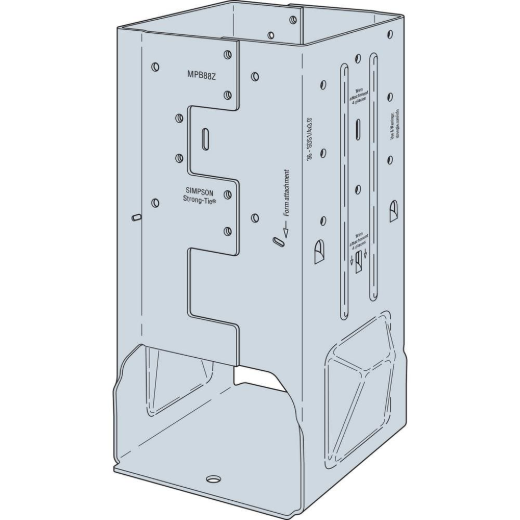

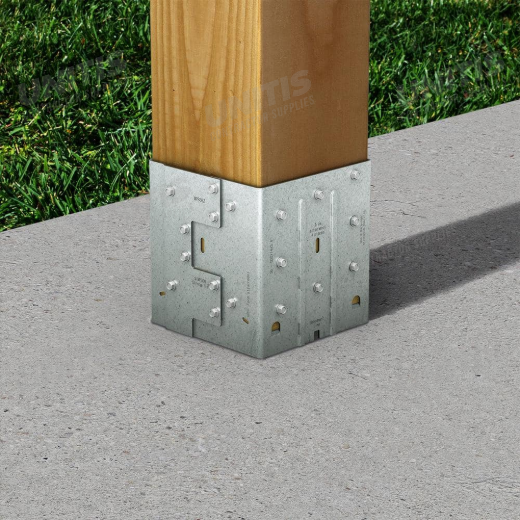

The Simpson Strong-Tie MPB88Z is an innovative one-piece moment post base engineered to provide superior rotation resistance for 8x8 wood columns and posts. Its unique sleeve design encapsulates the post, effectively resisting lateral loads at the top and reducing the need for additional bracing in structures like carports and decks. This off-the-shelf solution eliminates the time and expense of custom-fabricated parts while ensuring professional-grade structural stability. The ZMAX galvanization offers enhanced corrosion protection, making it ideal for both exterior and treated-wood applications.
  • Integrated 1 in. post standoff to prevent rot
  • Innovative overlapping sleeve design for rotation resistance
  • ZMAX corrosion-resistant galvanized finish

Features

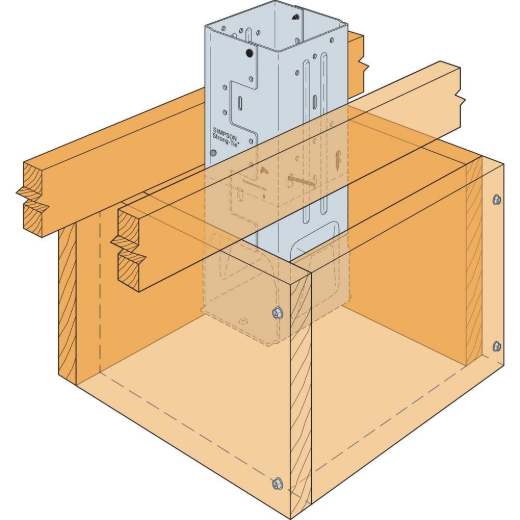

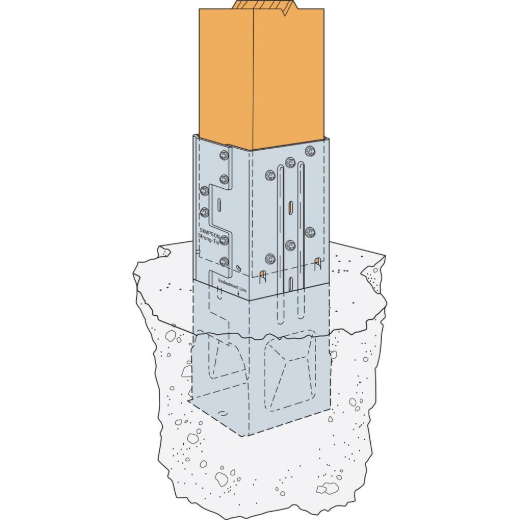

  • Stamped indicators and internal tabs identify required concrete embedment depth
  • Strategically placed holes simplify installation and allow for template attachment
  • Optional obround holes included for easy attachment of decorative trim material
  • Additional weep holes at the embedment line allow standing water to exit

Includes

  • (1) 8x8 Moment Post Base
  • Strong-Drive SDS Heavy-Duty Connector screws
Products specifications
Material 12-Gauge Steel
Finish ZMAX Galvanized
Post Size 8x8 Nominal
Base Width 7-9/16 inch
Base Height 7-1/4 inch
Base Depth 7-1/4 inch
Standoff Height 1 inch
Fasteners Included Yes (SDS Screws)
*
*
*
