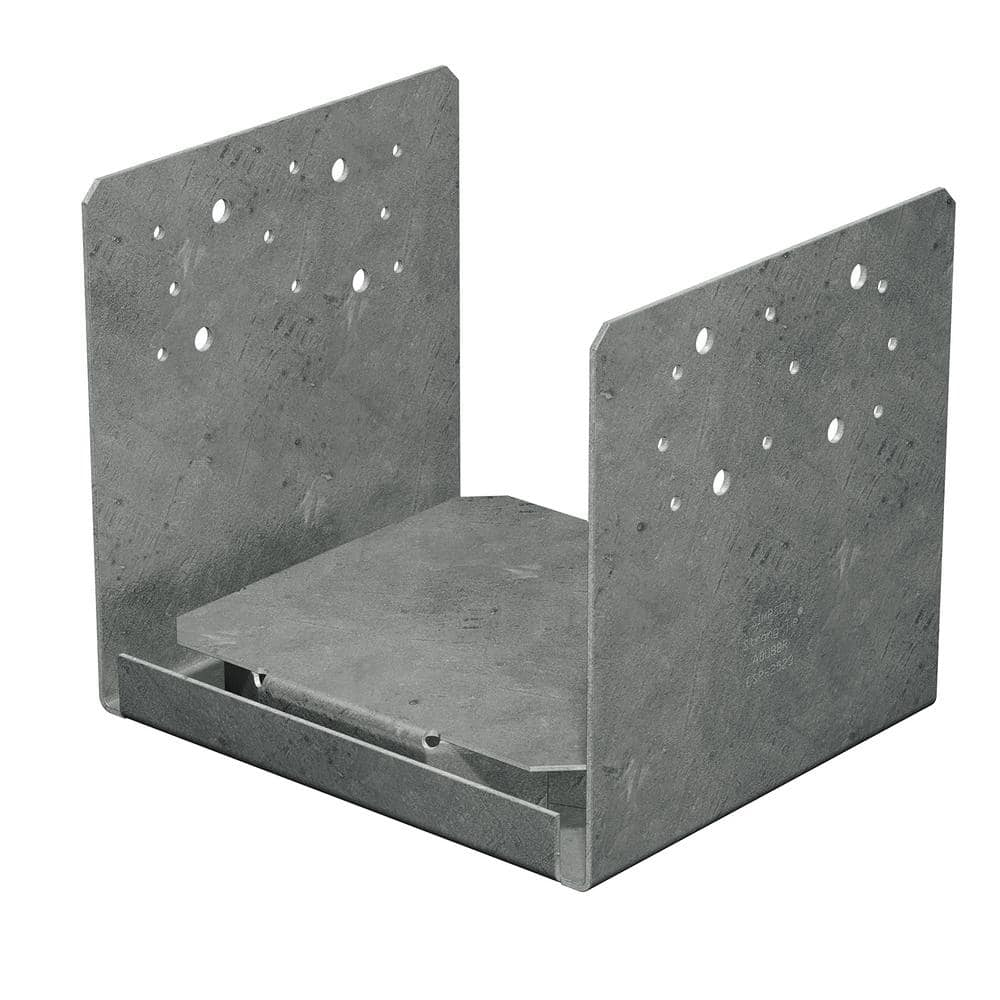

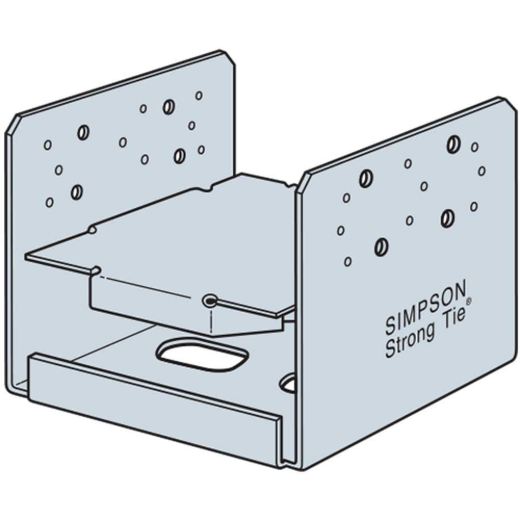

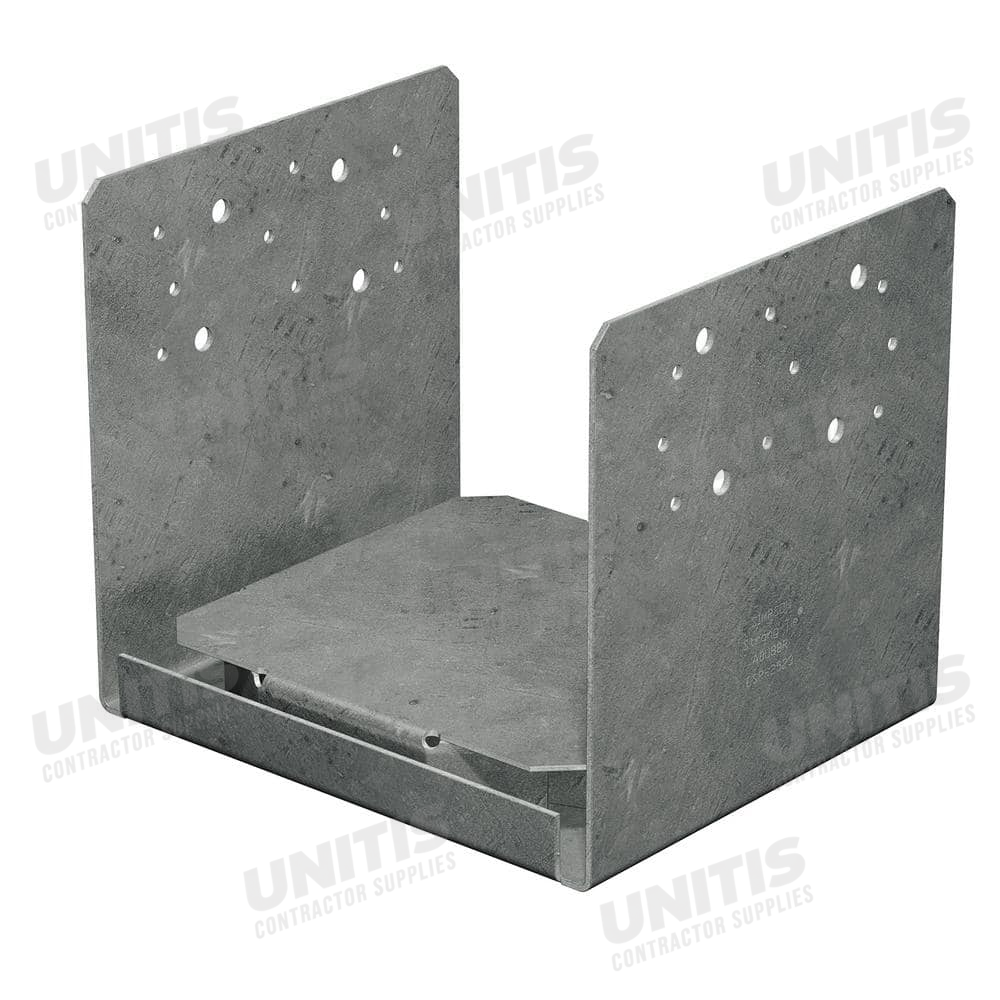

Simpson 8x8 Rough Adjustable Post Base Hdg

Mfr.: Simpson Strong-Tie
Item #: I090899
Mfr. #: ABU88RHDG
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $189.26
i h h

Description

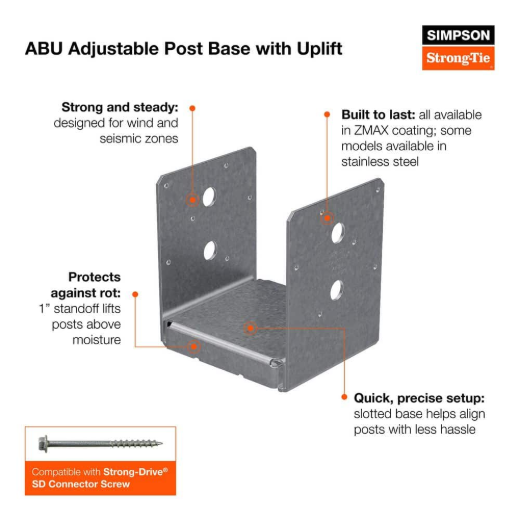

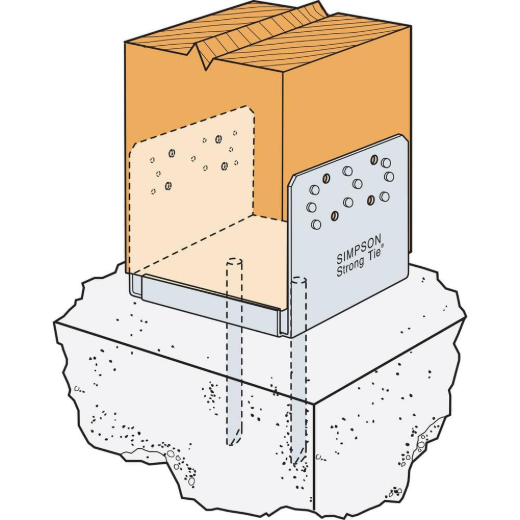

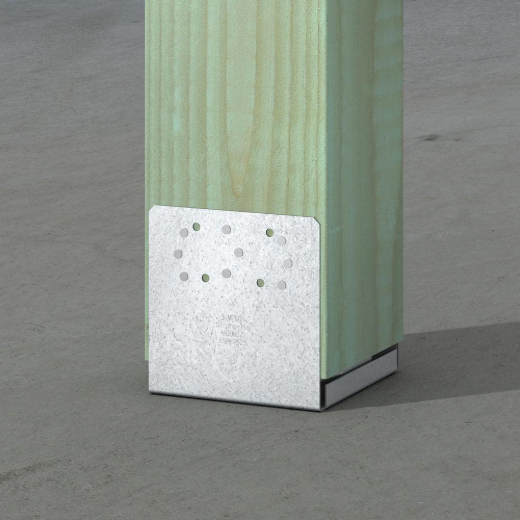

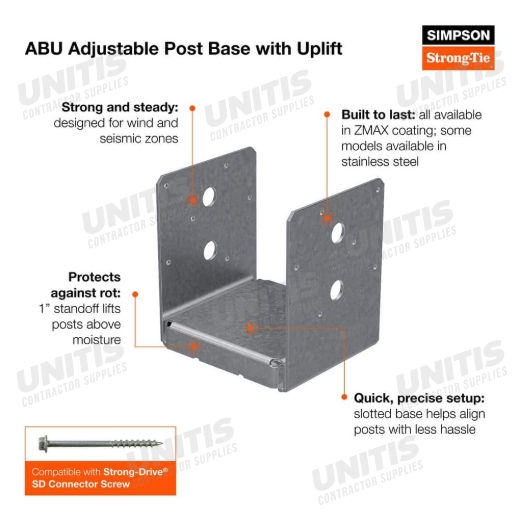

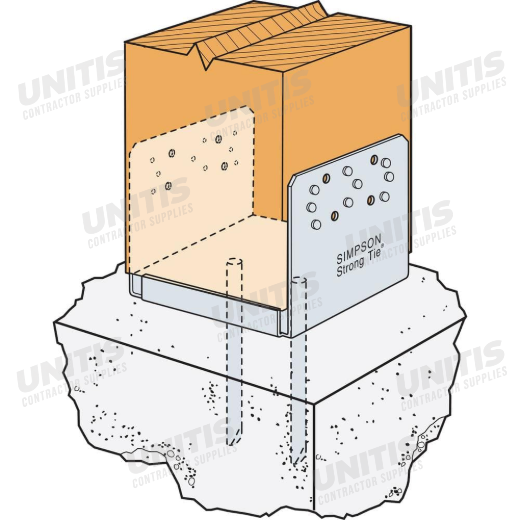

The Simpson Strong-Tie ABU88RHDG is a high-capacity adjustable post base designed to provide a secure and durable connection between rough-cut 8x8 wood posts and concrete foundations. It features a code-required 1-inch standoff that elevates the post to prevent moisture-induced rot, significantly extending the life of the structure. This heavy-duty connector is engineered with a slotted base to allow for precise alignment during installation, making it an ideal choice for decks, patio covers, and other outdoor projects. The hot-dip galvanized finish ensures superior corrosion resistance in harsh environments.
  • Hot-Dip Galvanized Coating

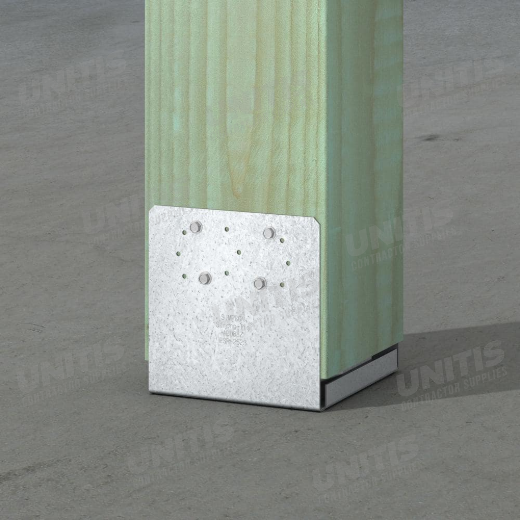

  • 1-Inch Integrated Standoff
  • Slotted Base for Adjustability

Features

  • Specifically designed for 8 inch x 8 inch rough-cut lumber.
  • Provides increased uplift resistance for wind loads.
  • Heavy-duty steel construction for high-capacity.
  • Meets code for posts exposed to weather.

Includes

  • ABU88RHDG Adjustable Post Base
  • Integrated Standoff Plate
Products specifications
Material Steel
Finish Hot-Dip Galvanized
Post Size 8x8 Rough (Actual 8 inch x 8 inch)
Base Gauge 14 Gauge
Strap Gauge 10 Gauge
Standoff Height 1 Inch

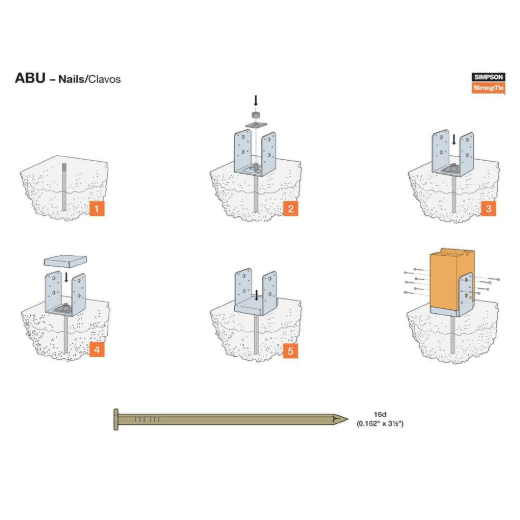

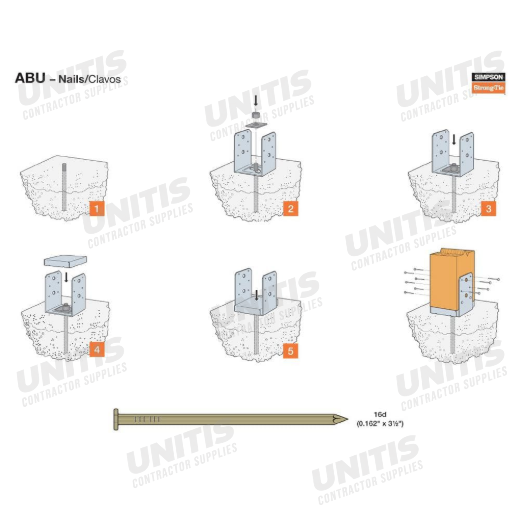

Nails Required (18) 0.162 inch x 3-1/2 inch
Optional SDS Screws (8) 1/4 inch x 3 inch SDS Screws
Anchor Bolt Size (2) 5/8 inch Diameter
*
*
*
