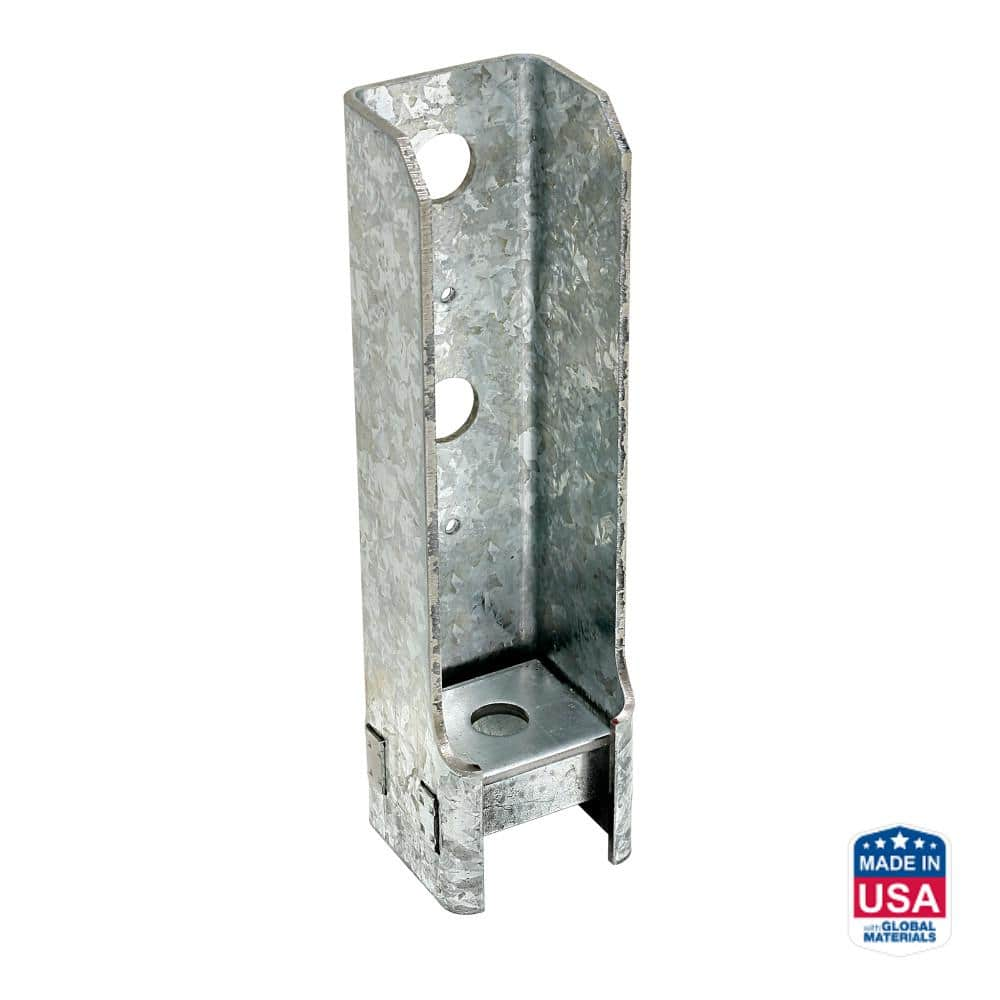

Simpson 9-3/8In Bolted Holdown

Mfr.: Simpson Strong-Tie
Item #: I093061
Mfr. #: HD5B
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $50.09
i h h

Description

The Simpson Strong-Tie HD5B bolted holdown is engineered to provide low-deflection performance for intermediate-load-range shearwalls, braced-wall panels, and lateral applications. Its unique seat design minimizes deflection under load, while the self-jigging feature ensures code-required minimum bolt distances are met. This holdown is suitable for both vertical and horizontal installations, offering flexibility for various structural needs. It can be installed directly on the sill plate or raised above it, providing a secure connection for enhanced structural stability.
  • Low-deflection performance
  • Self-jigging design

Features

  • Tested in accordance with ICC-ES's AC 155 acceptance criteria.
  • Unique seat design minimizes deflection under load.
  • Suitable for vertical and horizontal applications.

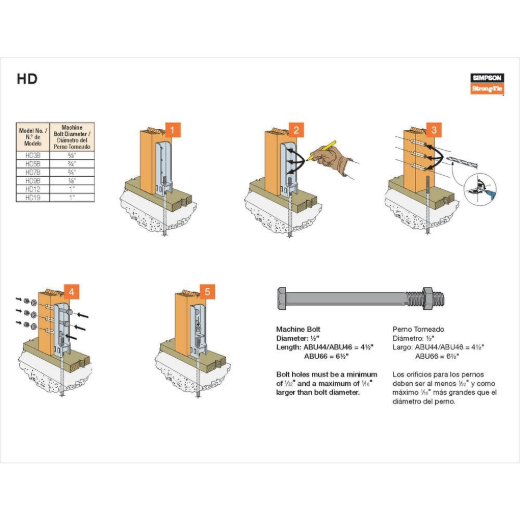

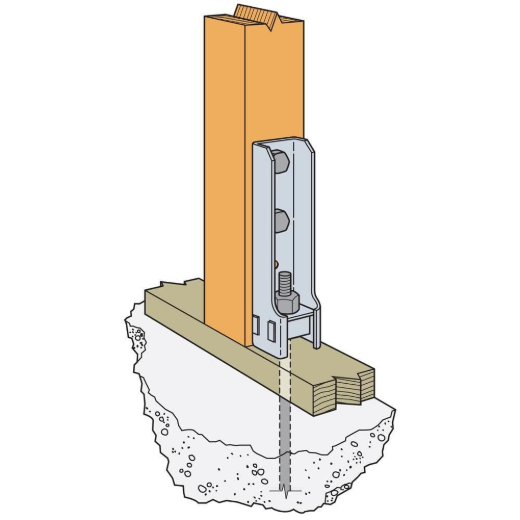

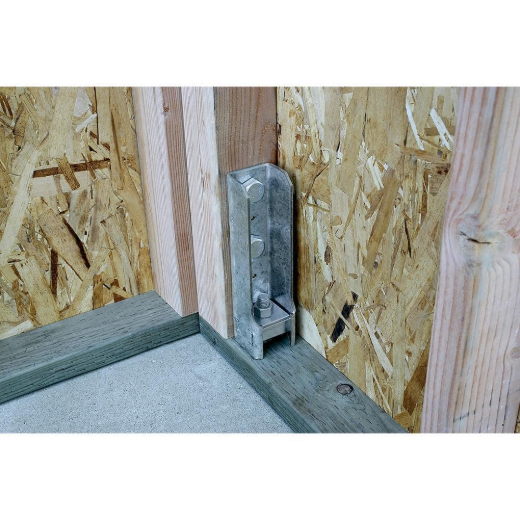

  • Can be installed directly on the sill plate or raised above it.
  • Designed for intermediate-load-range shearwalls and lateral applications.

Includes

  • 1x HD5B Bolted Holdown (G90 Galvanized)

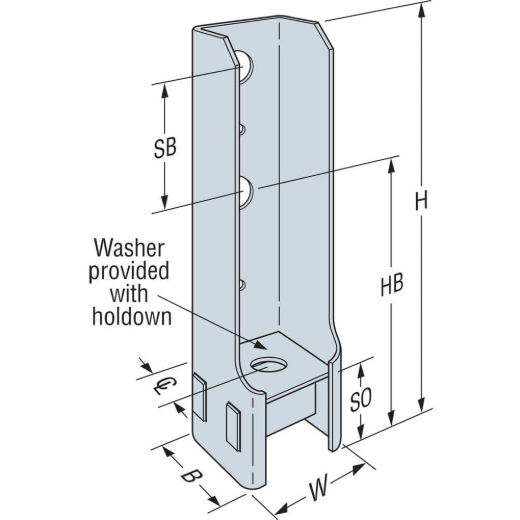

Products specifications
finish G90 Galvanized
height 9-3/8 inch
fasteners_required (2) 3/4in Mch Blts, (1) 5/8in Conc Anc
for_treated_lumber No
material Carbon Steel
thickness 10 Gauge
*
*
*
