  • Simpson 9-5/16 inch 20-Gauge Strap Tie

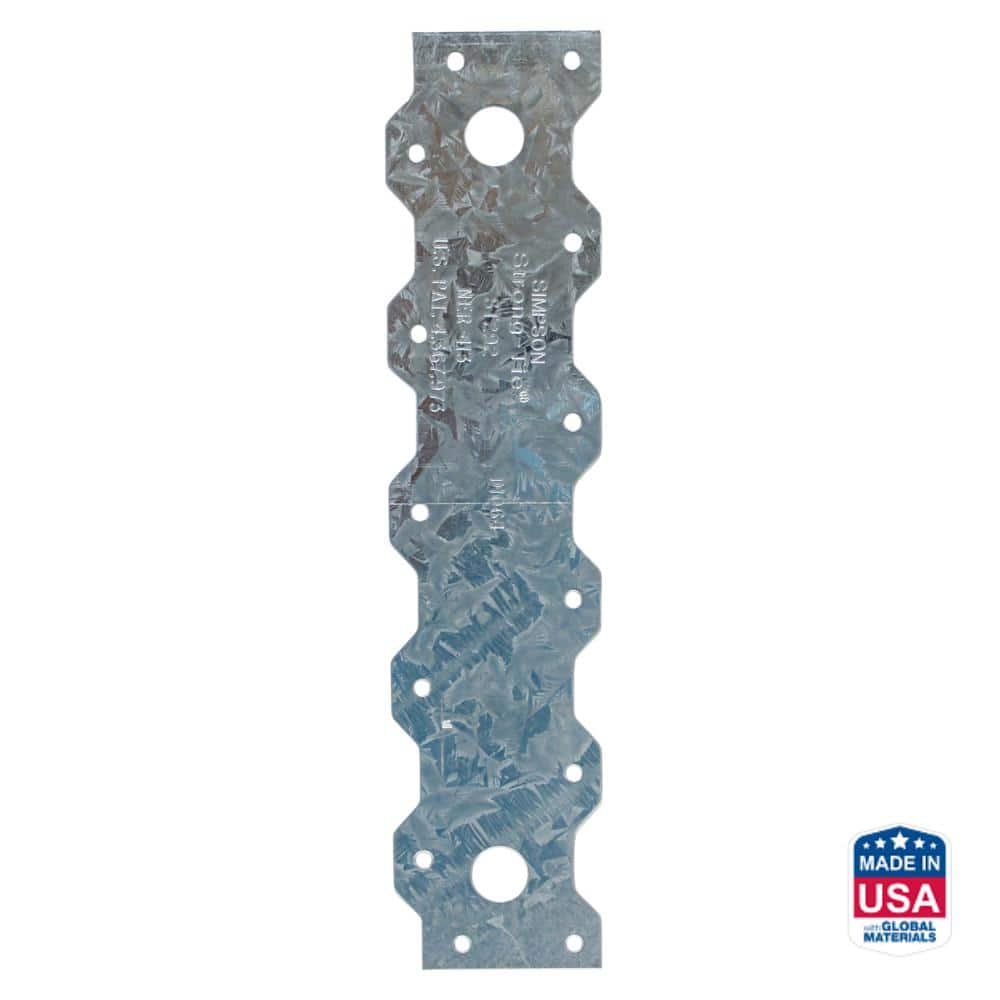

Simpson 9-5/16 inch 20-Gauge Strap Tie

Mfr.: Simpson Strong-Tie
Item #: I090872
Mfr. #: ST292
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $2.43
i h h

Description

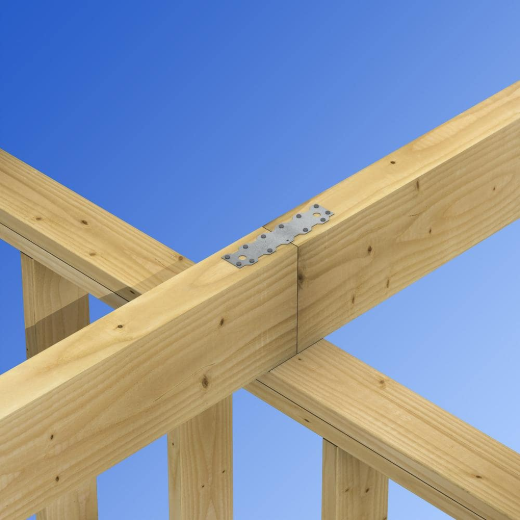

The Simpson Strong-Tie ST292 is an economical, load-rated strap tie designed to effectively resist tension loads in various wood construction applications. It is specifically engineered for use where top or bottom plates are cut, at wall intersections, and as ridge ties to ensure structural integrity. This 20-gauge steel strap comes precut for rapid installation and features a staggered nail pattern to significantly minimize the risk of wood splitting.
  • G90 Galvanized Coating
  • Tension Load Rated

Features

  • Staggered nail pattern reduces potential for wood splitting during installation.
  • Precut lengths allow for quick and optimal performance on the jobsite.
  • Designed for installation on the edge of 2x lumber members.
  • High-quality carbon steel construction provides reliable structural reinforcement.

Includes

  • (1) ST292 20-Gauge Strap Tie
Products specifications
Model Number ST292
Product Series ST Strap Ties
Length 9-5/16 inch
Width 2-1/16 inch
Thickness 20 Gauge
Material Carbon Steel
Finish G90 Galvanized
Fasteners Required (12) 16d Common Nails
*
*
*
