Simpson 9 X 11In Shelf Bracket Vertical

Mfr.: Simpson Strong-Tie
Item #: I093630
Mfr. #: SBV
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $16.87
i h h

Description

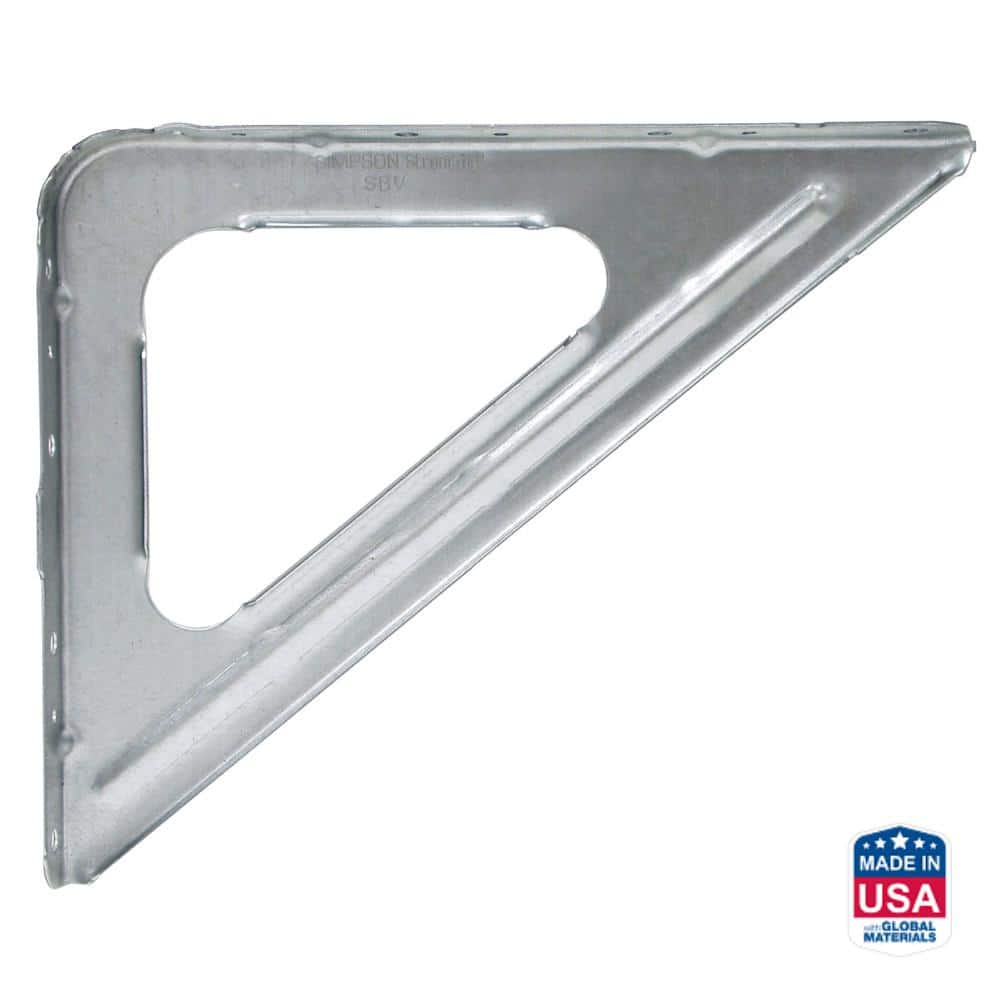

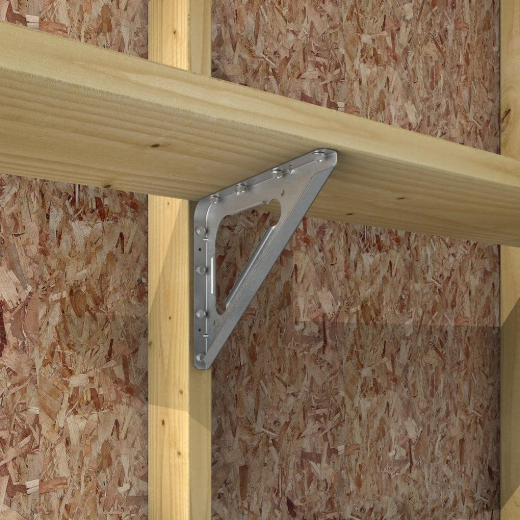

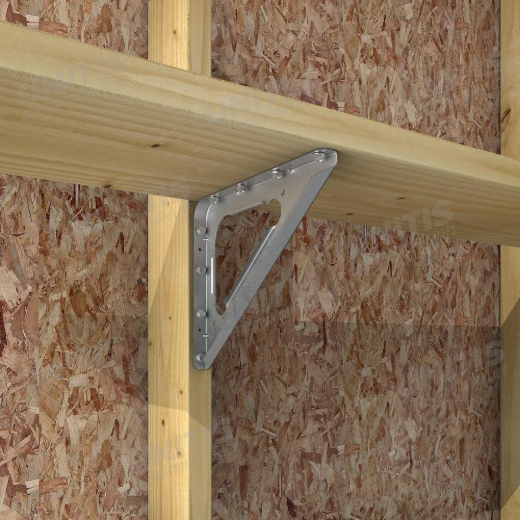

The Simpson Strong-Tie SBV Shelf Bracket Vertical is designed to reinforce the connection between a vertical wall and a horizontal surface, providing essential structural support and functionality for various applications such as shelving, counters, and window ledges. This economical bracket offers versatility with its reversible design, capable of supporting shelves with nominal depths of 10 or 12 inches, and accommodating any thickness. Its construction ensures durability and reliable performance for your projects.
  • Reinforces wall-to-surface connections
  • Supports shelves, counters, and ledges

Features

  • Approved for installation with Strong-Drive SDS Heavy-Duty Connector screws.

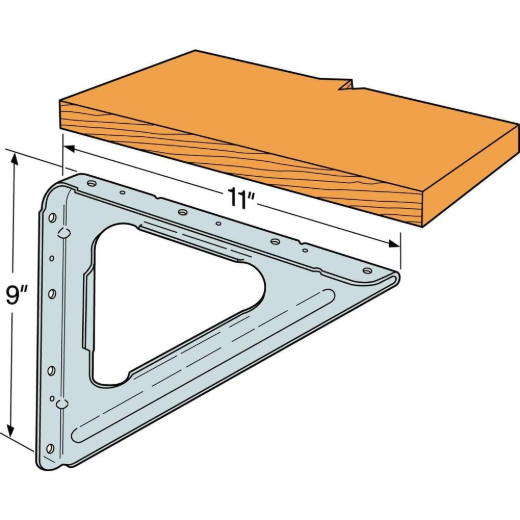

  • Reversible design to support up to a 12 inch overhang.
  • Reversible for nominal 10 inch or 12 inch shelves of any thickness.
  • Strategically placed nail holes provided to secure item to bracket.

Includes

  • (1) Shelf Bracket Vertical
Products specifications

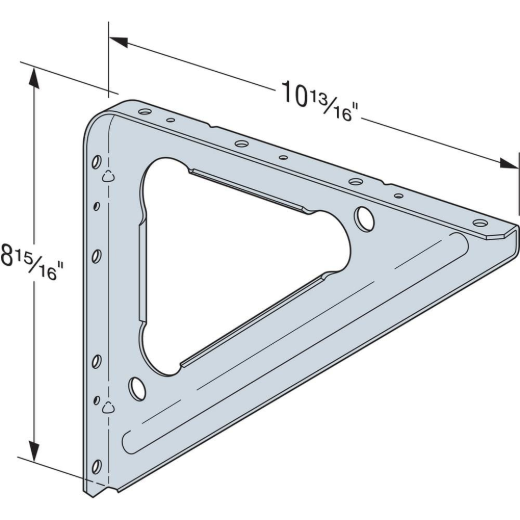

height 9-15/16 inch
width 10-13/16 inch
thickness 16 Gauge
finish G90 Galvanized
fasteners required (4) 1/4 inch x 2 inch SDS
*
*
*
