  • Simpson 9In Reinforcing Angle Zmax

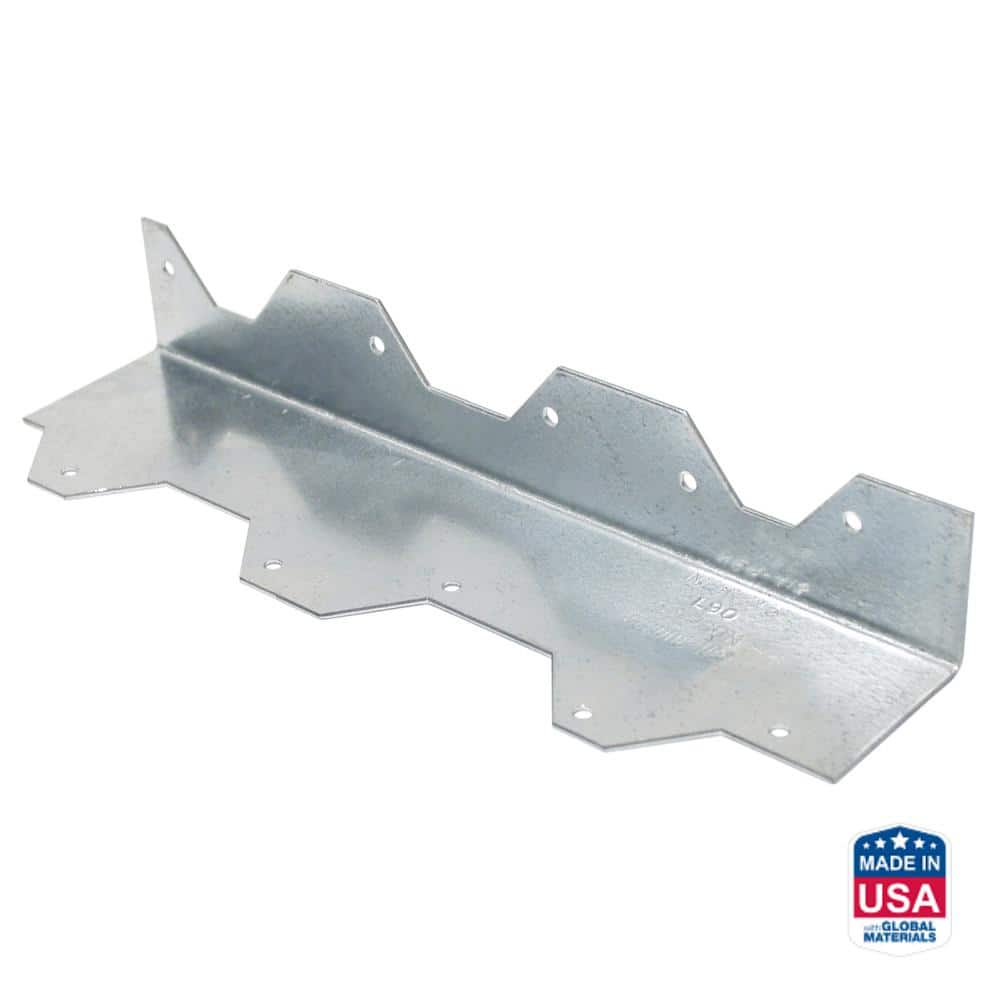

Simpson 9In Reinforcing Angle Zmax

Mfr.: Simpson Strong-Tie
Item #: I093203
Mfr. #: L90Z
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $7.49
i h h

Description

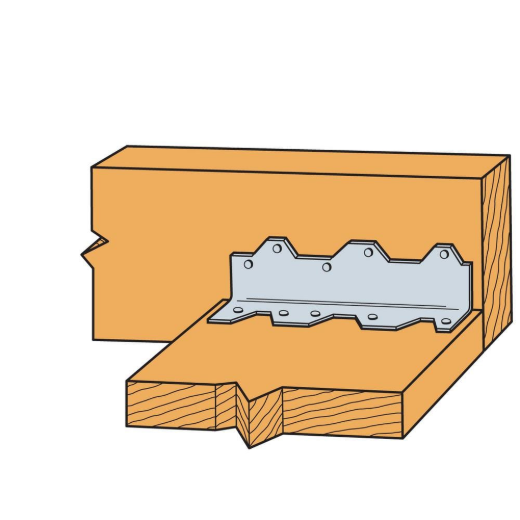

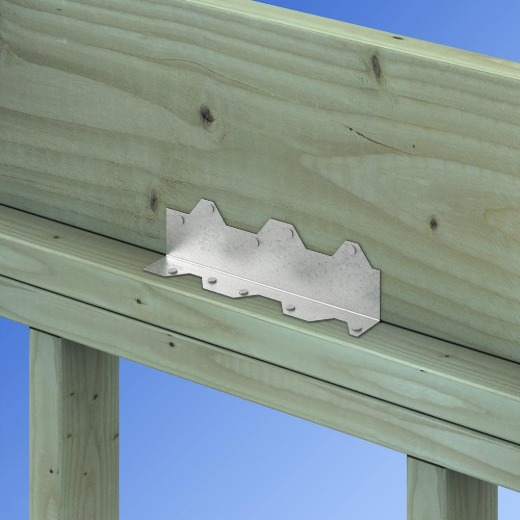

The Simpson Strong-Tie L90Z is a heavy-duty, L-shaped reinforcing angle designed to provide superior strength, durability, and corrosion resistance for 90-degree connections in wood and cold-formed steel framing. Manufactured from 16-gauge steel with a ZMAX hot-dip galvanized coating, this angle bracket offers enhanced sacrificial protection, making it ideal for exterior applications, decks, and trusses. Its well-defined fastener locations and staggered nail pattern reduce wood splitting while ensuring consistent, reliable connections, simplifying installation and boosting structural integrity.
  • ZMAX Galvanized Finish
  • 16-Gauge Steel Construction

Features

  • Load rated for wood and cold-formed steel applications.
  • Staggered nail pattern minimizes splitting and optimizes fastener placement.
  • Pre-punched, well-defined fastener locations for consistent installation.
  • Engineered alternative to field-built clip angles for improved reliability.

Includes

  • 1 L-shaped angle bracket

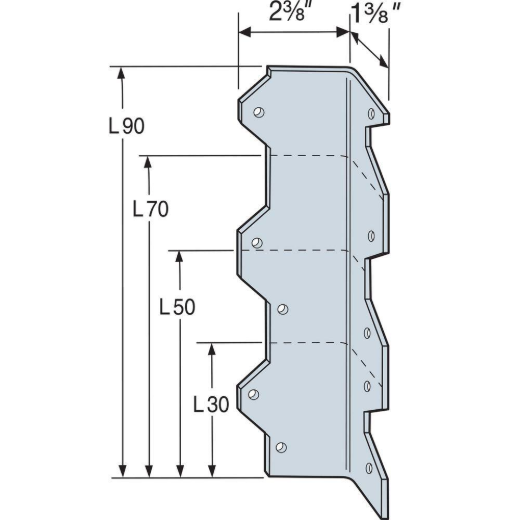

Products specifications
Length 9 inch
Gauge 16 ga.
Coating ZMAX
Material Steel
Shape L angle
Fasteners 10x 10d HDG nails or #9x1.5 inch SD screws
*
*
*
