Simpson Abl Series Anchor Bolt Locator

Mfr.: Simpson Strong-Tie
Item #: I092056
Mfr. #: ABL4-1
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $7.50
i h h

Description

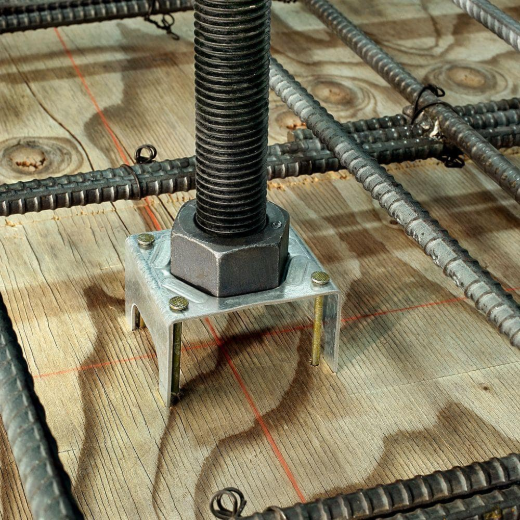

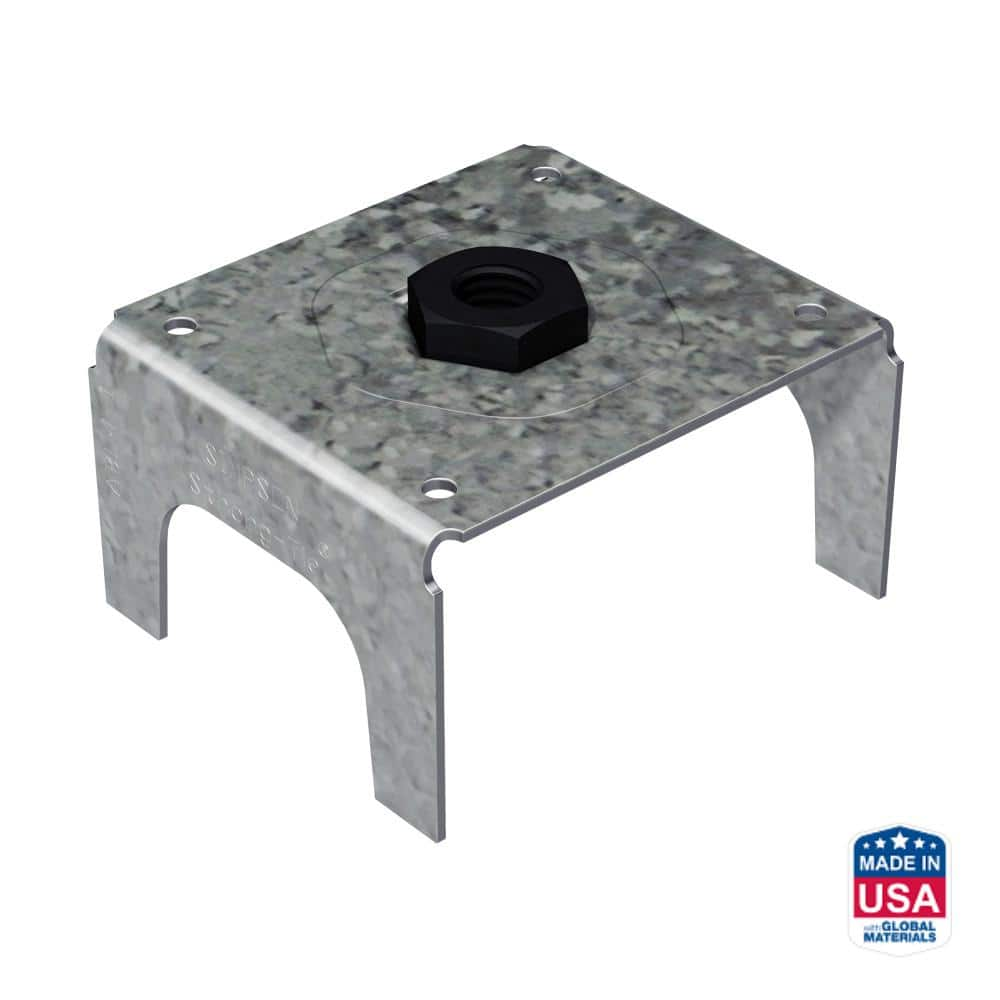

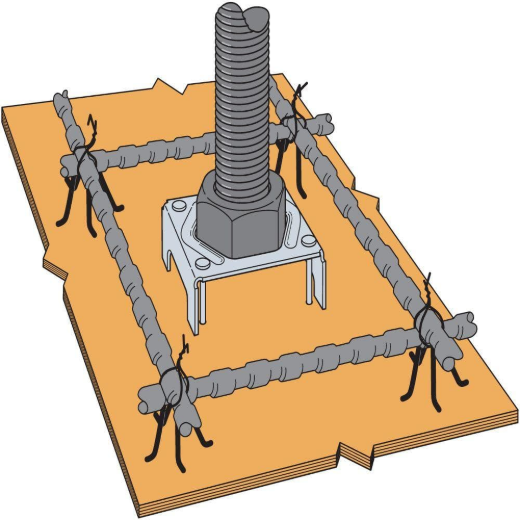

The Simpson Strong-Tie ABL series anchor bolt locator provides accurate and secure placement of anchor bolts on concrete-deck forms before concrete is poured. Its innovative design features a heavy hex nut attached to a pre-formed steel chair, which streamlines the installation process by eliminating the need for an additional nut on the bottom of the anchor bolt. This locator ensures structural integrity by maintaining a 1-inch standoff from the deck.
  • Pre-formed steel chair for optimal concrete flow
  • Integrated heavy hex nut for secure bolt placement

Features

  • Designed for optimum concrete flow around the bolt
  • Meets 1-inch code requirement for concrete standoff
  • Installed with nails or screws for secure form attachment

Includes

  • One Anchor Bolt Locator stand with pre-attached nut
Products specifications
Material Carbon Steel
Standoff Height 1 inch
Bolt Diameter 1/2 inch
Chair Material 14 ga. steel
Installation Method Nails or screws
*
*
*
